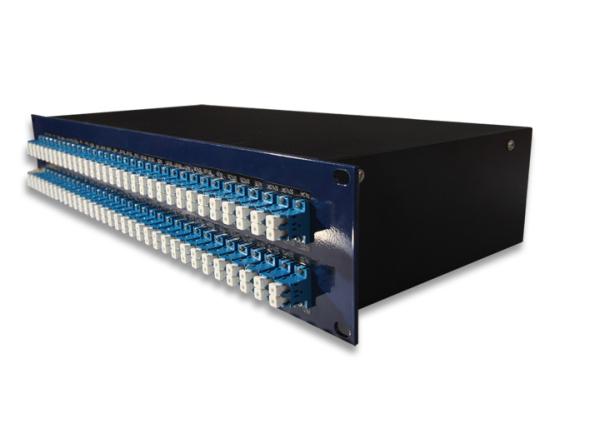

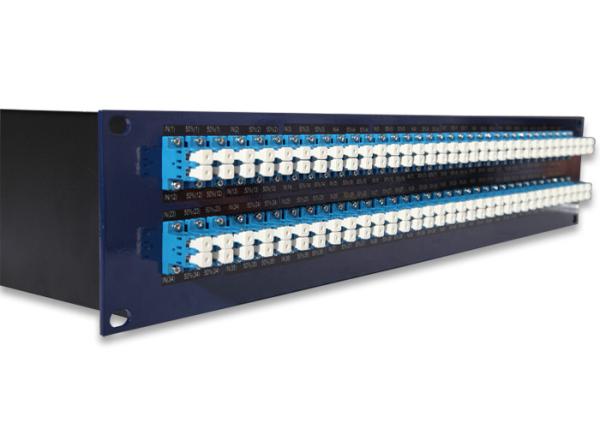

1x32 and 1x64 PLC splitter in 1U & 2U patch panel For CATV Networks
1x32 and 1x64 PLC splitter in 1U & 2U patch panel For CATV Networks
1x32 and 1x64 PLC splitter in 1U & 2U patch panel For CATV Networks
1x32 and 1x64 PLC splitter in 1U & 2U patch panel For CATV Networks
1x32 and 1x64 PLC splitter in 1U & 2U patch panel For CATV Networks
1x32 and 1x64 PLC splitter in 1U & 2U patch panel For CATV Networks
Specifications
Brand Name :
Geehe or OEM or ODM
Model Number :
Fiber Optic PLC Splitter
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
10 PCS
Price :
Price Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
7-10 days
Packaging Details :
Blister Box or Carton Box
Product :
Fiber optic patch panel
Fiber Type :
Corning G657A or G652D
Configuration :
1X32~2X64
Height Units :
1U / 2U
Insertion Loss :
15.7~16.7dB, 20.5~21dB
Return Loss :
UPC≥55, APC≥65
Uniformity :
1.5 / 2.0 dB
Maximum Input PowerLength :
250mW
Input Connector :
FC/LC/SC/ST/MPO, or Customized
Output Conector :
FC/LC/SC/ST/MPO, or Customized
Operation Wavelength :
1260~1650
Port Wavelength Range :
1310±20/1490±10/1550±20
Operating Temperature :
-40~+85 ° C
Storage Temperature :
-40~+85 ° C
Description

1x32 and 1x64 PLC splitter in 1U & 2U patch panel For CATV Networks

Description
The GEEHE fiber optic splice boxes have a solid and compact design and ensure the easy transition between fiber optic installation cables to duplex or breakout cables. The simple installation and optimal protection of the glass fibers in the full metal housing are just some of the advantages of these splice boxes.
They are ready to splice and already contain splice cassettes, pigtails separated according to IEC 60304 and the associated couplings.

Features
High uniformity and reliability
Wide operating wavelength 1260~1650nm
Low insertion and return loss
Built with Corning G.657 Grade A optical
Low Polarization Dependent Loss(PDL)
Operating temperature -40°C to 85°C

Applications
FTTH deployments
CATV networks
Access/PON distributions
LAN,WAN,Metro

Certification and Compliance
GR-1209-CORE Requirements for Passive Optical Components.
GR-1221-CORE Reliability Assurance Requiremnts for Passive Optical Components.
GR-326-CORE Requirements for Single Mode Optical Connectors and Jumpers Assemblies.
TIA-604 Fiber Optic Connector Intermateability Standard.
ROHS Directive on Restriction of Hazardous Substances

Regulatory Approvals
● Telcordia GR-1209-CORE and GR-1221-CORE
● RoHS compliance





1xN/2xN PLC Splitters (without connects)

Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating wavelength (nm) 1260~1650
Port wavelength range (nm) 1310±20; 1490±10; 1550±20
Insertion loss @ 1310 nm/1550 nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
PDL @ 1310/1550 nm (dB) ≤0.3
Return loss @ 1310/1550 nm (dB) ≤55
Input power (mW) 250 max
Operating temperature (℃) -40~+85℃
Storage Temperature (℃) -40~+85℃
Fiber Type Corning G657A1


Package dimensions

1x32 and 1x64 PLC splitter in 1U & 2U patch panel For CATV Networks


1x32 and 1x64 PLC splitter in 1U & 2U patch panel For CATV Networks
