90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
Specifications
Brand Name :
Sino Cable Gland Factory
Model Number :
PG, Metric Series
Certification :
CE, ROHS, REACH, SGS, IP68
Place of Origin :
Zhejiang, China
MOQ :
500 pieces
Price :
at very competitive prices from direct factory
Payment Terms :
T/T, L/C, Western union
Supply Ability :
5000000 pieces / month
Delivery Time :
normally 5-8 days
Packaging Details :
standard export packing (special packing also available on request)
Size :
Full sizes
Protection Level :
IP68
Material :
UL-approved Nylon, 94V-2
Standard Colors :
Light-grey RAL7035, black RAL9005 (other colors also available on request)
Thread Type :
PG Thread, Metric Thread
Quality Grade :
High quality (8-15 years of long life for indoor application)
Main Advantages :
Waterproof & liquid tight, resistant to weak acid & alkaline, corrosion-resistant, UV stabilized, an
Description
Applications:
With its outstanding ability in weather resistance, strong tensile strength, high watertight & airtight performance and high security & stability, 90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads prevent cables from breakage, they are the best cable entry systems widely used for connecting and fastening flexible cables on hand-held equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, meters and instruments, etc.
Our advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our wire gland glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.
About us:
We are one of the most professional manufacturer of Cable Accessories in China. Currently we manufacture and export Cable Glands, Cable Ties, Flexible Tubes, Cable Clips & other wiring accessories. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!!
Description:
Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: 90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
Sizes available: * PG9, PG11, PG13.5, PG16, PG21, PG29.
* M16x1.5, M18x1.5, M20x1.5, M22x1.5, M25x1.5, M32x1.5.

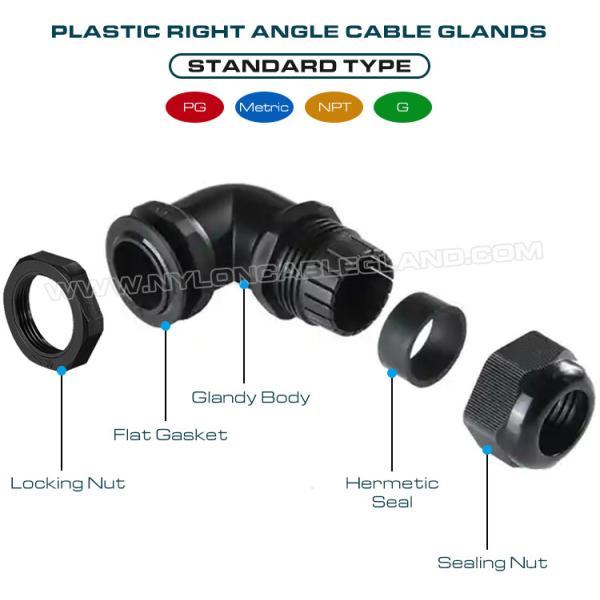

Raw material: UL-approved new Polyamide 66, flammability 94V-2 for Spiral Protector, Locknut & Body (contact us for 94V-0 material).

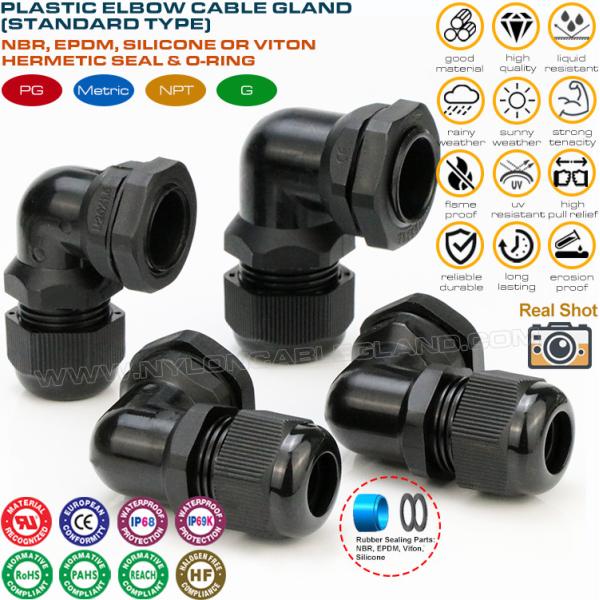

NBR rubber or Weatherproof EPDM rubber for Seal & Washer (O-ring)
Standard colors: Light-grey RAL7035, black RAL9005 (special colors can be customized according to customer's request)
Main advantages: Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong strain relief and wider clamping range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications: CE, ROHS, REACH, SGS, IP68
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the Washer / O-ring)
Thread lengths: Short threads are available
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
Quality grade: High quality can last 8-12 years of long service life for indoor applications.
OEM service: Yes, available
Supply capability: 3,000,000 pieces per month
Minimum quantity: 500 pieces
Samples available: Free samples available upon request
Delivery time: Normally 5-7 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
Export packing: 100 pieces / bag, 100pieces /color box, special packing can be customized as requested
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
90° Elbow Hermetic Cable Glands, IP68 Waterproof Right Angled Electrical Cable Glands with PG & Metric Threads
