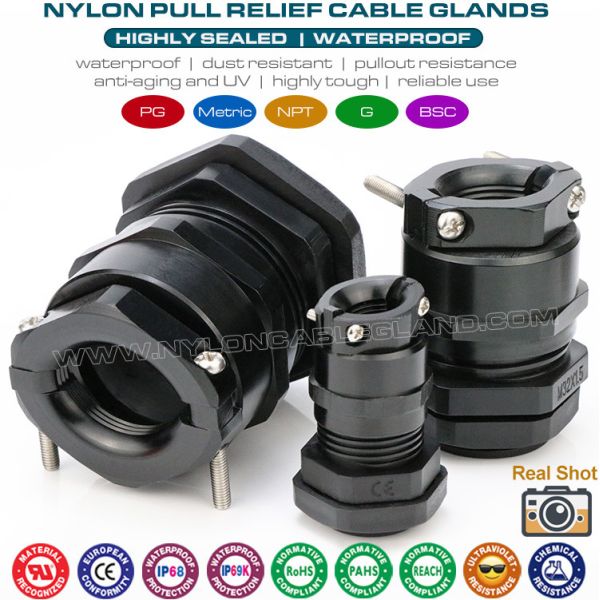

IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)
IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)
IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)
IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)
IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)
IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)
IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)
IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)
Specifications
Brand Name :
Sino Cable Gland Factory
Model Number :
PG9~PG48
Certification :
CE, ROHS, PAHS, REACH, SGS, IP68
Place of Origin :
Zhejiang, China
MOQ :
200 pieces
Price :
at very competitive prices from direct factory
Payment Terms :
T/T, L/C, Western union
Supply Ability :
3000000 pieces / month
Delivery Time :
normally 8-10 days
Packaging Details :
standard export packing (special packing also available on request)
Material :
Metallic clamp made from plastic sprayed alloy
Size :
Full sizes from PG9 to PG48
Standard Colors :
black RAL9005 (other colors also available on request)
Protection Level :
IP68
Thread Type :
PG Thread (DIN 40430)
Quality Grade :
High quality (8-15 years of long life for indoor application)
Main Advantages :
Extra resistance to pull-out
Description
Description:

Central-acting plastic cable glands with cable clamps & two pressing screws are mainly used for connecting and securing flexible cables or wires to provide an extra protection against pull-out & traction, dust, water, oil, etc. With its outstanding ability in weather resistance, wide clamping range, strong strain relief, high sealing performance, such glands are widely used in the electrical distribution boxes/ cabinets, moving machines parts, automatic control, plant engineering, etc.

Our full line waterproof cable glands (cord grips or strain reliefs) which are used to seal cable entries, keep contaminants from entering enclosures, provide strain relief and thus reduce stress on components and termination points inside enclosures.

How to use:
Mount the cable gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position, finally tighten the two pressing screws.

Our advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our cable glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples are available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.
About us:

Founded in 2005, we are one of the most professional manufacturer of cable accessories in China.

Currently we manufacture and export plastic cable joints, brass cable connectors, stainless steel cable glands, flexible tubes, pipe fittings, nylon cable ties, stainless steel cable straps, cable clips, etc.

With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us


Descriptions:

Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)
Sizes available:

* PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48
Raw material: UL-approved new Polyamide 66, flammability 94V-2 for Locknut & Body (94V-0 material is optional)
Plastic-spraying alloy for Sealing Nut with two clamping screws
NBR or weatherproof EPDM rubber for Seal & O-ring
Standard colors: Black RAL9005, special colors can be customized according to customer's request
Certifications: CE, ROHS, PAHS, REACH, SGS, IP68
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread lengths: Short thread & long thread are available
Thread system: PG: according to the standard DIN40430
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
Quality grade: High quality can last 8-12 years of long service life for indoor applications
OEM service: Yes, available
Supply capability: 2,000,000 pieces per month
Minimum quantity: 100 pieces
Samples available: Free samples available upon request
Delivery time: Normally 8-10 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F
Shipment ports: Ningbo / Shanghai
Export packing:

100 pieces / bag, 100pieces /color box, special packing can be customized as

requested

IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)

IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)

IP68 Nylon Plastic Black PG Cable Glands PG9-PG48 with Traction Relief (Strain Relief / Pull Relief)
