Specifications
Brand Name :
Sino Cable Gland Factory
Model Number :
PG & Metric Series
Certification :
CE, SGS, IP68
Place of Origin :
Zhejiang, China
MOQ :
200pcs
Price :
very competitive prices
Payment Terms :
T/T, L/C, Western union
Supply Ability :
2000000pcs / month
Delivery Time :
normally 8-10 days
Packaging Details :
standard export packing (special packing also available on request)
Material :
NBR, EPDM, FKM for sealing parts
Color :
Metallic silver
IP protection :
IP68
Advantage :
Provide an extra resistance to pull-out and high strain relief
Description
Applications areas:

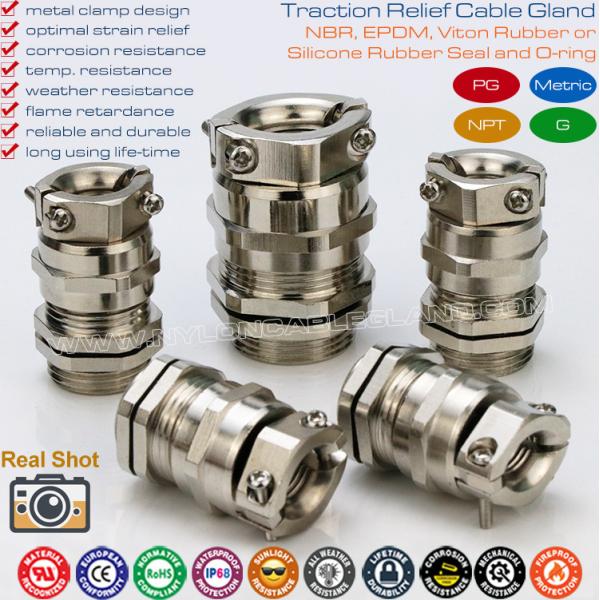

Waterproof IP68 metal cable gland PG7~PG48 / M12~M64 with strain reliever (clamping device) are mainly used for connecting and securing flexible cables or wires to provide an extra protection against pull-out & traction, dust, water, oil, etc. With its outstanding ability in weather resistance, wide clamping range, strong strain relief, high sealing performance, such glands are widely used in the electrical distribution boxes/ cabinets, moving machines parts, automatic control, plant engieering, etc.

How to use:
Mount cable gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position, finally tighten the two clamping screws.

Our advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our cable glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.
About us:
We are one of the most professional manufacturer of Cable Accessories in China. Currently we manufacture and export plastic cable glands, metal cable glands, stainless steel cable glands, corrugated tubes, pipe fittings, plastic cable ties, metal cable ties, cable clips, etc. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!


Descriptions:

Producer: OEM brand supplier
Place of origin: Zhejiang, China
Product name: Waterproof IP68 Metal Cable Gland PG7~PG48 / M12~M64 with Strain Reliever (Clamping Device)
Sizes available:

* PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48.
* M12, M14, M16, M18, M20, M22, M24, M25, M27, M30, M32, M36, M37, M40, M42, M47, M48, M50, M54, M56, M60, M63, M64.
Raw material: Nickel-plated Brass for metallic parts
UL-approved nylon 66, 94V-2 for clamping claw
NBR for sealing rings (also available in weatherproof EPDM rubber or Silicone rubber)
Standard colors: Metallic color
Main advantages: Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications: CE, ROHS, REACH, IP68
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread lengths: Short thread & long thread are available
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
OEM service: Yes, available
Supply capability: 2,000,000 pieces per month
Minimum quantity: 200 pieces
Samples available: Free samples available upon request
Delivery time: Normally 8-10 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air
Export packing: 100 pieces / bag, 50pieces /color box, special packing can be customized as requested

Waterproof IP68 Metal Cable Gland PG7~PG48 / M12~M64 with Strain Reliever (Clamping Device)

Waterproof IP68 Metal Cable Gland PG7~PG48 / M12~M64 with Strain Reliever (Clamping Device)

Waterproof IP68 Metal Cable Gland PG7~PG48 / M12~M64 with Strain Reliever (Clamping Device)

Waterproof IP68 Metal Cable Gland PG7~PG48 / M12~M64 with Strain Reliever (Clamping Device)

Waterproof IP68 Metal Cable Gland PG7~PG48 / M12~M64 with Strain Reliever (Clamping Device)
