Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Specifications
Brand Name :
Sino Cable Gland Factory or OEM
Model Number :
NCG series
Certification :
CE, ROHS, PAHS, REACH, IP68, IP69K, UV, HF
Place of Origin :
Zhejiang, China
MOQ :
500 pieces
Price :
at most favorable prices from direct factory
Payment Terms :
T/T, L/C, Western union
Supply Ability :
5,000,000 pieces each month
Delivery Time :
normally 5-8 days
Packaging Details :
standard packing (special packing is also available on request)
Model :
NCG-M20S-12
Protection :
IP68, IP69K
Material :
UL-approved PA66, 94V-2 (94V-0 is optional)
Standard colors :
Light-grey RAL7035, black RAL9005 (other colors also available on request)
Thread standard :
According to European standard EN60423
Quality grade :
High quality (6-12 years of long life for indoor application)
Features :
Resistant to weather, water, weak acid, alkaline, corrosion & ultraviolet rays.
Description
Product Description:
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box is a kind of mechanical cable entry device and can be constructed from metallic materials (mainly brass or stainless steel) or non-metallic materials (mainly polyamide, polymer, synthetic or PP). They are used throughout a number of industries in conjunction with cable and wiring used in electrical instrumentation and automation systems.

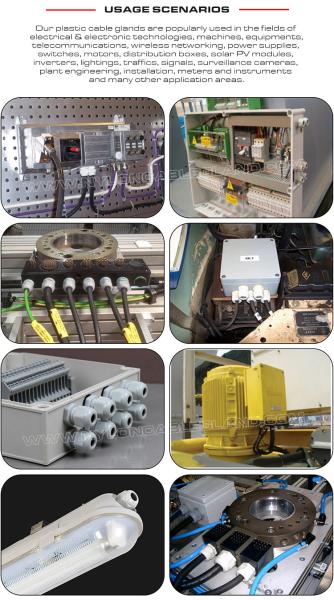

Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box may be used as sealing and termination devices to ensure that the characteristics of the enclosure which the cable enters can be maintained adequately. Having the features of wide clamping range, high strain relief, waterproof protection and anti-vibration mechanism, they are popularly applicable for solar, wind, oil & gas, pumps, filters, fans, transducers, sensors, scales, flow meters, lighting, motors, encoders, power supplies, antennas, harnesses for pool & spa, car wash, dairy, food & beverage, pharmaceutical, petro, telecom, automotive, traffic, robotics, medical, packaging, automation, marine and many more industries.
Information:
Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Available sizes: M20x1.5 (cable range: 6-12mm)
Materials: plastic parts: UL-polyamide 66, 94V-2 (contact us for 94V-0 material)
sealing parts: FPM (available in EPDM, Silicone or NBR)
Colors: grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, red RAL3031, white RAL9010, special colors can be customized according to customer's request)
Certifications: CE, ROHS, PAHS, REACH, IP68, IP69K, UV, Halogen Free
IP protection: IP68 / IP69K (when the cable diameter is within the clamping range and assemble the O-ring)
Thread length: available in short connecting thread & long connecting thread
Thread system: according to the european standard EN60423
Working temperature:

static: -40℃ to +100℃, short-term: +120℃.
dynamic: -20℃ to +80℃, short-term: 100℃.
Quality grade: high quality version can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications
OEM services: yes, available
Supply capability: 5,000,000 pieces each month
Minimum quantity: 500 pieces
Samples available: free samples are available upon request
Delivery time: normally 5-8 days after confirmation of orders
Payment terms: T/T, Western Union, L/C at sight
Shipment terms: shipped by EMS / TNT / DHL / UPS / FEDEX, by sea / by air
Export packing:

100 pieces per bag + 100 pieces per color box,
special packing can be customized as requested
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction BoxPlastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box
