Specifications
Brand Name :
Yueqing Sino Cable Gland Factory
Model Number :
PG & Metric
Certification :
CE, ROHS, REACH, IP68, IP69K
Place of Origin :
Zhejiang, China
MOQ :
1000 pieces
Price :
at the most favorable prices from direct factory
Payment Terms :
Western Union, T/T
Supply Ability :
2,000,000 pieces per month
Delivery Time :
8-10 days
Packaging Details :
standard packaging: 100 pieces/bag, 50 pieces/bag, 20 pieces/bag, special packaging can be available on request
Material :
Stainless steel 304/316/316L
Seal & O-ring :
NBR, EPDM, Silicone, Viton rubber
Plastic insert :
UL-certified Polyamide 6, 94V-2
Color :
Silver
Protection :
IP68 (assemble the O-ring on the groove)
Features :
Anti-aging, insulation, anti-corrosion, anti-acid, waterproof, etc
Description
Description:

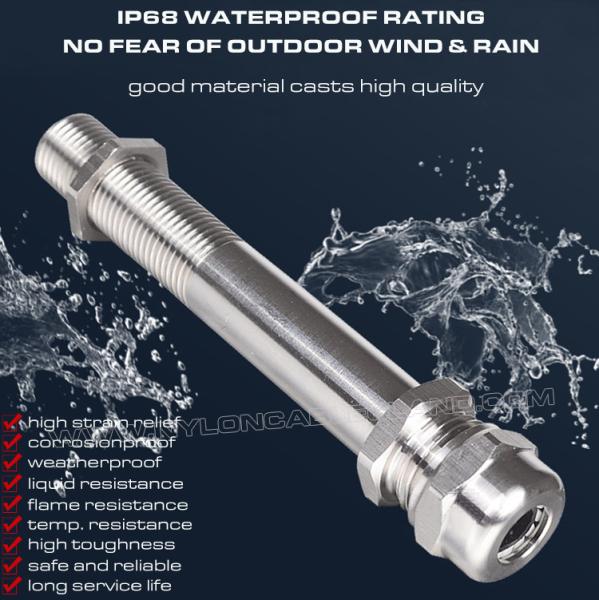

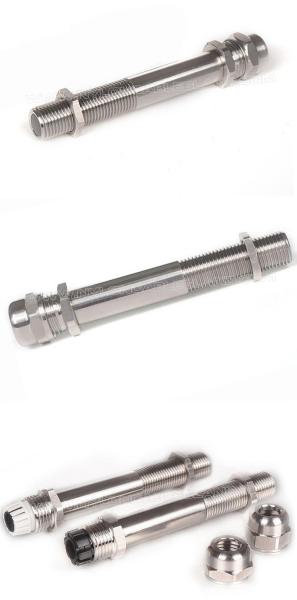

The long thread metal cable glands are made in stainless steel type 304/316/316L, they are mainly characterized by its ultra long thread. Being available in lengths from 15mm to 50mm (other lengths can be customized), they are designed to meet the installation requirements of different panel thicknesses. it is easy-to-assemble and is used to connect cable to terminal equipment (electrical distribution box) and provide a good strain relief to prevent the cable from pull-out and protect electrical or electronic components inside the equipment from ingress of dust, water, liquid,etc.
About The Item:
(1) Premium Quality: these metal cable glands are made of stainless steel (304/316/316L), durable and long-lasting, effectively resistant to UV, moisture, water, aging, oxidation, corrosion and common solvency, it boasts unparalleled protection for your cables, offering reliability and security that you can depend on.

(2) Strongly Waterproof: IP68 waterproof protection is offered, each cable gland consists of a locknut, an o-ring, a body, a sealing ring and a sealing nut. The o-ring is made from black rubber, which can better protect your electrical equipment.

(3) Secure and Reliable: the cable glands provide a secure and safe connection for your wiring. Each cable gland comes with a o-ring or gasket, IP68 waterproof rating protects your projects from dust, water, and other contaminants.

(4) Easy Installation: installation can be completed by one person, no special tools. Just need to insert the cable through the cable gland, then screw the sealing nut and lock nut, the cable will be tightly fixed, but no need to disassemble.

(5) Wide Applications: whether you need waterproof cable pass through for your home, office, or industrial project, our cable glands have got you covered, providing a versatile solution for all your wiring.
Information:
Brand name: Yueqing Sino Cable Gland Factory or OEM
Place of origin: Zhejiang, China
Product name: Metal Cable Gland Long Thread IP68, 304/316/316L Stainless Steel PG & Metric Cable Glands Extra Long (Ultra Long) Thread
Sizes:

* PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48

* M12x1.5, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M24x1.5, M25x1.5, M27x1.5, M30x1.5, M32x1.5, M36x1.5, M40x1.5, M50x1.5, M63x1.5
Materials: Nut, Locknut & Body are made in stainless steel
Plastic insert are made in polyamide
Sealing ring & O-ring are made in NBR, EPDM, Silicone
Surface: Polishing
Color: Silver
Certifications: CE, ROHS, REACH, IP68
Waterproof rating: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread length: Ultra long thread
Thread type: According to the standard DIN40430 / EN60423
Working temperature:

Static: -40℃ to100℃, short-term:120℃.

Dynamic: -20℃ to 80℃, short-term:100 ℃
OEM service: Yes, available
Supply capability: 2,000,000 pieces per month
Minimum quantity: 1000 pieces
Samples available: Free samples available upon request
Delivery time: Normally 8-10 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required

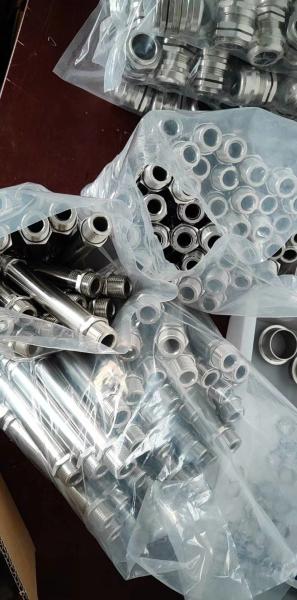

Export packaging:

(1) 100 pieces per bag, 50 pieces per bag, 20 pieces per bag.

(2) 100 pieces per color box, 50 pieces per color box.

(3) special packaging can be customized as requested.
