BW 250 Drilling Mud Pumps1100*995*650 15/1500 Drilling Mud Pumps
BW 250 Drilling Mud Pumps1100*995*650 15/1500 Drilling Mud Pumps
BW 250 Drilling Mud Pumps1100*995*650 15/1500 Drilling Mud Pumps
BW 250 Drilling Mud Pumps1100*995*650 15/1500 Drilling Mud Pumps
Specifications
Place of Origin :
CHINA
Brand Name :
SINOCOREDRILL
Certification :
CE
MOQ :
N/A
Packaging Details :
Sea Delivery Package
Delivery Time :
30Days
Payment Terms :
T/T
Supply Ability :
Based on Detailed Order
Description

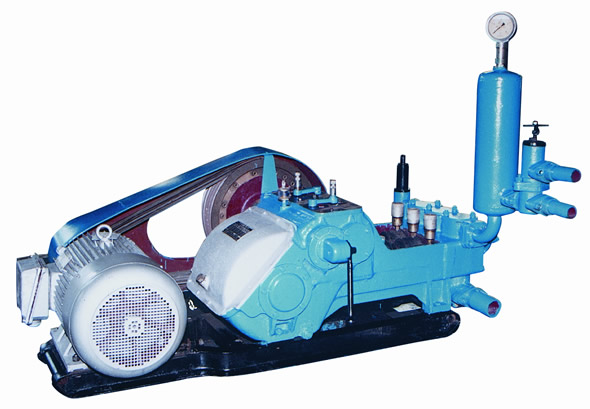

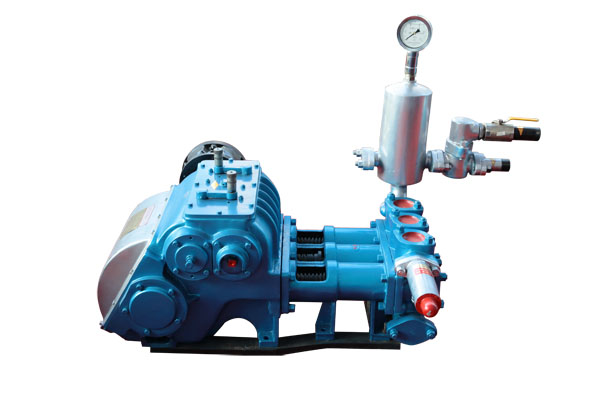

BW-250 MUD PUMP

BW-250 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter

Quick Details:

BW 250 Drilling Mud Pumps1100*995*650 15/1500 Drilling Mud Pumps

Place of Origin: China Brand Name: sinocoredrill Model Number: BW-250
Theory: Reciprocating Pump Structure: Piston Pump Usage: Water
Power: Hydraulic Standard or Nonstandard: Standard Fuel: Diesel
Pressure: High Pressure Application: Other

Packaging & Delivery:

Packaging Detail: wooden boxes
Delivery Detail: 30 days after payment

BW 250 Drilling Mud Pumps1100*995*650 15/1500 Drilling Mud Pumps

Specifications

horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee

Main Technical Specifications:

BW-250 MUD PUMP

Type

Horizontal, triplex, reciprocating, single acting piston pump

Stroke

100mm

Bore

80mm

65mm

Pump speed (s.p.m)

200 116 72 42

200 116 72 42

Output volume (l.p.m)

250 145 90 52

116 96 60 35

Discharge pressure (Mpa)

2.5 4.5 6.0 6.0

4.0 6.0 7.0 7.0

Volumetric efficiency

85%

Mechanical efficiency

85%

Total efficiency

70%

Input power/speed (kw/r.p.m)

15/1500

Multiple grooved pulley D.P (mm)

410(B groove*5)

Input speed of pump (r.p.m)

500

Max. suction head (m)

2.5

Inside diameter of suction hose (mm)

76

Inside diameter of discharge (mm)

51

Overall dimensions (mm)

1100*995*650

Weight (kg)

500(without power)
