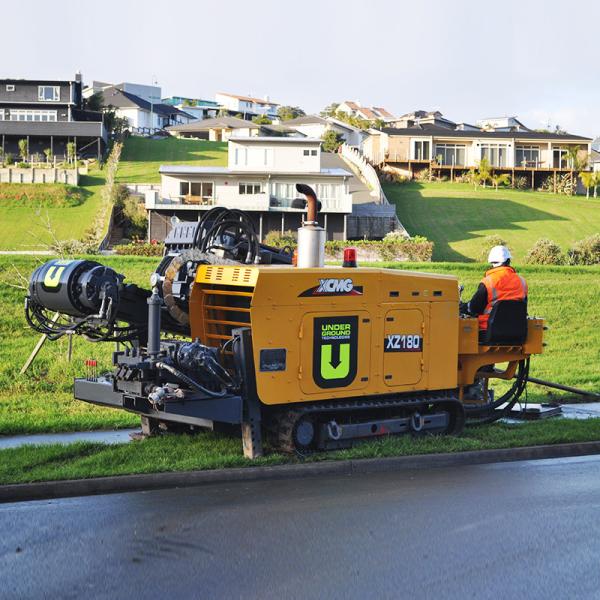

97KW power engine Horizontal Directional Drilling Rigs , Comfortable Hdd Rig
97KW power engine Horizontal Directional Drilling Rigs , Comfortable Hdd Rig
97KW power engine Horizontal Directional Drilling Rigs , Comfortable Hdd Rig
97KW power engine Horizontal Directional Drilling Rigs , Comfortable Hdd Rig
97KW power engine Horizontal Directional Drilling Rigs , Comfortable Hdd Rig
97KW power engine Horizontal Directional Drilling Rigs , Comfortable Hdd Rig
Specifications
Model Number :
XZ180
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
1 set /week
Delivery Time :
10 working days
Packaging Details :
Sea worthy delivery package
Thrust-pullback force :
180kn
Maximum spindle torque :
6000 Nm
Spindle Speed :
0-150RPM
Carriage thrust/pullback travel speed :
0-23m/min
Model :
Cummins 6BTA5.9-C130
Power :
97kw
Drilling fluid pressure :
8Mpa
Type :
Horizontal Directional Drilling Machine For Sale
H.S.CODE :
843041
Drilling angle :
0-25
Description

97KW power engine Horizontal Directional Drilling Rigs , Comfortable Hdd Rig

1.Equipped with two-speed power head, the rig run in low speed at the time of drilling and reaming back to ensure smooth construction. When Light back and forth to load and unload rods, the power head can accelerate sliding to reduce the auxiliary time and improve the work efficiency.

2.Rubber tracks have the least impact on roads, lawns and scenic spots.

3.Application of our patented technology of floating vise, which can effectively extend the life of the drill pipe.

4.The rotation console can increase the operator’s field of view and reduce the fatigue, to make the operation more simple and comfortable.

5.Drilling rod automatic loading and unloading device can improve work efficiency, reduce the labor intensity and the number of workers.

6.Hydraulic drive. The fuel tank and the low speed and high torque motor control the drilling and retraction of the bolt, easy to operate.

7.The hood design is reasonable, Making engine maintenance and hydraulic system replacement filter simple and convenient.

Engine
Model - Cummins 6BT5.9-C130
Rated power KW/r/min 97/2200
Push and pull
Maximum force KN 180
Maximum speed m/min 23
Rotation
Torque N · m 6000
Maximum rotation speed r/min 150
Mud pump
Maximum flow L/min 250
Maximum pressure Mpa 8
Drill rod mm*m φ60×3
Lorry crane
Hoisting weight T --
Lifting moment t•m --
Maximum entry angle ° 22
Maximum return diameter mm φ600
Weight T 8.5
Dimension mm 6500×2270×2340
Remark - Optional: 1. mud antifreeze; 2. mud cleaning.

97KW power engine Horizontal Directional Drilling Rigs , Comfortable Hdd Rig
