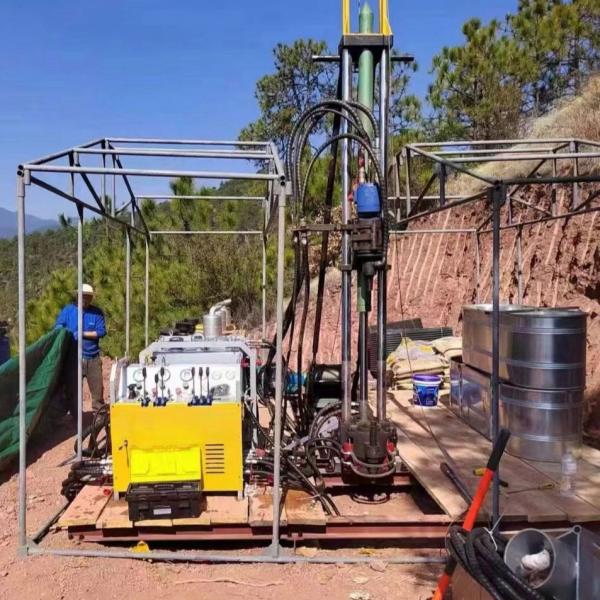

XZHP-600B BQ 600m Hydraulic Portable Drilling Rigs Easy To Assemble For Mine Exploration
XZHP-600B BQ 600m Hydraulic Portable Drilling Rigs Easy To Assemble For Mine Exploration
XZHP-600B BQ 600m Hydraulic Portable Drilling Rigs Easy To Assemble For Mine Exploration
XZHP-600B BQ 600m Hydraulic Portable Drilling Rigs Easy To Assemble For Mine Exploration
Specifications
Brand Name :
Sinocoredrill
Model Number :
XZHP-600B
Certification :
ISO9001
Place of Origin :
CHINA
Applicable Industries :
Energy & Mining
Machine Type :
drilling tool
Place of origin :
Wuxi,china
Description

XZHP-600B BQ 600m Hydraulic Portable Drilling Rigs Easy To Assemble For Mine Exploration

Sinocoredrill works with its valued customers in mineral exploration to provide high-quality drilling solutions that include diamond tools .drilling equipment. accessories and services.

As a leading manufacturer of mineral exploration equipment ( Full Hydraulic Surface Drill rig , Diamond Core bits , Drill rod ,Wireline Core Barrel System ), our solutions are designed to increase productivity, lower costs and make life easier for the drilling community.

Technical Parameters of XZHP-600B

Name Parameter
Drilling Depth BTW(59.56/42.1mm) 600m
NTW(75.31/56.1mm) 450m
HTW(95.57/71.1mm) 230m
Drill Rod Length 1.5m
Coring Length 3m

Rig Power

 Kubota diesel engine V1505T DV210 2x46KW/3600rpm
Power Head - Top Drive Maximum Torque 700Nm
Maximum Speed 1800rpm
Feed Stroke 1.83m
Lifting Force/Feeding force 60KN/30KN
Hydraulic Winch Average Speed 160m/min
Lifting Force 800kg
Wire Rope Diameter 8mm
Wire Rope capacity 850m
Feed Beams And Masts The Total Height Of The Rig At 90° 5m
Drilling Angle 30°～90°
Conformation And Weight Machine Area 4mX4m
Tent Area 4.3mX4.3m
Gross Weight/Heaviest Module 3.11Tons/220kg
Critical Component Supplier Diesel Engines Kubota--Japan
Gear Pump Danfoss - Denmark
Power Head Motor Bomke - Germany
Winch Motor Danfoss - Denmark
Mud Pump Elephant - China
Hydraulic Control Valve Parker - USA
Hydraulic Plug Valve Sun - America

Main Feature

  • Light, reliable and powerful
  • Easy entry, high efficiency and quick relocation
  • Modular design, the heaviest module is 260kg, which can be transported by 4 people
  • Modular display of engine parameters, equipment performance under control
  • Highly integrated hydraulic system, no oil leakage, extremely low failure, intuitive and simple operating system, easy to use
  • The main components adopt international first-line brands, with strong power, stability and reliability
  • Mast-type drilling stand, without drilling tower, can realize drilling at any angle from 30 to 90 degrees
  • Normal closed self-weight gripper, anti-running drill, support PQ hole opening
