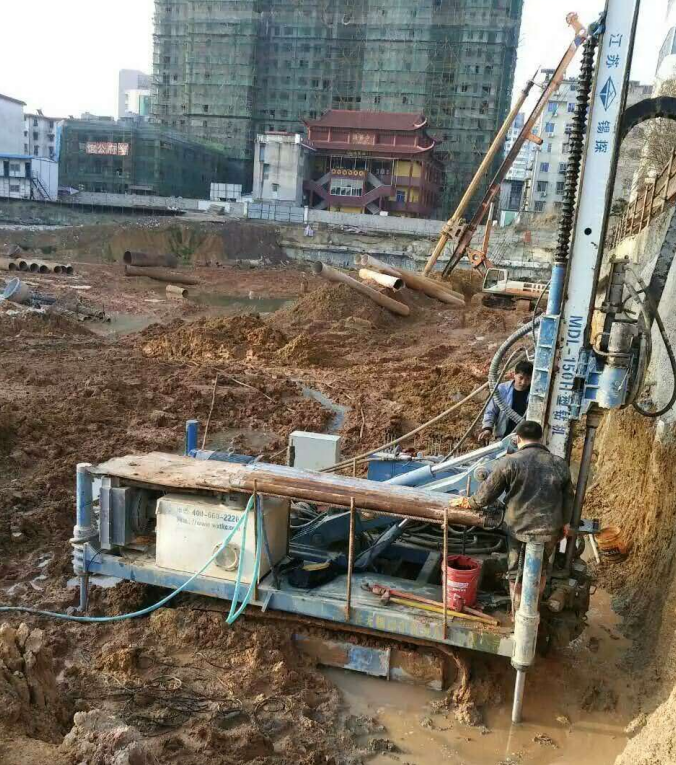

Xdl-H Crawler High Lift 130meter Construction Drill Rigs
Xdl-H Crawler High Lift 130meter Construction Drill Rigs
Xdl-H Crawler High Lift 130meter Construction Drill Rigs
Xdl-H Crawler High Lift 130meter Construction Drill Rigs
Xdl-H Crawler High Lift 130meter Construction Drill Rigs
Xdl-H Crawler High Lift 130meter Construction Drill Rigs
Specifications
Brand Name :
Sinocoredrill
Model Number :
XDL-H
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
T/T, L/C
Supply Ability :
10
Delivery Time :
14 Days
Hole Diameter :
ø 150 ~ ø 250 mm
Hole Depth :
130m ~ 170 m
Rod Diameter :
ø 73/ ø 89/ ø 102/ ø 114
Output Torque Of Power Head :
7500 N.m
Lifting Force Of Power Head :
70 Kn
Weight :
6500 Kg
Description

XDL-150H Multi-function High Lifting Anchor Drilling Rig/Machine

1.XDL-135/150H drilling rig is a kind of full hydraulic multifunctional power head crawler drilling rig. It is mainly applied in anchoring hole of deep

foundation,urban subway,slope supporting, tunnel,high building,airport,geothermal construction,pipe shed and so on.

2.The route of shaft bracket is 3.4 meters, so the 150H crawler anchor drilling rig can have complex rod & casing drill for 3 meters. The rig is applicable to rod boring, casing drilling and complex rod & casing drilling.

3.XDL-135/150H crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig, This can adjust to the max level of 3.3m.

4.The big arm like excavator with double cylinders has the stability of any lifting condition.

5.The crawler from the ground space is so large to adapt for bad environment construction.

6.The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.

Application:


1.Urban subway, high-rise buildings, airport, Geothermal hole,foundation anchoring.


2.Jet grouting and dewatering.


3.The blast hole,the anti-floating anchoring hole .


4.It can be also used for pipe shed engineering

Diameter(mm) Φ150~Φ250
Depth(m) 170-130
Rod dia(mm) Φ73,Φ89,Φ102,Φ114
Drill angle(°) 0-100
Max drill arm level height(m) 3.3
Crawler max height to ground(m) 0.7
Rotary head speed(r/min) 10/20/30/35/40/60/65/70/85/130/170
Rotary head Torque(N.m) 7500
Stroke(mm) 3400
Mast sliding stroke(mm) 1500
Rotary head lifting force(KN) 70
Rotary head lift speed(m/min) 0~5/7/23/30
Rotary head feeding force(KN) 36
Feeding speed(m/min) 0~10/14/46/59
Power(KW) 55+18.5+3
Weight(kg) 6500
Overall(L×W×Hmm) 5400×2100×2000
