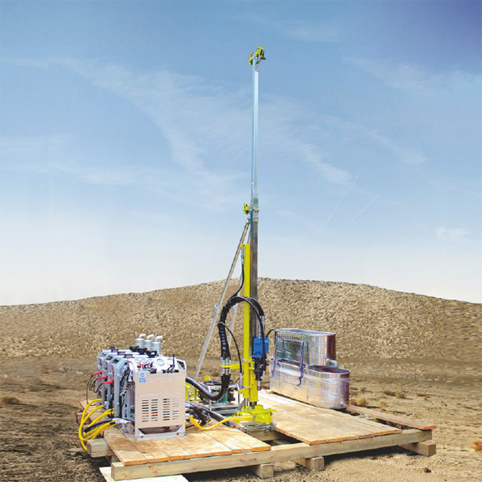

BTW 300M Portable Core Fully-Hydraulic Aluminum Alloy Chassis Drilling Rig

Both light and efficient, EP300 is a portable fully-hydraulic drill rig. It can drill up to 200 meters with
the capability to add on more for deeper drilling.

Various module combinations available for drilling rigs' different requirements:

1. Aluminum alloy chassis

2. The whole chassis drill rig

3. Crawler self-propelled drill rig

4. Vehicle-mounted drill rig

5. Asynchronous motor module

6. EP300 series horizontal drilling frame module

Features of EP series portable fully-hydraulic drillig rig:

1. Modularized with mast drilling frame

• Lightweight design with the heaviest module weighting less than 180Kg, manpower and does not require road construction;

• Mast drilling frame that can be easily transported and disassembled; does not require drilling derricks;

• Top-drive power heads; long-way guide rail; push by oil cylinders; does not require repeated rechucks;good orientation;

• Operated in small area; does not require foundation construction and environmentally-friendly.

2. Fully hydraulic transmission

• Flexible and lightweight design for easy operation and maintenance;

• Steady drilling with adjustable and high speed;

• Real-time over-pressure protection provided.

3.Thin-wall wireline coring technical

• The drilling pole system with well controlled borehole inclination;

• Thin-wall drill bit with small torque resistance, high cutting speed and drilling rate;

• Large coring diameter and high coring rate;

• Small annulus to reduce accidents and improve safety.

Application Fields

They are widely used for Geological Mineral Exploration, Infrastructure Construction Investigation, Water Conservancy and Hydropower Investigation,Railway/Highway/Bridge/Tunnel Investigation, Advanced Geological Forecast Drilling, Pile Validation and Core-drawing Investigation.

Parameters
