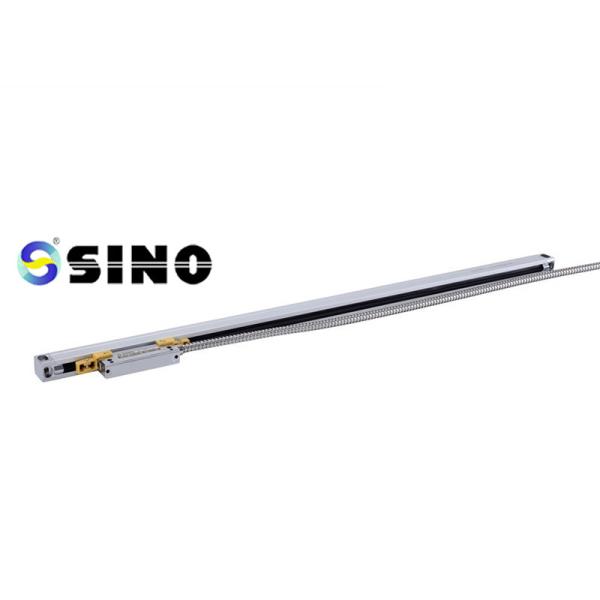

RoHS 2 Axis DRO Kit LCD Digital Readout Display 5um Linear Scale Optical Sensor Glass Scale Ruler For Lathe
RoHS 2 Axis DRO Kit LCD Digital Readout Display 5um Linear Scale Optical Sensor Glass Scale Ruler For Lathe
RoHS 2 Axis DRO Kit LCD Digital Readout Display 5um Linear Scale Optical Sensor Glass Scale Ruler For Lathe
RoHS 2 Axis DRO Kit LCD Digital Readout Display 5um Linear Scale Optical Sensor Glass Scale Ruler For Lathe
Specifications
Brand Name :
SINO
Model Number :
KA500
Certification :
CE,RoHS
Place of Origin :
Guangzhou, CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3000 sets per month
Delivery Time :
5-8 days
Packaging Details :
Carton
Item name :
SINO KA500-170mm Linear Encoder
Application :
5um Linear Scale Optical Sensor
Usage :
Scaling position sensor
Customized Length :
70mm/120mm/170mm/220mm
Length :
320mm/370mm/420mm/470mm
Material :
Aluminum
Function :
EDM/Lathe/Grinding/Boring Machine/CNC Machine
Resolution :
0.5μm/1μm/5μm
Description

2 Axis DRO Kit LCD Digital Readout Display 5um Linear Scale Optical Sensor Glass Scale Ruler For Lathe Milling Machine​

Specially designed for machine tools with constrained installation and operation space is the KA-500 mini-encoder. Positional requirements from clients can be accommodated. The size is 70 by 470 millimeters.

Package includes:

Linear scale grating, 1 piece, KA500-170mm

There is a resolution of 0.5um/1um/5um.


Depending on the requirements of the customers, customized encoder lengths (L0) can be offered.(Length:70-470mm)

Model L0 L1 L2 Model L0 L1 L2
KA500-70 70 172 182 KA500-320 320 422 432
KA500-120 120 222 232 KA500-370 370 472 482
KA500-170 170 272 282 KA500-420 420 522 532
KA500-220 220 322 332 KA500-470 470 572 582
KA500-270 270 372 382 　 　 　 　

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Operating Instructions

It is necessary for the user to read the General Description, Safety Considerations, and


the whole contents of Chapter 1 3.

In addition to the Safety Considerations, the General Description, and all of the information in

For installation, testing, and maintenance, the specialists must closely adhere to Chapters 1 through 3.

comprehend each and every idea from chapters 4-5.

The SINO KA series of integrated circuits are the only ones covered in this operating handbook.

linear coding.

4. Please review the safety advice listed below. It includes crucial details regarding

Take care when using your linear encoder.

Detail Information:

RoHS 2 Axis DRO Kit LCD Digital Readout Display 5um Linear Scale Optical Sensor Glass Scale Ruler For Lathe

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

RoHS 2 Axis DRO Kit LCD Digital Readout Display 5um Linear Scale Optical Sensor Glass Scale Ruler For Lathe
