Sino SDS2MS DRO Digital Readout Glass Linear Scale For Lathe Milling Machine

The Sino SDS2MS DRO is an advanced digital display gauge designed for lathe and milling machines. It offers a wide range of functions that can be easily adjusted to suit different machine tools.

Key Features:

1. Versatile functionality: The SDS2MS DRO supports radius/diameter conversion, MM/Inch conversion, and absolute/relative conversion. This allows for greater flexibility in measurements and calculations.

2. Enhanced precision: With the mid-splitting function, the DRO enables accurate positioning and measurement of workpieces. The easy "R" function simplifies radius calculations, while the smooth "R" function ensures smooth operation during machining processes.

3. Convenient memory storage: The DRO has a built-in memory that can store up to 200 groups of zero positions. This makes it easy to recall previous settings and improve workflow efficiency.

Specifications:

- Voltage range: AC 85V~250V / 50Hz~60Hz
- Power consumption: 15W (25VA)
- Coordinate options: Single coordinate, two coordinates, three coordinates
- Display type: Seven-segment display with eight meters words show symbols (for two or three axis)
- Net weight: 1.3kg (2.9lb)
- Input signal compatibility: TTL, EIA - 422 open collector output signal, compatible with programmable controllers.
- Input signal frequency support: >100 KHz
- Resolution options: 10 microns, 5 microns, 2 microns, 1 micron, 0.5 microns

Additional Features:

1. Robust design and professional software ensure reliable performance and durability.

2. Improved anti-interference capabilities meet advanced EMC testing standards.

3. The DRO is designed to adapt to various processing environments, making it suitable for a wide range of applications.

Experience the precision and convenience of the Sino SDS2MS DRO Digital Readout System for your lathe or milling machine today!

DRO SDS2MS is multifunctional Two-coordinate numerical display gauge.
By different machine tool, by simply altering the parameters, this gauge can be changed to the appropriate function.

Upgraded Functions:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

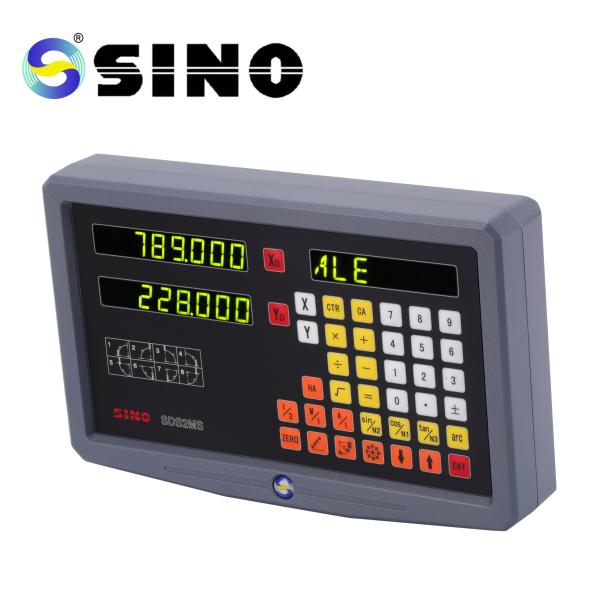

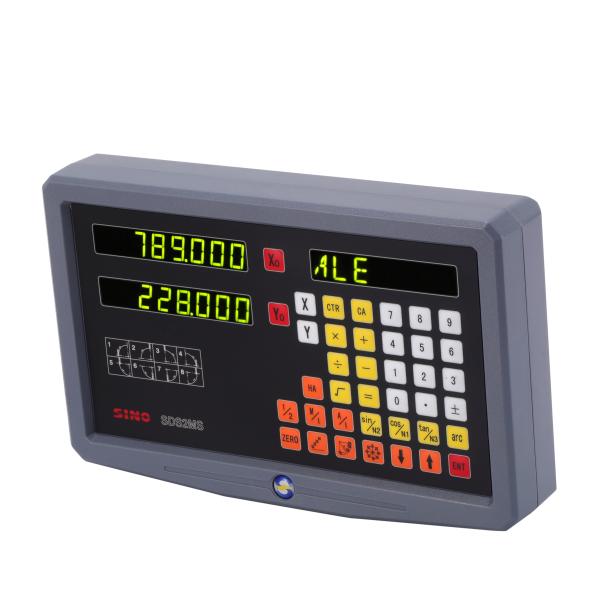

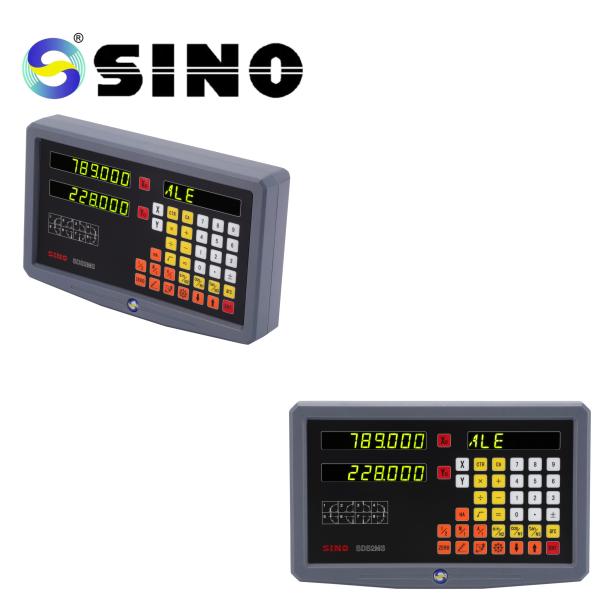

Product image /photos:

The rack in the picture is optioned, not standard product.
