Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit
Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit
Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit
Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit
Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit
Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit
Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit
Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit
Specifications
Brand Name :
SINO
Model Number :
SDS2-3VA
Certification :
CE,RoHS
Place of Origin :
Guangzhou, CHINA
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
Carton
Name :
Digital Readout SDS2-3VA
Number of Axis :
2 / 3 axis
Case :
Plastic
Display :
TFT LCD
Signal :
TTL / RS422
Voltage :
AC 100V-240V
Usage :
All kinds of machine
Language :
Chinese / English / Deutsch / French / Espanol
Description

SINO Economy TFT LCD 2/3 Axis Digital Readout System DRO SDS2-3VA

SDS2-3VA is an economy TFT DRO, is an upgraded verion of SDS2 series. It also employs the newest 16 bits SCM technology and is allowed to input the high frequency of A/B signals up to 5MHz. That can be suitable for most of the machine, like the high precision coordinate boring machine, floor boring machine, grinding machine, lathe, milling machine and so on. And the plastic case make the weight ligher for cheaper transportation propose. SDS2-3VA equips a TFT LCD screen to satisfy more and more different kinds of requirement.

Strengthen Functions:

  1. Enlarge the calculator function:

SDS2 series can change the decimal digits to be three, four or five digits to improve the calculating precision.

  1. Non-linear error compensation:

The system has maximum 40 sections non-linear error compensation to improve the machining precision.

  1. The numbers of decimal digits can be chosen in inch mode:

4 / 5 decimal digits can be chosen in inch mode. 4 digits can satisfy long scale requirement, and 5 digits can satisfy high precisions display.

Specifications :

Supply Voltage range: AC 80V~260V; 50~60Hz, US Plug available

Power consumption: 15VA

Operating temperature: 0~45 degrees centigrade

Storage temperature: -30~70 degrees centigrade

Readout allowable input signal: TTL/RS422 square wave

Allowable input signal frequency: Less than 5MHz

Max resolution of digital display length: 0.5µm

Min resolution of digital display angle :0.0001/pulse

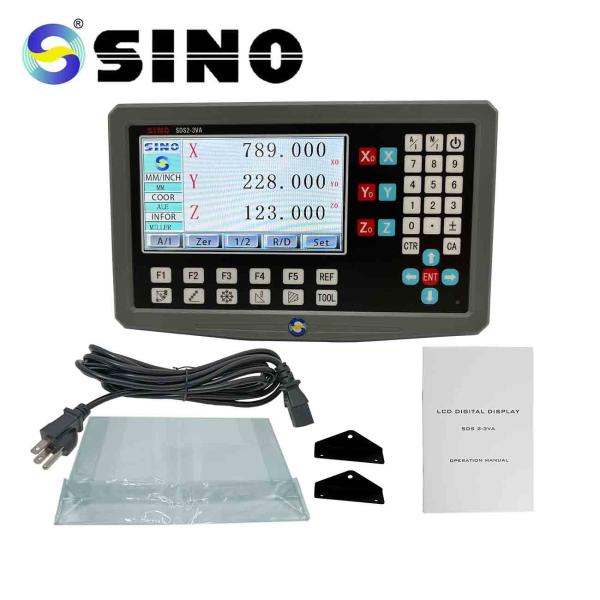

Packaging List :
1 PC TFT LCD digital readout SDS2-3VA
1 PC Transparent cover
1 PC Instruction Manual (English)
1 PC Power Cable

Product image /photos:

Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit

Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit

Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit

The rack in the picture is optioned, not standard product.

Multilingual Digital Read Out System , 100V-240V DRO 3 Axis Kit
