1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder
1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder
1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder
1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder
1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder
1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder
1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder
1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder
Specifications
Brand Name :
SINO
Model Number :
KA-600, KA-300, KA-500, KA-200
Certification :
CE,RoHS,
Place of Origin :
P.R.China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 per month
Delivery Time :
5-8 days
Packaging Details :
Carton box
Item :
SINO 1 Micron Resolution Linear Encoder Scale
Model :
KA Series
Usage :
Metal Cutting Machine, Testing Equipment
Type :
Optical Grating Glass Linear Encoder
Resolution :
1μm / 0.5μm
Output Signal :
TTL / RS422
System :
SINO Digital Readout Display
Keyword :
Linear Scale Encoder
Description

SINO High Precision Aluminium Glass Linear Encoder 1 Micron Resolution Scale

All the SINO KA series scales could be chosen to be 5, 1 or 0.5 micron resolution.

KA-300 model equip the yellow sealing lips instead of the black ones.

It's more smoothly that can redcue the resistance to upgarde the measuring accuracy of encoders.

Product data sheet

Model KA-300
Travel length(mm) 70-1020 (50mm/Specification)
Scaling distance 0.02mm(50 lines/mm)
Accuracy ±3/±5/±15µm 20℃
Resolution(um) 1um,0.5um
Reference Signal Every 50mm per length specification
Seal protection IP53
working speed (resolution)>=5um: >=60m/min <=1um: >=120m/min
Output signal TTL / RS422
Operating temperature 0℃-45℃
Storage temperature -20℃--80℃
Humidity 100% not condensed
Voltage 5V/24V

Package list: 1 * KA300 Linear encoder scale, 1 *screw sets

Protection Cover is not included. It can be optioned by different propose.

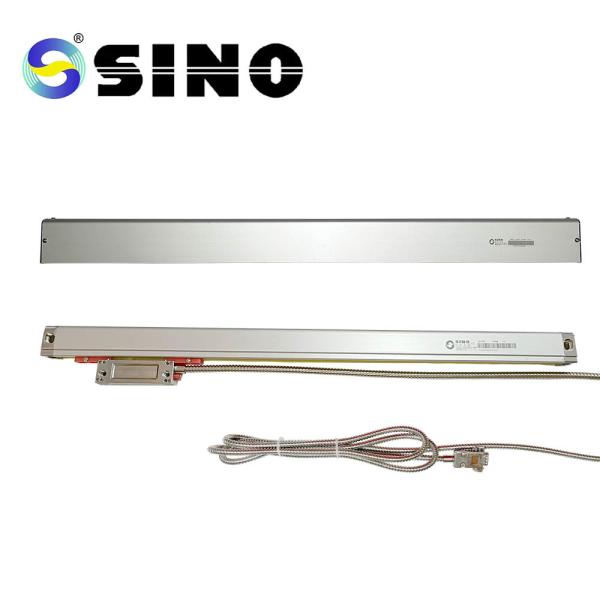

Product images

1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder

1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder

1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder

Covers' Options

1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder

1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder

All scales will be tested before delivery.

Each scale have its own test report:

1 Micron Resolution Linear Scale CNC , 24V Magnetic Scale Linear Encoder
