SDS2MS SINO Digital Readout System DRO KA300 Glass Linear Scale IP64
SDS2MS SINO Digital Readout System DRO KA300 Glass Linear Scale IP64
SDS2MS SINO Digital Readout System DRO KA300 Glass Linear Scale IP64
SDS2MS SINO Digital Readout System DRO KA300 Glass Linear Scale IP64
Specifications
Brand Name :
SINO
Model Number :
SDS2-3MS
Certification :
CE,RoHS,ISO9001
Place of Origin :
GUANGZHOU
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 sets per mouth
Delivery Time :
5-8 Work Days
Packaging Details :
Cartons
Item :
Digital Readout System SDS 2MS
Protection :
IP64
Usage :
suitable for mill lathe machine
Power voltage selectionultiplication :
AC 100V~240V 50 Hz~60 Hz
Signal :
TTL square wave
Working temperature :
0-45℃
Storage temperature :
-20--70℃
Resolution :
5um/1um
Allowable input signal :
TTL square wave
Description

SINO Digital Readout System SDS2MS DRO KA300 Glass Linear Scale Suitable For Milling Lathe TTL Square Wave

Description of Digital Readout System

SDS2MS is 2 axes digital readout system, which use for testing machines. Our company has passed the authorization and audit of the ISO 9001 quality system, ISO 14001 environmental system, and OHSAS 18001 occupational health and safety system.

It is a general encoder optimization, aesthetics and intimacy are indispensable for the average user

​70 to 1020 millimeters

KA-300 is a type of encoder with wide applications. It features an optimal structure, good appearance, and high rigidity, able to meet the needs of the majority of general machine users. The length is 70~1020mm

​

Specifications:

1. The digital display box must be handled carefully.

2. The box must be grounded properly.

3. Power voltage selection: AC 100V~240V 50 Hz~60 Hz

4. Power consumption: 25VA

5. Working temperature: 0℃~45℃

6. Storage temperature: -30℃~70℃

7. Relative humidity: <90%(20±5℃)

8. Weight: ≈840 g

9. There must no corrosive gases be around the box.

10. Number of coordinates: 2 coordinates.

11. Display: 7 digits with symbol display, the message window displays using the 8-star character display device.

12. Frequency multiplication: 4X

13. Allowable input signal: TTL square wave.

14. Allowable input signal frequency: ≤5M Hz

15. Length resolution: 5µm, 1µm.

16. Operation keyboard: Sealed diaphragm touch keys

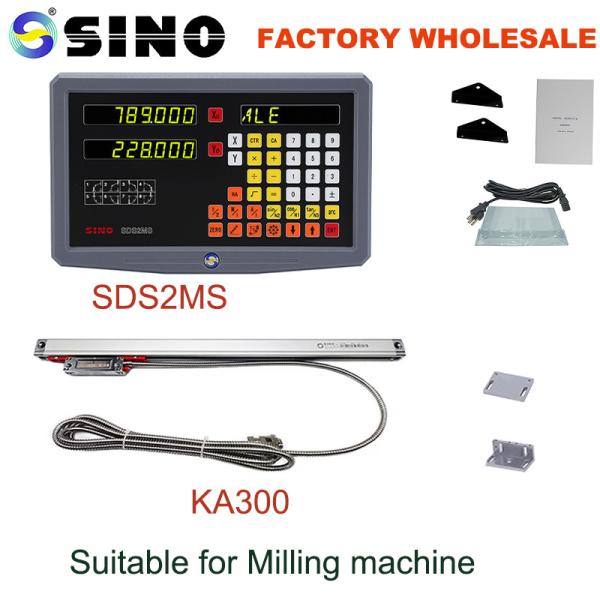

Package list:

SDS2MS, cable,KA300 70-220mm

​Product Information

Item name SINO DRO System SDS2-3MS
Digital Readout (DRO) SDS 2-3MS
Power Voltage selection AC 100V~240V 50 Hz~60 Hz
Power consumption 25VA
Working temperature 0℃~45℃
Allowable input signal TTL square wave
Length resolution 5um, 1um, 0.5um
Storage temperature

-30℃~70℃
Others Cable / Manual

Customized lengths of the encoder (L0) can be provided according to the users' needs.(Length:70-520mm)

Model L0 L1 L2 Model L0 L1 L2
KA300-70 70 160 176 KA300-570 570 660 676
KA300-120 120 210 226 KA300-620 620 710 726
KA300-170 170 260 276 KA300-670 670 760 776
KA300-220 220 310 326 KA300-720 720 810 826
KA300-270 270 360 376 KA300-770 770 860 876
KA300-320 320 410 426 KA300-820 820 910 926
KA300-370 370 460 476 KA300-870 870 960 976
KA300-420 420 510 526 KA300-920 920 1010 1026
KA300-470 470 560 576 KA300-970 970 1060 1076
KA300-520 520 610 626 KA300-1020 1020 1110 1126

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension


SDS2MS SINO Digital Readout System DRO KA300 Glass Linear Scale IP64SDS2MS SINO Digital Readout System DRO KA300 Glass Linear Scale IP64

Packing&Delivery

SDS2MS SINO Digital Readout System DRO KA300 Glass Linear Scale IP64

SDS2MS SINO Digital Readout System DRO KA300 Glass Linear Scale IP64
