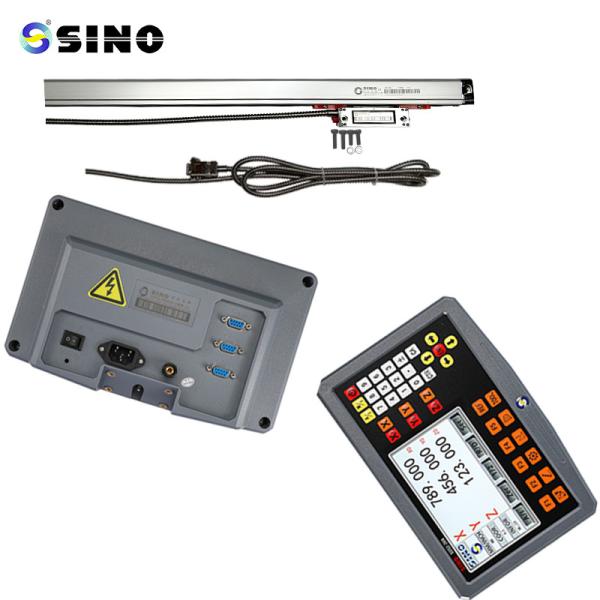

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500
For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500
For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500
For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500
Specifications
Brand Name :
SINO
Model Number :
SDS2-3VA, KA-300, KA-500, KA-600
Certification :
CE, RoHS
Place of Origin :
Guangzhou, CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3000 sets per month
Delivery Time :
5-8 days
Packaging Details :
Carton
Item name :
For Lathe Machine, SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500
Usage :
manual lathe installation in three axes
System :
three axes SDS2-3VA TFT DRO
Scale model :
KA series: KA-300/KA-500/KA-600
Signal :
Grating ruler: TTL / RS422
Resolution :
Linear Scale ruler: 0.005mm/0.001mm
DRO mounting :
On the lathe electric box
Meas. travel :
Grating ruler: 70-3000mm
Display :
Colorful TFT screen
Voltage :
100V - 240V DRO / 5V ruler
Description

SINO 3 axes economy TFT lathe machine digital readout set SDS2-3VA mounting on electric box with three grating rulers

Particular to the three-axis lathe machine location is the digital readout set.

It is recommended to put the TFT screen DRO SDS2-3VA on the electrical box of the lathe.

For axis Z, use the KA-600 grating ruler; for axis X and Z1, use the KA-300 or KA-500 grating rulers.

The grating rulers come with a normal 3M cable, however occasionally an extension cable is needed for installing big lathes.

The optional accessory is an extension cable with a length of 1 to 10 meters.

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

Package list:

Item name 3 axis TFT lathe machine digital readout set
Digital Readout (DRO) SDS2-3VA
Linear scale for axis Z KA-300 / KA-600 820-3000mm
Linear scale for axis Z1 KA-500 / KA-300 270-520mm
Linear scale for axis X KA-500 / KA-300 270-520mm
Rack for DRO Rack for lathe
Protection cover for Z scale Type M
Protection cover for Z1 scale Type H / D
Protection cover for X scale Type H / D
Bracket for scales

T-bracket (1set) / KA-500 bracket (2 pcs)
Others Cable / Screws / Manual

Functions for lathe machine:

  1. Radius / Diameter Conversion
  2. Tool Diameter Compensation
  3. Taper Measurement
  4. 200 Tools Storeroom

Detail Information:

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

Pin Description:

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

All linear scales were tested before delivery. Here is a sample of a scale's test report.

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

It's a sample that a DRO is mounting on the electric box of a lathe:

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

It's a sample that KA-500 linear encoder on axis X of lathe:

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500

It's a sample that KA-300 linear encoder on axis Z of lathe:

For Lathe Machine SINO TFT Screen 3 Axis Digital Readout DRO Linear Scale Ruler KA300 KA500
