3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine
3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine
3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine
3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine
3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine
3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine
Specifications
Brand Name :
SINO
Model Number :
SDS6-3VE
Certification :
CE,RoHS
Place of Origin :
Guangzhou, CHINA
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
Carton
Name :
SINO SDS6-3VE
Number of Axis :
3 axis
Case :
Aluminium metal
Display :
green LED
Signal :
TTL / RS422
Voltage :
AC 100~240V
Usage :
EDM Function
Description

3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine

The SDS6-3VE DRO features a specialized output function designed for EDM machines, allowing it to connect to the EDM relay to control depth processing.

The SDS6 series DRO supports high-frequency A/B signals up to 5 MHz and utilizes the latest 16-bit SCM technology, enabling it to replace various basic functions. This versatile DRO offers faster measurement speeds and a more intuitive control system. Each axis provides 40 points of non-linear compensation to reduce errors.

Strengthen Functions:

  1. Calculator:The DRO allows you to adjust the decimal digits to three, four, or five, enhancing calculation precision.
  2. Non-Linear Error Compensation:It offers up to 40 sections of non-linear error compensation to enhance machining accuracy.
  3. Decimal Digit Options in Inch Mode:You can select either 4 or 5 decimal digits in inch mode. Four digits are suitable for long scale measurements, while five digits provide high precision display.
  4. Communication:Includes EDM-compatible output for integrated control.

Specifications :

Voltage:** AC 80V~260V, 50Hz~60Hz (various plug options available)

Power Consumption:** 15VA

Operating Temperature:** 0~45°C

Storage Temperature:** -30~70°C

Readout Allowable Input Signal:** TTL/RS422 square wave

Allowable Input Signal Frequency:** Up to 5 MHz

Maximum Resolution of Digital Display Length:** 5 µm (0.005 mm / 0.0002")

Minimum Resolution of Digital Display Angle:** 0.0001/pulse

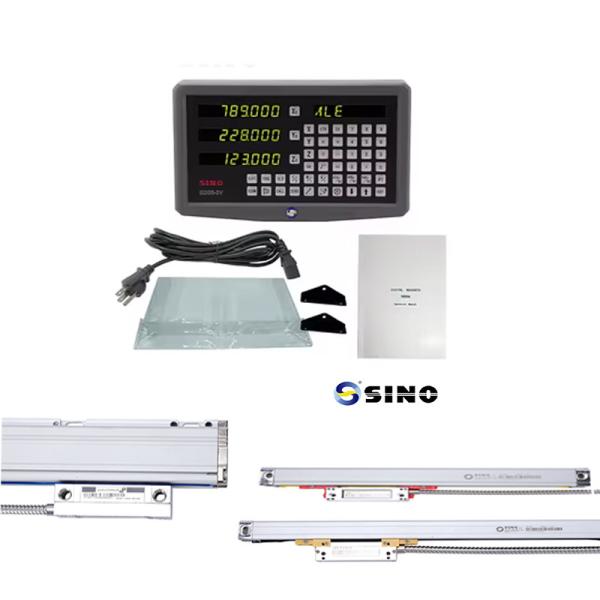

Packing List :
1 PC 3 Axis digital readout SDS6-3VE
1 PC Transparent cover
1 PC Instruction Manual (English)
1 PC Power Cable
1 PC Matching Output Cable

Product image /photos:

3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine

3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine

Matching Output Interface:

3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine

Size:

3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine

The rack in the picture is optioned, not standard product.

3 Axis SINO SDS6-3VE Multipurpose With LED DRO , EIA-422-A Signal Digital Readout Kits For EDM Machine
