120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device
120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device
120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device
120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device
120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device
120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device
120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device
120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device
Specifications
Model NO. :
SNT-700L2
Style :
Modern
Installation Type :
Insert
Type :
Gas Fireplace,Stove
Material :
Metal
Function :
Temperature Control
Feature :
Eco-Friendly
Transport Package :
Carton Packing
Specification :
8*5*3cm
Origin :
China
Supply Ability :
300000 Sets/Year
Color :
Silver
Usage :
Indoor
Certification :
CE
Adjustable Thermostat :
Adjustable Thermostat
Remote Control :
Without Remote Control
Overheating Protection :
With Overheating Protection
Samples :
US$ 50/Piece 1 Piece(Min.Order) | Request Sample
Customization :
Available | Customized Request
Description

Product Description

Product Description

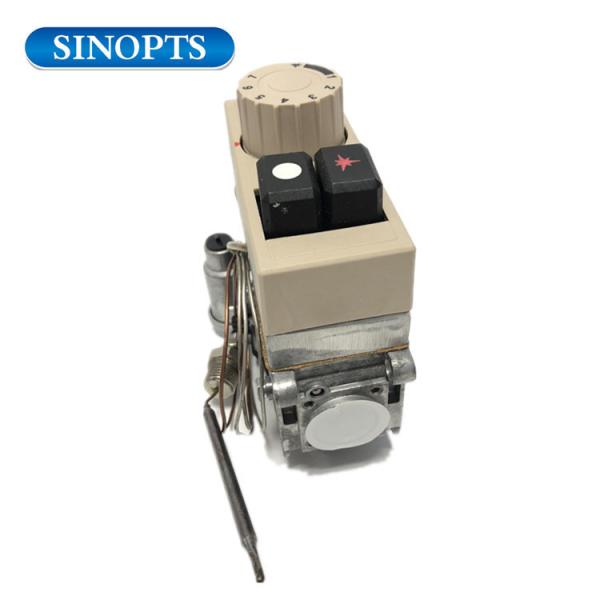

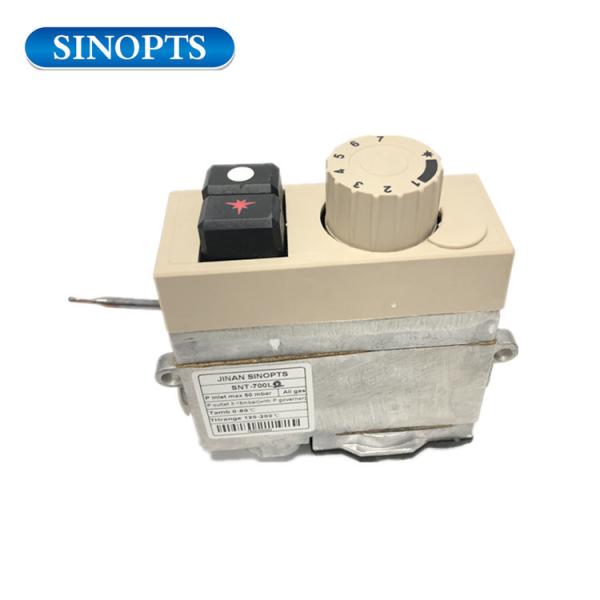

The gas temperature control valve is used on various home gas heaters, gas boilers and other appliances. The valve is rated at 120 to 200 degrees, inlet 1/2" BSP, outlet 3/8" BSP, thermocouple connection M9X1, wire length can be customized. The valves combine a thermostat and flame failure device in one unit. They are supplied with the plastic body and control knob.

With pressure regulator. Max capacity can be 5.0 CBM/hour.

Main gas connection Rp1/2 or Rp3/8 Usage gas All gas
Thermocouple connection M9X1, M10X1 Max gas inlet pressure 50 mbar
Outlet pressure setting range 3-18mbar Flange fixing holes M4X7
TH range 120-200ºC Mounting holes 5.0diameter
Pilot outlet M10X1

120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device

Our Services

1. 24h on line service

2. We can supply free spare parts for replacement if they are destroyed during devliery.

3. quick feedback and on time delivery, life long service.

4. competitive price with good quality


Company Information
120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device

Jinan Sinopts Energy Technology Inc. are specialized in parts and accessories for home appliances and commercial catering equipments.

Our technical teams have more than 15 years' experience and we could manufacture according to customers' drawings or samples.

We are strictly according to ISO9001:2000 quality managemant system. Our products are passed CE, UL, CSA, ETL, CCC, ROHS and mainly supplied to USA, Canada, Mexico, UK, Korea, Russia, Ukraine, Italy, Spain, Egypt, Pakistan, Uzbekistan, Kazakhstan, Indonesia, Austrilia, Brazil, Colombia, Peru,Chile.

Looking forward to cooperating with each other sincerely and develop together on the basis of quality first, honest treatment and mutual benefits. 120-200 Celsius Gas Multifunctional Control with Thermoelectric Flame Supervision Device

FAQ

Q1. Can I have a sample for testing?
A: Yes, samples can be made according to customer's request.

Q2. Can it be customized?
A: Yes, send us the drawing and trademark authorization letter accordingly.

Q3: What's your delivery way?
A: By sea, by air, by courier as per request.

Q4: How can I pay?
A: T/T, PAYPAL,WESTERN UNION,MONEYGRAM,ALIPAY,L/C.
