Specifications
Model Number :
MM10x2-1400
Place of Origin :
Guangdong, China
Brand Name :
WDS/Sinosun
Price :
$7,000.00/sets >=1 sets
Type :
Vehicular
Description
Experience Seamless Vehicle Communication with MimoMesh Vehicular Radio
Product Overview

MimoMesh Handheld Radio
IP67 Rugged Backpack Design For MESH Networking In Harsh Environments
10 Watts×2/20 Watts×2 Transmit Power, 10/12 Hours Or More Long Battery
Rich Interface, Built-In Network Port, Serial Port, High-Fidelity (G.722) Intercom Call
Long Distance, High Speed, Flexible Networking, Strong Anti-Interference Ability
Product Paramenters
General
Waveform
Mobile Network MIMO (MN-MIMO)
MIMO Technology
Space-time coding,Space Diversity,TX /RX beamforming,Spatial multiplexing
Receive Sensitivity
-103dBm@5MHz BW
Channel Bandwidth
2.5/5/10/20MHz ,40MHz optional；FDD by dual-antennas with two-frequencys transceiver(Carrier Aggregation) optional
Data Rate
1-100Mbps(20MHz BW)/180Mbps(40MHz BW) Adaptive,QoS
Modulation Mode
TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive(Fixed setting optional)
RF Output Power
10Watts×2/20Watts×2
Single Hop Communication Distance
100-300 KM (visible), 1-30 KM (urban area)
Mode
Distributed without a center Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Two or three floors Dynamic routing,Multi-hop relay, Star/Line/Network/Hybrid
Single Hop Delay
Average 7mS(20MHz BW)
Encryption
DES, AES128/256 ,SNOW3G/ZUC optional,Chip /TF card encryption customized
Anti-jamming Mode
Manual spectrum scanning channel selection, Full band Intelligent frequency channel Selection(Spectrum awareness)/Full band
Autonomous frequency hopping/Roaming mode optional
Local/Remote Management
Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic,node distance,GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade.Remote silence and wake-up options
Others
The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second.There is no limit on
the user capacity of a single system(256 nodes or more) and the number of hops in Mesh networks(Data 15+ hops, voice 10+ hops,
video 8+ hops). The total bandwidth loss of multiple hops is less than 70%.Automatic carrier tracking, support over 1000 km/h
mobile communication
Bands(70M-6GHz)
UHF
350-450/450-550/570-700/800-950
L Band
1000-1200/1300-1550
MIIT
336-344/512-582/566-626/ 606-678/1420-1520/1430-1444
S Band
1.6-1.8/1.8-2.0/2.0-2.2/2.2-2.5
C Band
4.4-5.0/5.0-6.0
Environmental
Operation Temperature
-40℃ ~+80℃
Protection Level
IP66,IP67/IP68 Customized
Mechanical
Size/Weight
22.9x18.9x6.2cm/3.86kg(with 22.2V/9.6AH battery Backpack Radio) 31.4x18.9x6.2cm/4.95kg(with 14.8/28.8AH battery Backpack Radio)
Installation/Color
4 Mounting Holes/Black,Lron Gray,Army Green Optional
Power
Supply Voltage
14.8-36VDC(10Watts×2 Backpack Radio)
18-36VDC(20Watts×2 Backpack Radio)
Power consumption
Operation 3-6A/Standby 0.7-0.9A@16.8V(10Watts×2 Airborne Radio)
Operation 6-10A/Standby 0.7-0.9A@20V(20Watts×2 Backpack Radio)
Power Selection
Power Supply by Twist-Lock Battery or Main Cable
Batteries
10-12/6-8 hours for 28.8/9.6AH polymer lithium battery
Interface
Basic interface
2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD,RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input
Push to talk/Auxiliary interface
MIC,SP,PTT,GND,RS485/422,USB2.0OTG
Network Extension Optional
Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite
Video Extension Optional
Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status Indicator
Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is
connected Blinking green - Voice PTT is down
RSSI Link Indicator
Steady green - The link quality is excellent Blue Steady - The link quality is good Steady yellow - The link quality is medium
Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down
Management Interface/Control Interface
Web-based network management/GUI, API for secondary development interface/SNMP
OEM
Size/Weight
10.1x5.4x1.9cm/123.5g
RF
SMP
Performance:
Mesh network (self-forming, self-adapting ,self-healing), high-speed throughput Non-visual urban construction,jungle multi-path transmission terrain, effective connection High-speed movement of ground, water and air, effective connection Multiple antenna settings, omnidirectional, high gain orientation or mixing GPS/BD and Multicast Support
Advantages:
Increased 4.5 times coverage in densely populated areas Increase the range by 2 times in the visible limit environment Increase 2-4 times data transmission rate The same communication range and transmission data rate, reducing transmission power by 2 times
Application
Seamless Mesh Mimo Radio Vehicular Cofdm Transmitter For Vehicle Communication
Significant applications in Non Line of Sight /Multipath Fading environments, video/data/voice critical ommunications:
Robot / Unmanned Vehicle, Reconnaissance / Surveillance / Anti-Terrorism / Monitoring Air-to-air & air-to-ground & ground-to-ground, public safety / special operations Urban network, emergency support / normal patrol / traffic management Inside and outside the building, fire fighting / rescue and disaster relief / forest / civil air defense / earthquake TV broadcast wireless audio / video / live broadcast Marine communication / high speed transmission on the opposite side of the ship Low deck wireless network / ship landing Mine / tunnel / basement connection

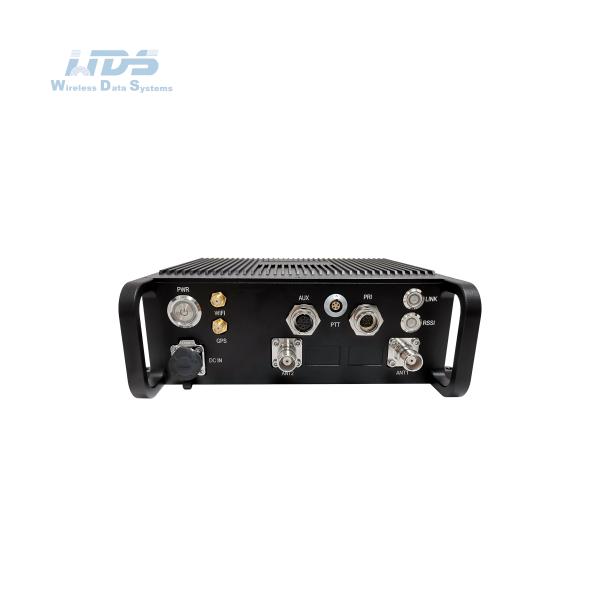

Hardware Interfaces
Seamless Mesh Mimo Radio Vehicular Cofdm Transmitter For Vehicle Communication
1:WIFI Antenna [SMA Female]2:Power Switch
3:Power supply port
4:Radio switch
5:Auxiliary Connection Port [LF10WBRB-12SD]
6:Push-to-Talk (PTT) Connector HGG.0B.304
7:Link Status Indicator/RSSI Link Indicator
8:RS232, Ethernet, and Serial Port Connector[LF10WBRB-12PD]
9:RF Channels 1-2 Connectors [TNC Female]
