Specifications
Brand Name :
WDS
Model Number :
DDL1x2-1400
Place of Origin :
China
MOQ :
1 unit
Price :
$950 1 unit
Payment Terms :
T/T
Supply Ability :
50000 unit a year
Delivery Time :
1 days
Product name :
DDL Airborne Radio
Output Power :
1Watts x2/2Watts x2/10Watts x2/20Watts x2
Channel Bandwidth :
1.25/2.5/5/10MHz Adjustable
Protection Level :
IP66,IP67/IP68 Customized
Description

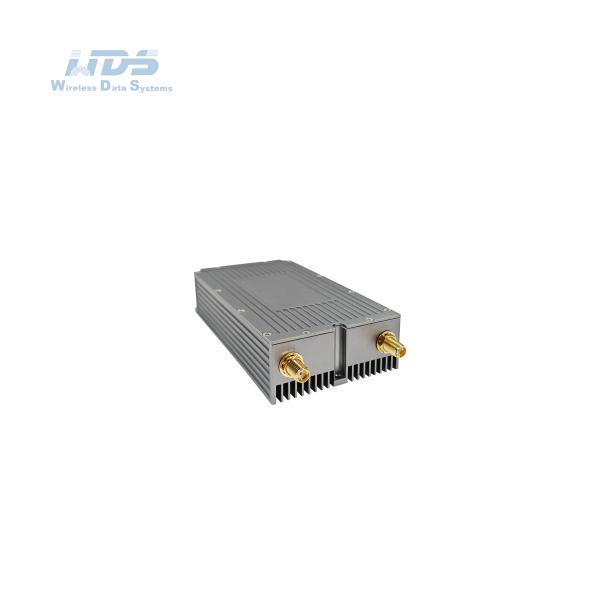

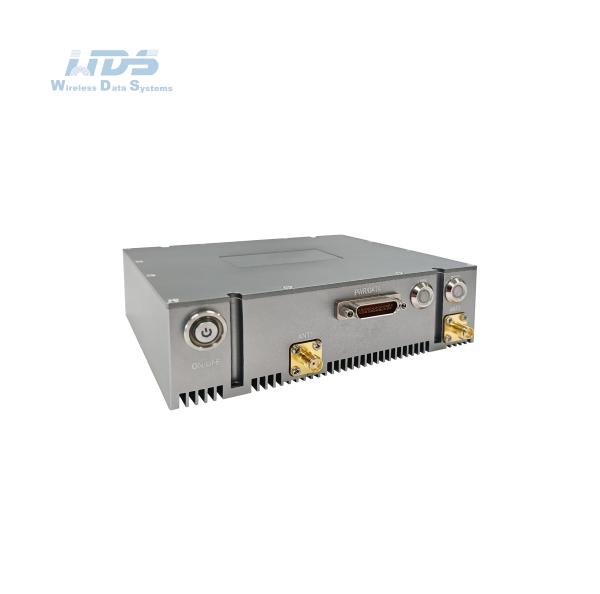

DDL Airborne Radio

The new DDL series wireless digital data link is a low-cost long-distance video&data transmission product with small size, light weight, 2X2 MIMO, complete functions and rich frequency bands. DDL series based on SDR software defined radio platform with 2X2 MIMO, It adopts Beamforming, Maximal Ratio Combining (MRC), Maximal Likelihood(ML) algorithm, low density parity check (LDPC) coding, intelligent frequency selection and autonomous frequency hopping technology to achieve strong radio frequency performance and strong anti-jamming. DDL series data link radio provides ultra-long distance, low latency, bidirectional multi-channel network video&data&voice integrated wireless transmission. The world's leading code-modulated physical layer waveform technology and flexible anti-jamming and secure encryption design for the unmanned field are applied to reliable remote data links for UAVs, helicopters, robots, unmanned ships, unmanned vehicles and special vehicles.
DDL UHF Mesh Network Airborne HF Radio IP68 Waterproof
DDL Airborne Radio Specifications
General

Frequency Range

 320-450/450-550/550-700MHz,1000-1300/1300-1500MHz, 1.8-2.2/2.2-2.5GHz,4.4-5.0/5.0-6.0GHz,70M-6GHz Customized
Channel Bandwidth 1.25/2.5/5/10MHz Adjustable
Modulation Mode COFDM, DSSS-CCK/BPSK/QPSK/16QAM/64QAM (Adaptive)
Throughput 70Mbps@10MHz/25Mbps@5MHz/10Mbps@2.5MHz/
4Mbps@1.25MHz
Sensitivity -102dBm@5MHz
Transmission
Distance (line-of-sight)		 over 80 km (1Watts x 2),over 100 km (2Watts x 2),
over 150 km (10Watts x 2),over 200 km (20Watts x 2)
Transmission Power 1Watts x2/2Watts x2
10Watts x2/20Watts x2
Networking Capabilities
Communication Mode Point-to-point, point-to-multipoint and multipoint-to-multipoint,
Reapter
Network Topology Centerless of no-master/slave to MPtoMP
Wireless Protocol 1000-1200/1300-1500,1200-1700*MHz
MIIT HTDMA
Network Protocol IPv6,QoS,DNS,HTTPS,IP,ICMP,NTP,DHCP,VLAN
Encryption DES56/AES128/AES256
Anti-jamming Intelligent frequency selection/Autonomous frequency hopping
Mobility Support movement speed greater than 200 km/h
Transmission Delay Less than 10 ms
System Parameters
Interface Network port (IP/WiFi), Serial port (232/485/422/TTL,Sbus/USB/Bluetooth),Audio port (MIC-SP-PTT/VoIP),4G-5G Public Network Routing/4G LTE/Satellite/Fibe
Video Interface IP,HDMI/SDI,CVBS
Local/Remote Management PC terminal Web browsing, Mobile APP: topology, node
and link status, distance monitoring, whole network parameter configuration, software upgrade and other functions
System Upgrade Support one-click upgrade, remote upgrade
Positioning Function GPS/BDS
Power Supply 12-36VDC,1Watts×2/2Watts×2
14.8-36VDC,10Watts×2
18-36VDC,20Watts×2
Power consumption Operation 1-2A/Standby 0.5-0.7A@12V,1Watts×2/2Watts×2
Operation 3-6A/Standby 0.7-0.9A@16.8V,10Watts×2
Operation 6-10A/Standby 0.7-0.9A@20V,20Watts×2
Physical Properties
OperatingTemperature -40℃~ 80℃
Protection Level IP65,IP66/IP67(Customized)
Size/Weight 11.7x6.2x1.9cm/149g(1Watts×2/2Watts×2 Airborne Radio-Lron Gray )
11.7x6.2x4.2cm/364g(1Watts×2/2Watts×2 Airborne Multi-interface Radio-Black)
12.7x11.0x3.3cm/635g(10Watts×2/20Watts×2 Airborne Radio-Lron Gray)
Price(The specifications are different, the price is different)
1Watts×2 Airborne Radio $950/unit
2Watts×2 Airborne Radio $1450/unit
10Watts×2 Airborne Radio $2450/unit
