Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ3257N3847A
Certification :
ISO/3C/BV/IFA/SGS
Place of Origin :
China
MOQ :
1 Unit
Price :
USD40000-USD42000/UNIT)negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3,000units per month
Delivery Time :
25 working days after received your advance payment
Packaging Details :
Nude or Waxing in Roro or bulk ship
Product Name :
Tipper Dump Truck
Model :
ZZ3257N3847A
Drive type :
LHD 6X4
Emission Standard :
Euro 2
Engine :
WD615.47, 371HP
Cargo body :
5800*2300*1500mm
Loading capacity :
30-40tons
Steering :
ZF8118
Transmission :
HW19710, HW20716, AMT
Hydraulic system :
HYVA hydraulic cylinder and oil tank
Description

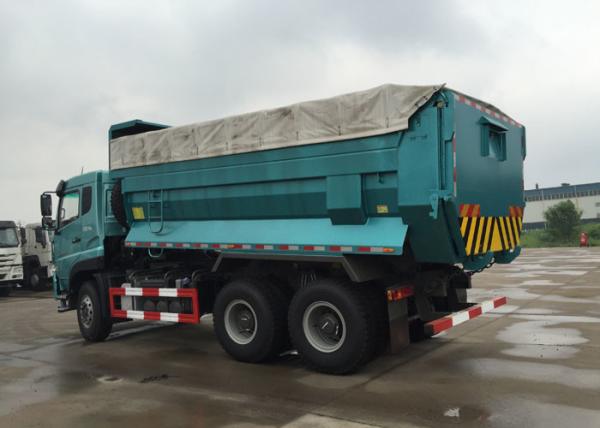

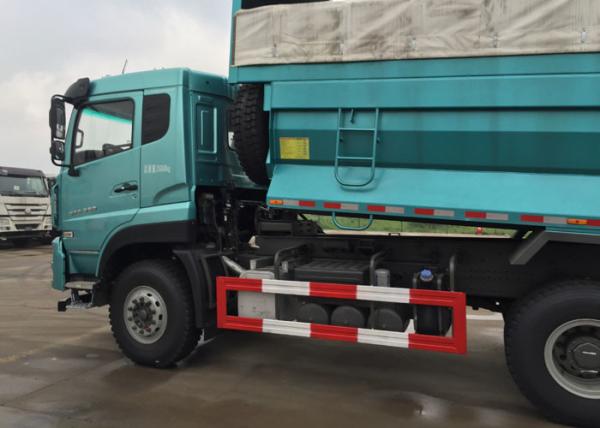

SINOTRUK Dump Truck 25 - 40 Tons For public Works carrying construction material

Description:

SINOTRUK Dump Truck 25 - 40 Tons For public Works carrying construction material

In 2009, Chinese sinotruk sold more than 120 thousand vehicles, heavy truck enterprises among the world's top three target is 150 thousand units, according to the analysis of Chinese's internal, more than 160 thousand vehicles even reached 170 thousand vehicles are possible. Because the first half of the hot market is set, the key to see the second half of the year. But for the China heavy truck, under such sales China, heavy truck not only achieved rapid growth of scale, but also in the leading heavy truck high-end luxury trend.

In an interview with director Wang Yiping, he had a document listed on the company's global Manchester seven major suppliers, Wang Yiping told reporters that he had just returned from Germany 's company, although Europe coincides with the volcano ash stuck in Germany for more than more than and 10 days, technicians but he has more opportunities and learning. Wang Yiping Mann China said, heavy truck and Grumman cooperation to accelerate the company's global supplier, Manchester seven will be Chinese truck oriented global sourcing supplier.

High efficiency, high horsepower, low fuel consumption, lightweight, seemingly contradictory, but these contradictions is precisely the combination of heavy truck development trend, Chinese heavy truck enterprises is the combination of these seemingly contradictory into a harmonious unity. China's HOWO A7 is such a representative. In terms of configuration or design, vehicle matching suppliers, have their own control of the supply chain, the self-made high degree of China heavy truck, is leading the trend of heavy truck industry.

Specification:

SINOTRUK Dump Truck 25 - 40 Tons For public Works carrying construction material
Model ZZ3257N3847A
Drive Type 6×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating

with air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body

5800×2300×1500(mm),Bottom:8mm, Side:6mm

The curb weight 12200(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:

It used for Mining industry, Construction business, docks and so on. Especially for public works.

Competitive Advantage:

1) professional import and export dealing precedure, make customs clearance more high efficiency

2) using the high strength steel, make it has a long service life

3) strong enough engine

4) low fuel consumption

5) with all kinds of truck model, which can fulfil your requirements

6) excellant apperance of cabin, safety, reliable

7) all kinds of cargo body structure can be designed and produced according to your request,

make it have light curb weight , high rigidity , high loading capacity

8) quick and efficient spare parts supply bring you more convenient

9) fast delivery time, we can arange production according to your needs exactly and quickly

10) competive price, cost-effective

11) The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and running efficiency.

12) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

13) The hydraulic sytem using HYVA brand or Domestic famouse brand

SINOTRUK Dump Truck 25 - 40 Tons For Public Works Carrying Construction MaterialSINOTRUK Dump Truck 25 - 40 Tons For Public Works Carrying Construction Material
