Tractor Truck SINOTRUK Golden Prince RHD 6X4 Euro2 290HP ZZ4251M3241W
Description:
Tractor Truck SINOTRUK Golden Prince RHD 6X4 Euro2 290HP ZZ4251M3241W

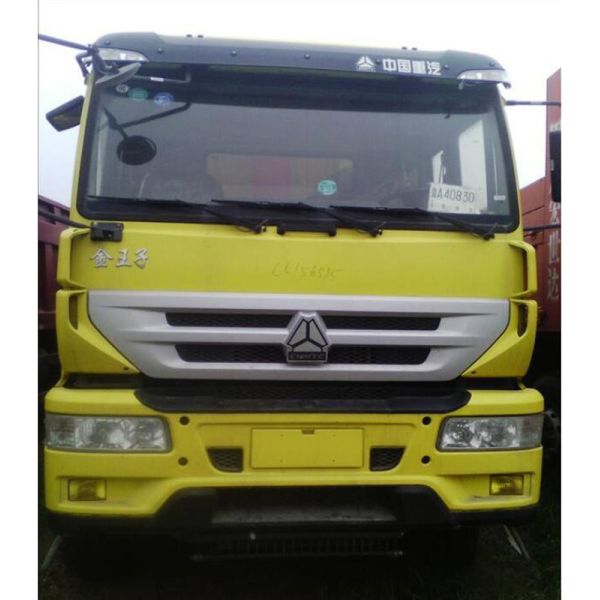

Golden Prince Tractor truck adopts the MAN technology L2000 Cab,with advantages of
compact structure,decent line spaciously comfortable,wide view , big open angle of door,
big angle of cab tilt and easy for maintenance. It is equipped with SINOTRUK engine,
SINOTRUK HW series gear box, single or double reduction driving axles, it has the feature
of light self weight, strong carrying capacity, strong power, high reliability, strong
grade ability and high economic vehicle speed,etc.
Gold Prince Tractor Truck, divide into two editions: highway version and the 5 version of
the integrated operating conditions. In accordance with the drive form is divided into
6X4 and 4X2,6X2 models.Edition 5 6X4 models, the standard double deck frame; four U-
bolts; #90 saddle; 10 gear box (according to the conditions of the road can choose
different torque changing power output), the HC16 double rear axle rear axle(according to
the actual conditions to select the appropriate speed ratio); the front axle of HF9 or
HF7 (9 tons or 7 tons of front axle, drum and disc brake type), the engine from 266HP to
336HP (maximum horsepower is 336HP, emission standard can choose Euro2 and Euro3),
Steering is D50 model (optional ZF steering); 12R22.5 tubeless tyres (can according to
customer needs selection of domestic and imported tire brand).
Specification:
Tractor Truck SINOTRUK Golden Prince RHD 6X4 Euro2 290HP ZZ4251M3241W | ||||
Model | ZZ4251M3241W | |||
Drive Type | 6×4 | |||
Engine |
| |||
Cabin | L2000 medium length cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW15710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | D50 hydraulic steering with power assistance. | |||
Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
Rim/ Tire | 12R22.5 tubeless tyre 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3200(mm) | |||
Overall dimension | 6520×2490×3070(mm) | |||
Fifth Wheel | #50, #90 | |||
The curb weight | 8500(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 90km/h | |||
Color | White, red, green, golden and so on. |
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and
Mining area .
Competitive Advantage:
1) it has higher safety and running efficiency.
2) excellent appearance of cabin, safety, reliable
3) low fuel consumption
4) strong enough engine
5) with all kinds of truck model, which can fulfill your requirement
6) the key parts adopt the world's top technology products
7) based on strong technical support and top level technology make the trucks with high quality and more
reliable
8) competitive price, cost-effective
9) quick and efficient spare parts supply bring you more convenient
10) fast delivery time, we can arrange production according to your needs exactly and Quickly
11) professional import and export dealing procedure, make customs clearance more high efficiency
