Tipper Truck SINOTRUK HOWO A7 Front Lifting 30 - 40tons RHD 6X4 for Construction
Description:
1. Oil saving, safety, driving comfort, reliability, low application cost
2. Engine, Sinotruk engine, 290HP
3. front lifting type
4. Tipper body: square or U-shaped
5. Tipper body: 15 to 20cbm
6. Heavy-duty load capacity: 30 to 40 tons
7. Hydraulic system: Chinese famous brand
Specifications:
SINOTRUK HOWO A7 Dump Truck 30 - 40tons RHD 6X4 for Construction material loading | ||||
Model | ZZ3257M3847N1 | |||
Drive Type | 8×4 | |||
Engine |
| |||

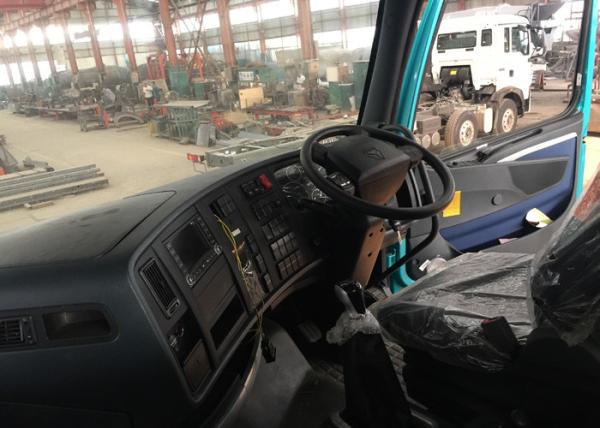

Cabin | A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW13710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3800+1350(mm) | |||
Overall dimension | 8575×2496×3450(mm) | |||
Cargo body | 5800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 12300(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1)with all kinds of truck model, which can fulfil your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high
quality and more reliable
4)Optimized cargo body structure,light weight,high rigidity,large loading capacity
5)Using the high strength steel,it has long service life
6)Optimized the sealing structure has the better sealing effect.
7)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running
efficiency.
8)Multiple box structures and device selections
9)low fuel consumption
10) strong enough engine
11)competive price, cost-effective
12)quick and efficient spare parts supply bring you more convenient
13)fast delivery time, we can arange production according to your needs exactly and
quickly
14) professional import and export dealing precedure, make customs clearance more high efficiency
After 10 years of struggle, China National Heavy Duty Truck Group Co. Ltd. has grown into the heavy truck has greater influence and coverage of backbone enterprises.
Our advantage
1.We have much years history in manufacture various trailers.We have our own factory, in this case,we can give your a more reasonable price with high quality.
2.Integrated production, scientific research & development and professional sales teams, all
those advantages can provide the full service of trailers, semi-trailers, tractor head, dump
truck, engineering machinery and trailer parts.
