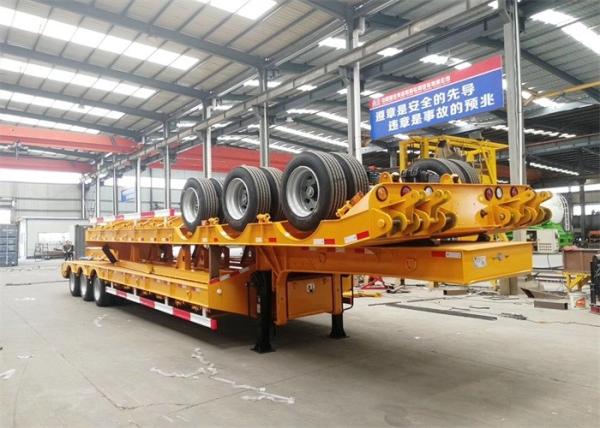

3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer
Specifications
Brand Name :
sinotruk
Model Number :
9401TD
Certification :
SGS/ISO/VGA
Place of Origin :
China
MOQ :
1unit
Price :
US$10000-$15000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 units/month
Delivery Time :
10-15 working days
Packaging Details :
Nude/Waxed
Type :
Low Flat Semi Trailer
Axle :
3-4pcs
Loading :
80 tons
Tyre :
12.00R22.5
Size :
12.5*2.4*1.5
Suspension :
Mechanical or Air
Landing Gear :
JOST
Brake System :
WABCO
King pin :
2.0 or 3.5 inch
Color :
Customers Optional
Description

3 Axles Concave Beam Lowbed 60 Tons Low Deck / Bed Trailer for sale

SINOTRUK TRAILERS

3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer

3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer

3 Axles Concave Beam Low Bed 60 Ton Low Deck Trailer

Tare Weight
About 8.5-13T
Dimension
12000mm-18000mm*2500mm-3500mm*1650mm
Please indicate the working platform height and length.
Loading Capacity
60T/80T/100T/120T
Axle
13 T/16T, FUWA /BPW /Huajing Brand
Rim
6.5-20/7.5-20/8.00-20/8.5-20
Tire
8.25R20/10.00R20/11.00R20/12.00R20
Suspension
Mechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand )
Spring leaf
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pin
JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg
JOST brand D200T or China brand 28Tons (Double speed)
Main beam
Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm,
down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam
16mm -25mm channel steel ( Material is Q235steel ).
Ladder
Manual or Hydraulic type
Gooseneck
For choose
Brake chamber
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS
Optional
Twist Locks
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve
WABCO valve
Light
LED light
Voltage
24V
Receptacle
7 ways (7 wire harness)
Tool box
One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking
bar)
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:
By bulk cargo carrier, RORO or 40HQ container.
