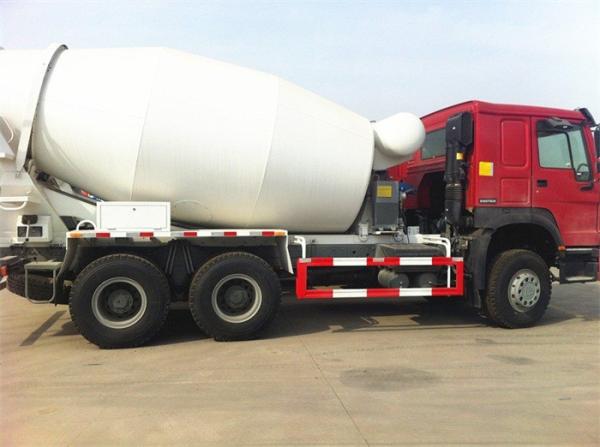

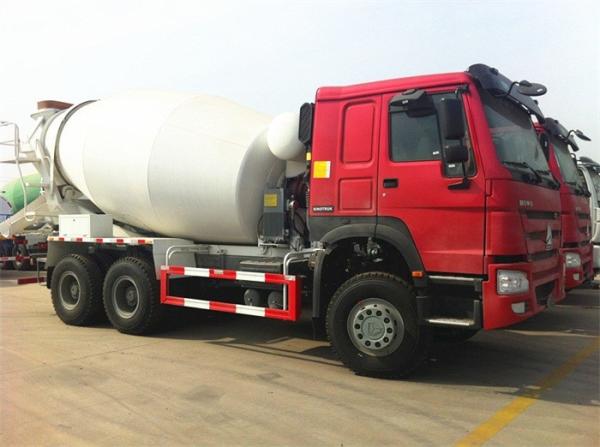

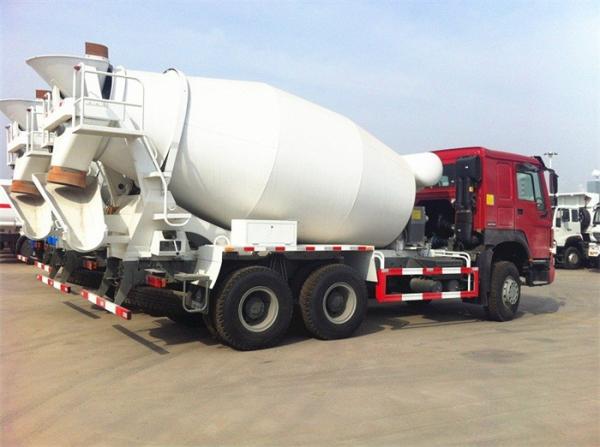

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck
15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck
15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck
15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck
15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck
15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck
15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck
15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ1257N3247
Certification :
ISO/3C/BV/IFA/SGS
Place of Origin :
China
MOQ :
1unit
Price :
US$35000-USD55000/unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 units per month
Delivery Time :
15-20 working days after deposit or LC
Packaging Details :
Nude, Waxing in RORO or bulk ship
Manufacturer :
SINOTRUK (CNHTC)
Series: :
HOWO
Product Name: :
Concrete Mixer Truck
Chassis Model: :
ZZ1257N3247W
Drive Type: :
6X4, LHD
Engine: :
WD615.47, 371HP, Euro II
Mixer Tank Vol. :
8-15 cbm
Loading Capacity: :
25-30 tons
Cabin: :
HW76,1 Beth
Transmission: :
HW19710
Description

High Quality SINOTRUK HOWO 6x4 12 Cubic Meters Mounted Concrete Mixer Truck

SINOTRUK HOWO Mixer Truck, the best choice for you!

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck

The new factory covers an area of 360mu and a building area of 42,000m2, and has 360 sets of various advanced equipment, and a staff of over 600 people including more than 60 professionals. Now, the company can yield 7,000 dumpers and van vehicles and 3000 tank trucks annually, and will realize an annual production capacity of 15,000 refitted vehicles in 2012.

The company has been certified to ISO9001:2000 and China Compulsory Certification (CCC) and been granted with Production License for Dangerous Chemical Packaging Materials and Containers by General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China. The products are widespread across the country with service outlets set up in many provinces and cities, are deeply popular with customers, and are exported to Russia, Mongolia, Middle East, Southeast Asia, South America, Africa, and other countries and regions.

Specifications for HOWO Concrete Mixer Truck 10 cbm
Cabin
Driving Model: 6x4 Left Hand Drive or Right Hand Drive
HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
Condition: brand new
Engine
Model: SINOTRUK WD615.47
Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling.
Emission Standard: Euro II
Displacement: 9.726L
Transmission
HW19710 manual gearbox, 10F & 2R
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering
ZF power steering, model ZF8118, hydraulic steering with power assitance
Front Axle
HF9, 1x9000 KGS
Steering with doubleT-cross section beam
Rear Axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 4.8
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires
315/80R22.5 or 12R22.5, tubeless tires with one spare tire.
Optional: 12.00R20, radial tires
Fuel Tank
400 L
Tank Body
10-12 CBM, with Italy brand motor, speed reductor and hydraulic system
Overall Dimension
9040x2496x3850 mm

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck


15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck

Mixer Tank:

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck

By Roro or Bulk or Flat Rack Container according to your specific requests.

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck

15 Cbm Concrete 6x4 12 Cubic Meters Mounted SINOTRUK Mixer Truck

Warranty & After Sale Support

Warranty
Guarantee the main parts engine, gearbox and axles for one year or within 100,000 Kilometers (which comes first) under regular maintenance and correct operation.


After Sale Support
Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);
Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
