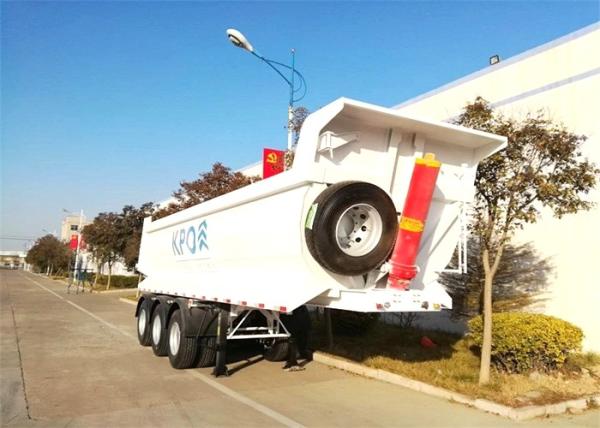

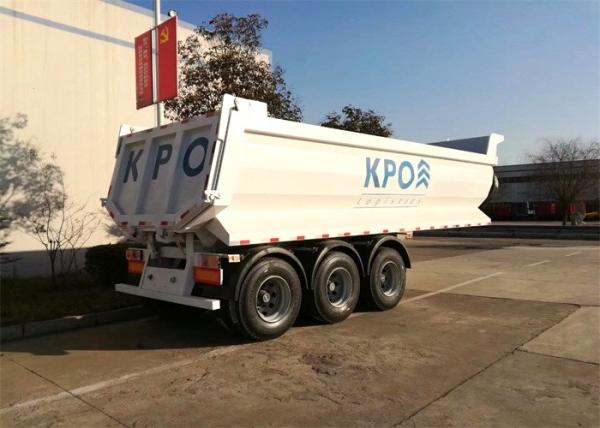

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer
Specifications
Brand Name :
SINOTRUK
Model Number :
DX945865789VP
Certification :
CE/ADR/DOT
Place of Origin :
China
MOQ :
1unit
Price :
US$10000-15000US$/UNIT
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 units per month
Delivery Time :
10-15 working days after deposit or LC
Packaging Details :
According customer request
Use :
Truck Trailer
Type :
Dump trailer
Material :
Steel
Size :
11500mm*2500*2850mm
Max Payload :
40-100 Tons
Axle brand :
Fuwa/BPW
Axle loading :
13,16,20,22 tons
Suspension :
Mechanical/Air Suspension
Tire :
11.00r20 or 12r22.5
King pin :
2"(50mm)or3.5"(90mm) JOST
Landing Gear :
JOST Brand Two-speed
Leaf Spring :
90(W)mm*13(Thickness)mm*10(Layer)
Vehicle Paingting :
Electrophoresis paint
Dump box :
Bottom 4 mm side 3 mm
Lifting Cylinder :
HYVA
Description

Truck Dump Trailer 2020 New Red Dump Semi Trailer Tipper Truck Trailer

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

Model 3 axles Rear Dump Semi Trailer 45 CBM /50000KG 30-100ton
Wheel Base 1310 (mm)
Tyre Specifications 12R22.5
No. Of the Tyres 12 pcs ISO Certificated
Axle 13Tonnage
No. Of the Axles 3pcs
Landing Gear 28 ton capacity Fuwa with static capacity of 80T
Suspension Heavy duty mechanic suspension with 10 pcs leaf spring
King Pin 2’ and 3.5’ inter-changeable traction pin
Departure Angle 15
Front/Rear Overhang 1900 mm
Material of the Main Beam

Automatic submerged arc welded

Main beams Q345B/ST52-3, through cross beams Q235

Body material Q235B manganese plates, automatic submerged arc welded
Brake System

Automatic air brakes

Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber.
Colour As the buyers’ request
Accessory One tooling boxes ,Two spare tire carrier, Two fire extinguisher
Dimension 125000x2500x3200 mm
Net Weight 11T
Side Wall Thickness 6mm, bottom 8mm
Spare tire carrier 1 set
Electrical System 24V, 7core socket, lights according to European standards.
Tool Box 1 box of standard tools

SINOTRUK TRUCK DUMP TRAILER

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck TrailerSemi Trailer Red Dump 45 CBM 3 Axles Tipper Truck TrailerSemi Trailer Red Dump 45 CBM 3 Axles Tipper Truck TrailerSemi Trailer Red Dump 45 CBM 3 Axles Tipper Truck TrailerSemi Trailer Red Dump 45 CBM 3 Axles Tipper Truck TrailerSemi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer


Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

We have perennial cooperation suppliers of raw materials with really good quality and have certain amount reserve, saving cost and production cycle, and make the product standardization. Constantly updated product design, technology is guaranteed.

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck TrailerSemi Trailer Red Dump 45 CBM 3 Axles Tipper Truck TrailerSemi Trailer Red Dump 45 CBM 3 Axles Tipper Truck TrailerSemi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

We have advanced Instrument and equipment, professional engineers, assemblyline production of standardized products, the workers have many years of work experience, they have efficient work and products have meticulous workmanship.

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck TrailerSemi Trailer Red Dump 45 CBM 3 Axles Tipper Truck TrailerSemi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

Semi Trailer Red Dump 45 CBM 3 Axles Tipper Truck Trailer

Q: What’s your MOQ? A: One unit

Q: How can I get your trailer? A: I will shipping trailer to your port after you pay money

Q: What’s your payment terms? A: 100% TT or L/C before shipping your trailer

Q: Can I paint my logo on trailer? A: Of course, you can send me your company logo, then we will design it
