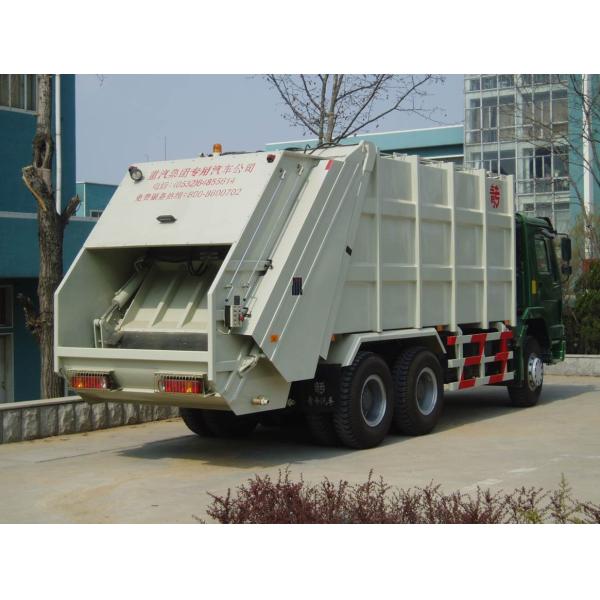

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ3257M3841
Certification :
ISO/3C/BV/IFA/SGS
Place of Origin :
China
MOQ :
1unit
Price :
US$45000-US$60000/unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 units per month
Delivery Time :
30-35 working days after deposit or LC
Packaging Details :
Nude, Waxing in RORO or bulk ship
Manufacturer :
SINOTRUK (CNHTC)
Series: :
HOWO
Product Name: :
Refuse Compactor, Garbage truck, garbage collection truck, garbage compactor
Chassis Model: :
ZZ3257M3841
Drive Type: :
6X4, LHD
Engine: :
WD615.69, 336HP, Euro II
Tank Vol. :
2.5m3
Loading Capacity: :
20tons
Cabin: :
HW76,1 Beth
Transmission: :
HW19710
Description

SINOTRUK (CNHTC) HOWO Refuse Compactor, Garbage truck, garbage collection truck, garbage compactor

SINOTRUK HOWO Refuse Compactor Truck, the best choice for you!

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Our refuse compactors (waste compactors) are widely used to compact household garbage, commercial wastes and industrial refuse of nonhazardous and with no rusty and no radioactivity.

With payloads of 3—15 tons, the machine is designed with both hand and automatic controls system with the specialties of large volume, high efficiency, better sealing and easy for service so that they are widely used in municipal refuse handling, commercial and industrial garbage operations.

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Chassis Model ZZ3257M3841
Engine Brand SINOTRUK HOWO
Model WD615.87, Euro II
Maximum Output 290hp
Rated engine power (kW/r/min) 213/2200
Transmission HW15710, 10F/2R, Manual
Front Axle Model HF9
Max.Loading 9000kg
Rear Axle Model HC16
Max.Loading 32000kg
Steering ZF8098
Max. Speed 90km/h
Overall Dimension 9695x2500x3290mm
Gross Vehicle Weight 25000kg
Dead Weight 11840kg
Tyres 12.00R20 Radial tyre
Cab Model HW70, No sleeper
Air Conditioner With
Rated Loading Capacity 14670kg
Volume Of Filler 2.5m3
Time Of One Loading Cycle ≤25s
Time Of One Disloading ≤60s
Pressure Of Fluid System 20Mpa
Max Compression Force ＞250000kgf
Front,Rear Capacity Of Drain Tank 20
Time Of Lift Filler 8-10s

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

1. The hydraulic system adopted double-pump double-loop structure which avoided system heating phenomenon and thus reduced power dissipation.
2. The garbage truck adopts both manual and automatic hydraulic control system;
3. L-type sealing ribbon and hydraulic locking device is adopted and thus effectively guaranteed the sealing between the feeding machine and the carriage and avoided sewage leaking;
4. High compression ratio for the wastes are compressed by two sides;
5. Fuel saving: While feeding wastes, the motor will accelerate synchronously;
6. Stable operation and low noise.

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

By Roro or Bulk or Flat Rack Container according to your specific requests.

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

1, the whole truck warrenty is 1 year or 50000km, base on whichever comes first.

2, professional sevice team, enough spare parts to make you away from future worries.

3, professional trainning teachers for your drivers or engineers on repair and maintenance

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck

Garbage Collection SINOTRUK CNHTC Refuse Compactor Truck
