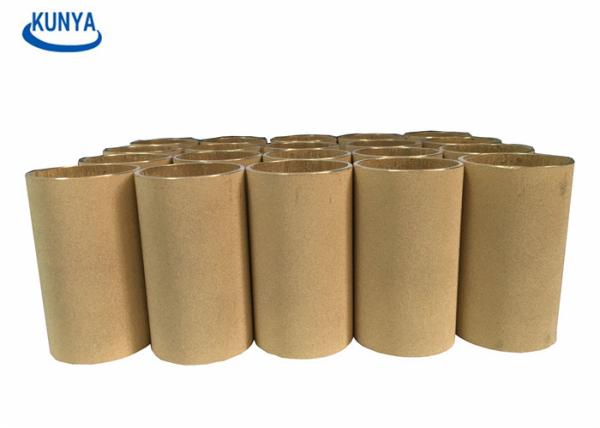

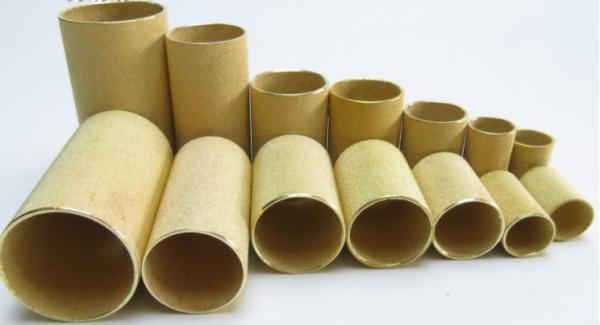

Micro Porous Powder 1000mm Length Sintered Bronze Filter Element
Micro Porous Powder 1000mm Length Sintered Bronze Filter Element
Micro Porous Powder 1000mm Length Sintered Bronze Filter Element
Micro Porous Powder 1000mm Length Sintered Bronze Filter Element
Specifications
Brand Name :
KUNYA
Model Number :
KYF21415E
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
165200 Pieces per month
Delivery Time :
25 days
Packaging Details :
wooden case
Product name :
Sintered Metal Powder Filter
Filter rating :
0.2um-100um
Shape :
customized
Process :
Sintered
Color :
Stainless Steel, Bronze
Application :
filtration system & flow control
Working temperture :
-200℃-600℃
Material :
Stainless Steel, Titanium,Bronze
Type :
Filter Elements, Custom
Length :
5-1000mm
Description

Micro Porous Powder Sinter Filter Sintering Bronze Filter Sintered Metal Powder Filter

Sintered Metal Powder Filter Introductions

KUNYA manufactures filter in a broad range of materials, sizes, and fittings so they can be easily specified with the characteristics and configurations customers require. We can incorporate custom features or create completely original filter designs for specialized needs. Our filter also come a variety of different alloys, each with their own special benefits and application purposes. They are a popular choice for many industrial filtration applications due to their heat, corrosion, and physical wear resistance.

1/Filter fineness: 1-100 microns

2/Easy to install
3/Structure strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa, etc
4/Completely interchangeable with original element
5/Wide range of types are available
6/Any size
7/Sample is available
8/Energy efficient filters
9/High integrity design to save your space
10/OEM product is welcomed

Material: stainless steel,brass,bronze

Category: stainless steel powder sintering, stainless steel nets sintering, bronze powder sintering, mesh sintering

Filtration precision: 2-150 micron

Structure: flake, Cartridge, tube, tubular shape, the goblet, bowl, plate, tapered, T shape, Cap shape, cylindrical clavite, Housing

Micro Porous Powder 1000mm Length Sintered Bronze Filter Element

Sintered Metal Powder Filter Features

Applications for sintered stainless steel powder filter element:

· Dust, bacteria and oil fog removal of gas and steam.

· Noise reduction, gas buffer.

· The recycle of catalysts.

· Decarburization filtration.

· Viscous liquid filtration.

· Strong polar solvent filtration.

· Retention of particles from off-gas of fluidized beds.

· The filtration and separation of pharmaceutical, beverage, food, metallurgy, petroleum and other fields.
Features:

· High filtration efficiency.

· High mechanical strength.

· High permeability and porosity.

· Anti-corrosion and anti-pressure.

· Even distribution of pores catalysis recycling accurate filtering.

· Can be used at high and low temperature.

· Easy to clean and can be used for many times.

· Long service life.
Specifications:

· Item: sintered stainless steel powder filter element.

· Material: stainless steel powder.

· Thickness of wall: 1.0 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, etc.

· Length: 10", 20", 30", 40".

· Working Temperature: -200 °C to 1000 °C.

Sintered Metal Powder Filter Uses
Material
Pure titanium/316L powder
Filter Rating
0.5um-50um
Porosity
30-45%
Penetrability
3-800M³/M²hKPa
Working pressure
2.0MPa
Operating temperature
300℃
Shape
Disc,sheet,tube,round bar,cap
Specific surface area
10-40cm²/cm³

Sintered Metal Powder Filter Types

Name
Filter rating 5-70um sintered powder porosity tube metal filter
Production
Diameter (Width)
Thickness
Customized
Sintered porous round discs
φ5-φ400mm
φ5-φ400mm
1-20mm
Yes
Sintered porous sheets
5-600mm
5-400mm
1-20mm
Yes
Sintered porous tubes
100-1200mm
φ20-φ200mm
1-10mm
Yes
Sintered porous cartridge
100-1200mm
φ20-φ200mm
1-10mm
Yes

Micro Porous Powder 1000mm Length Sintered Bronze Filter Element

Micro Porous Powder 1000mm Length Sintered Bronze Filter Element

Micro Porous Powder 1000mm Length Sintered Bronze Filter Element

Micro Porous Powder 1000mm Length Sintered Bronze Filter Element

Micro Porous Powder 1000mm Length Sintered Bronze Filter ElementMicro Porous Powder 1000mm Length Sintered Bronze Filter Element

Micro Porous Powder 1000mm Length Sintered Bronze Filter Element

Micro Porous Powder 1000mm Length Sintered Bronze Filter Element

Micro Porous Powder 1000mm Length Sintered Bronze Filter ElementMicro Porous Powder 1000mm Length Sintered Bronze Filter Element

Micro Porous Powder 1000mm Length Sintered Bronze Filter Element
