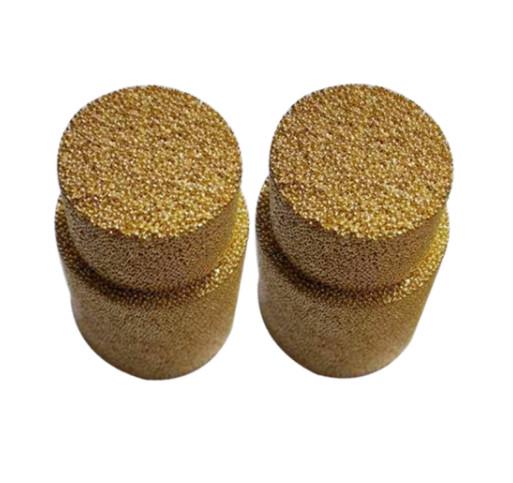

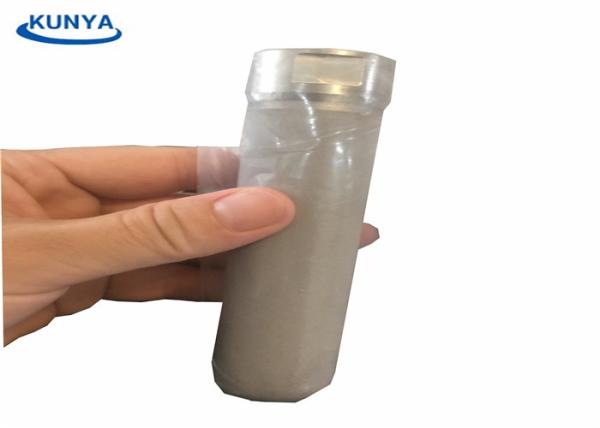

Stainless Steel 304 120um Porous Sintered Metal Filter Disc
Stainless Steel 304 120um Porous Sintered Metal Filter Disc
Stainless Steel 304 120um Porous Sintered Metal Filter Disc
Stainless Steel 304 120um Porous Sintered Metal Filter Disc
Stainless Steel 304 120um Porous Sintered Metal Filter Disc
Stainless Steel 304 120um Porous Sintered Metal Filter Disc
Specifications
Brand Name :
KUNYA
Model Number :
KYF21453
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
165200 Pieces per month
Delivery Time :
25 days
Packaging Details :
wooden case
Product name :
Sintering Filter Disc
Filter rating :
0.2-120um
Usage :
Liquid Filter
Process :
Sintered
Color :
Stainless Steel, Bronze
Application :
Filtration System Flow Control
Working temperture :
-200℃-600℃
Material :
Metal, stainless steel SS 304/316L, bronze
Type :
Filter Elements
Length :
5''/10'' / 20'' / 30''/ 40''
Description

Sintered Porous Metal Stainless Steel 304 / 316l Wire Mesh Powder Sintering Filter Disc

Sintering Filter Disc Introductions

KUNYA manufactures filter in a broad range of materials, sizes, and fittings so they can be easily specified with the characteristics and configurations customers require. We can incorporate custom features or create completely original filter designs for specialized needs. Our filter also come a variety of different alloys, each with their own special benefits and application purposes. They are a popular choice for many industrial filtration applications due to their heat, corrosion, and physical wear resistance.

1.0.2-100 microns
2.Stainless steel,Copper, brass,titanium
3.OEM,Non-standard
4.Mesh sintered

Stainless Steel 304 120um Porous Sintered Metal Filter Disc

Material: stainless steel,brass,bronze

Category: stainless steel powder sintering, stainless steel nets sintering, bronze powder sintering, mesh sintering

Filtration precision: 2-150 micron

Structure: flake, Cartridge, tube, tubular shape, the goblet, bowl, plate, tapered, T shape, Cap shape, cylindrical clavite, Housing

Sintering Filter Disc Features

Applications for sintered stainless steel powder filter element:

· Dust, bacteria and oil fog removal of gas and steam.

· Noise reduction, gas buffer.

· The recycle of catalysts.

· Decarburization filtration.

· Viscous liquid filtration.

· Strong polar solvent filtration.

· Retention of particles from off-gas of fluidized beds.

· The filtration and separation of pharmaceutical, beverage, food, metallurgy, petroleum and other fields.
Features:

· High filtration efficiency.

· High mechanical strength.

· High permeability and porosity.

· Anti-corrosion and anti-pressure.

· Even distribution of pores catalysis recycling accurate filtering.

· Can be used at high and low temperature.

· Easy to clean and can be used for many times.

· Long service life.
Specifications:

· Item: sintered stainless steel powder filter element.

· Material: stainless steel powder.

· Thickness of wall: 1.0 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, etc.

· Length: 10", 20", 30", 40".

· Working Temperature: -200 °C to 1000 °C.

Sintering Filter Disc Advantage

Sophisticated Design

Uniform Structure, High Porosity, Low Filtration Resistance And Good Permeability.

Humanized Design
It Has A Strong Affinity To The Human Body, Will Not Cause Harm To The Human Body, And The Operation Is More Assured
Good Performance
High Hardness, Strong Pressure Resistance, High And Low Temperature Resistance,Strong Chemical Properties,
Corrosion Resistance And Long Service Life.
Support Customization
The Material Is Easy To Shape, Stable In Performance, Durable And Can Be Processed Into Various Shapes As Required.

Sintering Filter Disc Types

Name
Filter rating 5-70um sintered powder porosity tube metal filter
Production
Diameter (Width)
Thickness
Customized
Sintered porous round discs
φ5-φ400mm
φ5-φ400mm
1-20mm
Yes
Sintered porous sheets
5-600mm
5-400mm
1-20mm
Yes
Sintered porous tubes
100-1200mm
φ20-φ200mm
1-10mm
Yes
Sintered porous cartridge
100-1200mm
φ20-φ200mm
1-10mm
Yes
