304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration
304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration
304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration
304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration
304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration
304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration
Specifications
Brand Name :
KUNYA
Model Number :
KYF210413B
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
158741000 pieces per month
Delivery Time :
15-20 days
Packaging Details :
wooden case
Product name :
Sintered Filter Elements
Thickness :
1.0mm-5.0mm
Filter rating :
1um-300um
Application :
High viscosity
Usage :
Water treatment Oil products Food beverage
Weave style :
plain weave, twill weave, dutch weave
Mesh count :
1 Mesh - 8000 Mesh
Material :
304SS 316SS 316L
Efficiency :
95 - 99%
Style :
Cylinder Cartridge Candle
Feature :
Excellent Filtration
Shape :
Cylindrical
Description

Stainless Steel 304 316 316L Sintered Metal Filter For Solid Chemical Filtration

Kunya designs and manufactures high-performance sintered metal fiters and filtration material products for all industries such as sintered metal fiber felt, multi-layers sintered wire mesh, ss sintered filter cartridges,porous metal fiters and material-specific filters like sintered nickel filters.

Compare to common metal woven wire mesh,Filson sinter fiters have excellent strength, long lifespan, and good anti-corrosion. Meanwhile, we can offer custom dimensions, materials, and layering configurations to meet your exact specifications.

Please send us your medium kinds,flow rate,fitration accuracy, material request or even ideal sintered meta ifiter elements with other brands, Like Mott filter,CKN sinter metals filters,Norman sintered metal filter elements,then we will quote for you immediately.

304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration

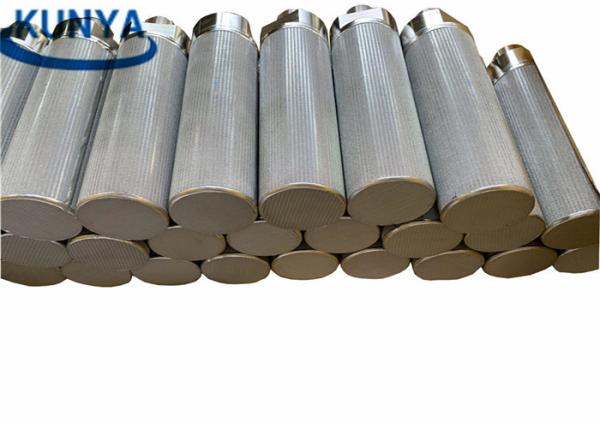

Sintered Metal Filter Details:

The main filter material of Five-layer Sintered Mesh Filter Cartridge adopts standard five-layer sintered mesh which is processed by five-layer stainless steel screen superposition and vacuum sintering. Filters made of this kind of material has some excellent characteristics such as strong corrosion resistance, good permeability, high strength, easy to wash and backwash, accurate filtration precision, clean filter medium, without wire net falling off etc.

Sintered Metal Filter Data:

Name Sintered Woven Wire Mesh Filter Cartridge
Material 304/316/316L
Micron Rate 2-200µm
Pressure Range 1.5-3MPa
Max Temperature 600℃
Certification ISO9001
Feature Wear-resistant, high strength and long service life, unity-structure, not curly, easy to use, acid-resistant , alkali-resistant, corrosion-resistant,heat-resistant.

Sintered Metal Filter Application:

Used for filtration of polyester, water treatment, oil product, pharmaceutical, food and beverage, chemical industry, chemical fiber products and medium filter such as high temperature air.

Sintered Metal Filter Main Connection:

1. Standard interface (e.g 222, 220, 226 etc.)

2. Fast interface connection

3. Threaded connection

4. Flange connection

5. Tie rod connection

6. Special custom interface

Sintered Metal Filter Advantages:

1) high flow, high precision

2) high porosity, permeability, pressure drop very low

3) excellent mechanical strength, resistance to high pressure up to 200Kg

4) easy to clean, backpulsing

5) corrosion resistance, high temperature resistance

6) good processing performance, folding, welding, adhesive

7) design flexibility

8) 80-200l/min - rated flow; working pressure 1.5-2.5pa; filtering area (M2) 0.01-3.0; (m) 2-200. filtering accuracy

304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration

304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration

304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration

304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration

304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration

304 316 316l Sintered Stainless Steel Filter For Solid Chemical Filtration
