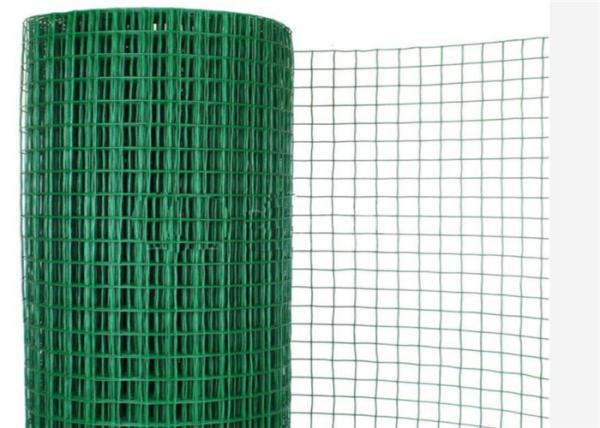

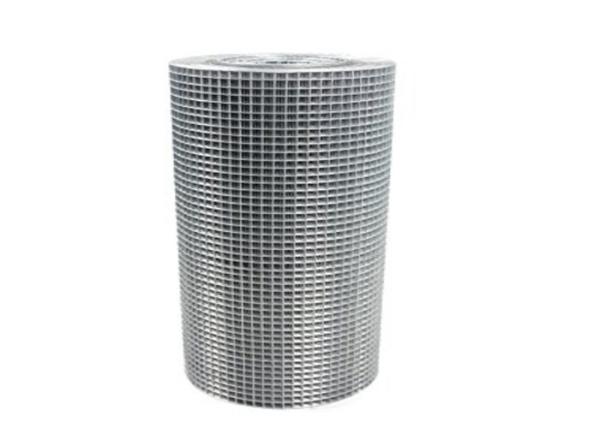

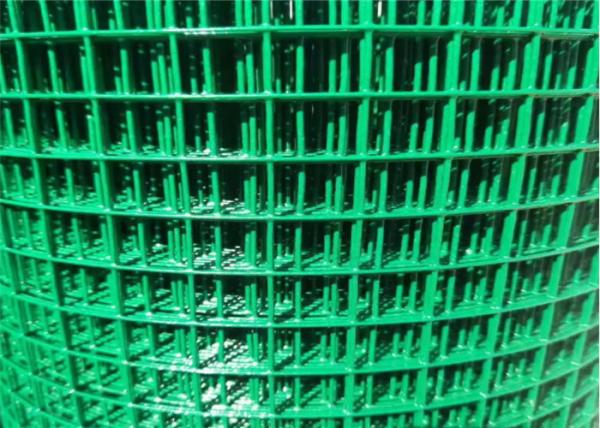

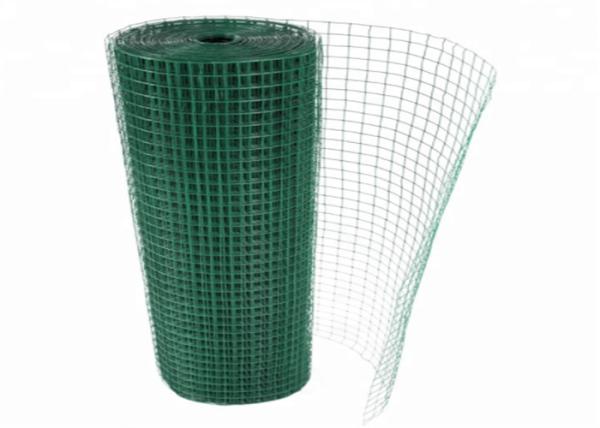

2x2 Stainless Welded Wire Mesh
2x2 Stainless Welded Wire Mesh
2x2 Stainless Welded Wire Mesh
2x2 Stainless Welded Wire Mesh
2x2 Stainless Welded Wire Mesh
2x2 Stainless Welded Wire Mesh
2x2 Stainless Welded Wire Mesh
2x2 Stainless Welded Wire Mesh
Specifications
Brand Name :
KUNYA
Model Number :
KYF-2102163
Place of Origin :
CHINA
MOQ :
1 SQM
Price :
USD$3.65-USD$5.85 per SQM
Payment Terms :
T/T, Western Union
Supply Ability :
84756200 SQM per Month
Delivery Time :
15-25 days
Packaging Details :
pallets
Product Name :
Welded Wire Mesh Panel
Hole shape :
Square
Processing Service :
Bending, Welding, Cutting, Punching
Raw Material :
Q195 Q235 Low Carbon Steel Wire
Application :
Fence Mesh
Wire Gauge :
0.7MM to 4MM
Product name :
hot dipped and electro galvanized welded wire for guard fence
Width :
From 0.3m to 4m
Length :
15m, 20m, 25m, 30m, 45m
Usage :
For guard fence
Description

Welded Wire Mesh

Materials: High quality low-carbon steel wire

Process:Galvanized after welding or galvanized before welding

Finish: Elector-galvanized, hot-dipped galvanized, PVC coated

Uses: Welded Wire Mesh with excellent corrosion resistance and oxidation resistance,widely used in industry, agriculture, construction, transportation, mining, golf course, lawn, aquaculture and other sectors of the fence, decoration, machine protection, and so on.

[Elector galvanized]

Elector galvanizing, uniform coating and thin thickness. Coating are usually only 3-15 microns with bright appearance. Common elector galvanized wire on zinc amount is 8-13 g/m².

[Hot-dipped galvanized]

Hot-dipped galvanized, coated thickness and nonuniform coating. Coating are usually 45-300 microns with darker color and good corrosion resistance. Hot-dip galvanized wire amount of zinc: 30-60 g/m²

Specification List of Welded Wire Mesh
Opening Wire Diameter
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16

Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m

2.Special sizes available at request

3,Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Wire Mesh Fence In Roll

Opening Wire Diameter Roll Size Material
1/4''x1/4'' 6.4x6.4mm BWG24-22 Width: 0.4-3m

Length: 5-50m		 1) Electro Galvanized Wire

2) Electro Galvanized after Welded

3) Hot dipped Galvanized Wire

4) Hot dipped Galvanized after Welded

5) PVC Coated

6) Stainless Steel Wire
3/8''X3/8'' 10.6X10.6mm BWG22-19
1/2''x1/2'' 12.7x12.7mm BWG23-16
5/8''x5/8'' 16x16mm BWG21-18
3/4''x3/4'' 19.1x19.1mm BWG21-16
1''x1/2'' 25.4x12.7mm BWG21-16
1-1/2''x1-1/2'' 38x38mm BWG19-14
1''x2'' 25.4x50.8mm BWG16-14
2''x2'' 50.8x50.8mm BWG15-12
2''x4'' 50.8x101.6mm BWG15-12
4''x4'' 101.6x101.6mm BWG15-12
4''x6'' 101.6x152.4mm BWG15-12
6''x6'' 152.4x152.4mm BWG15-12
6''x8'' 152.4x203.2mm BWG14-12

Welded Wire Mesh Fence In Panel / Sheet

Opening/ Length Opening/ Width Wire Diameter Roll Size Material
25-100mm 10-100mm 2mm Width: 0.5-2.5m

Length: 1-6.5m		 1) Electro Galvanized Wire

2) Electro Galvanized after Welded

3) Hot dipped Galvanized Wire

4) Hot dipped Galvanized after Welded

5) PVC Coated

6) Stainless Steel Wire
25-100mm 10-100mm 2.5mm
25-100mm 10-100mm 3mm
25-100mm 10-100mm 3.5mm
25-200mm 10-200mm 4mm
50-200mm 10-200mm 5mm
50-200mm 20-200mm 6mm
50-200mm 20-300mm 7mm
100-500mm 30-300mm 8mm
100-500mm 30-300mm 9mm
100-500mm 30-300mm 10mm
4''x6'' 101.6x152.4mm BWG15-12
6''x6'' 152.4x152.4mm BWG15-12
6''x8'' 152.4x203.2mm BWG14-12

Welded Wire Mesh Fence Uses

2x2 Stainless Welded Wire Mesh2x2 Stainless Welded Wire Mesh2x2 Stainless Welded Wire Mesh2x2 Stainless Welded Wire Mesh2x2 Stainless Welded Wire Mesh
