Chemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire Mesh
Chemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire Mesh
Chemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire Mesh
Chemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire Mesh
Chemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire Mesh
Chemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire Mesh
Chemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire Mesh
Chemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire Mesh
Specifications
Brand Name :
KUNYA
Model Number :
KYF-122801
Place of Origin :
CHINA
MOQ :
1 piece
Price :
USD$1-USD$80 per piece
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pieces per month
Delivery Time :
15-25 days
Packaging Details :
wooden case
Product Name :
Sintered Metal Filter Tubes
Types :
Sheets Tubes
Layer :
5 layers - More layes
Thickness :
1.7mm-8mm
Application :
Filters
Filter Rating :
1-300um
Width :
500-1000mm
Length :
600-1200mm
Description

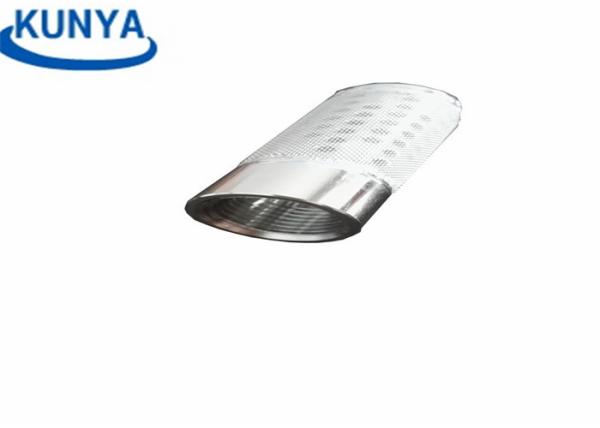

China Manufacture Chemical Filtering Stainless Steel 304 316 316L Sintered Metal Filter Tubes

Sintered Metal Filter Tubes Introductions

Sintered wire mesh is made form multiple layers of woven wire mesh panel together using a sintering process. This creates a unique material offering excellent mechanical properties. It is ideal material for purification and filtration. It may be from 5, 6 or 7 layers of wire mesh.

Sintered Metal Filter Tubes Specifications

Nominal Filter
Rating		 Structure Protective Layer+Control
Layer + Dispersion Layer+Reinforce
Layer+Reinforce Layer		 Thickness(mm) Air
Perm
eabilit		 Bubble
Pressure
(mm		 Weight
(kg/m)		 Porosity(%)
1 100+ 400×2800+100+12×64+64x12 1.7 1.81 360-600 5-layer sintered wiremesh(8.4) 6-layer sintered wire mesh (14.4) 0.4
2 100+325×2300+100+12×64+64x12 1.7 2.35 300-590
5 100+200×1400+100+12×64+64x12 1.7 2.42 260-550
10 100+165×1400+100+12×64+64x12 1.7 3 220-500
15 100+165×1200+100+12×64+64x12 1.7 3.41 200-480
20 100+165×800+100+12×64+64×12 1.7 4.5 170-450
25 100+165×600+100+12×64+64×12 1.7 6.12 150-410
30 100+450+100+12×64+64×12 1.7 6.7 120-390
40 100+325+100+12×64+64×12 1.7 6.86 100-350
50 100+ 250+100+12×64+64×12 1.7 8.41 90-300
75 100+200+100+12×64+64×12 1.7 8.7 80-250
100 100+150+100+12×64+64×12 1.7 9.1 70-190
150 50+100+50+30+30+100+50 2 25 50~150
200 40+80+40+20+40+80+40 2 26 50~150
Note:The 6-layer sintered wire mesh is to add one layer of 12 mesh to the 5-layer sintered wire mesh. lts
thickness is 3.5mm.And it has the higher anti-pressure ability

Sintered Metal Filter Tubes Advantages

* High strength and durability since high temperature sintering;
* Anti-corrosion, and heat resistance up to 480℃;
* Steady filter rating from the 1micron to 100 micron;
* Filter mesh not easy to deform because of two protective layers;
* Can used for uniform filtration in high pressure or high viscosity environment;
* Suits for cutting, bending, punching, stretching, and welding.

Sintered Metal Filter Tubes Types

Main products we provided, 5-Layer / 7-Layer Sintered Wire Mesh, Dutch Woven Sintered Wire Mesh, Perforated Metal Sintered Wire Mesh, Plain Sintered Square Woven Wire Mesh, Sintered Filter Elements, Sintered Mesh Filter Cartridges, Sintered Wire Mesh Filter Disc, Sintered Wire Mesh Laminates, Sintered Wire Mesh filter tube.
Chemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire MeshChemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire Mesh
Chemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire MeshChemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire MeshChemical Filtering Stainless Steel 304 316 316L 1um 1.7mm Sintered Wire Mesh
