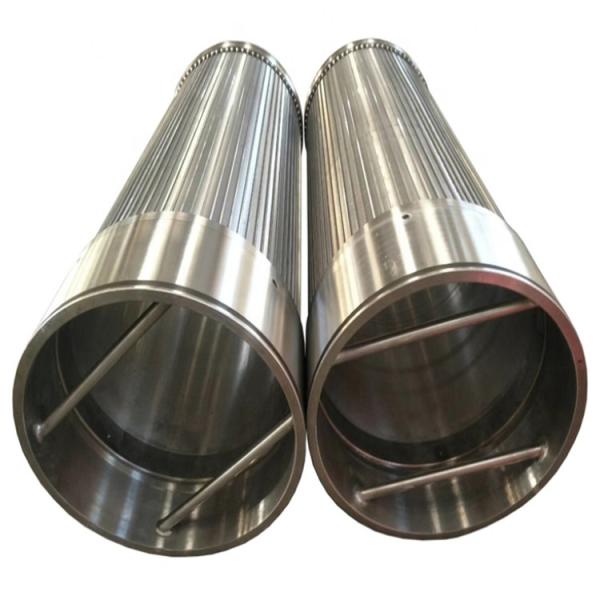

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness
AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness
AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness
AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness
AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness
AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness
AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness
AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness
Specifications
Brand Name :
KUNYA
Model Number :
KYF71527
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
98500 pieces per month
Delivery Time :
15-25 days
Packaging Details :
wooden case
Product name :
Stainless Steel Wedge Wire Filter Mesh
Usage :
Filtration industry
Material :
stainless steel 304 316 316L, Stainless steel 304 316 316L etc
Diameter :
Custom size
Application :
Manufacturing Plant, Machinery Repair Shops, Food & Beverage
slot size :
0.025-6.0mm or customized
Thickness :
1 - 8mm
Support rod :
2.3 - 6.3 mm
Length :
Up to 6 Meters
Special Size :
Accepted
Surface treatment: :
Poloshing
End Connection :
threaded coupling,flanged,plain beveled end
Hole Shape :
V-shape
Dtructure :
V-Shape
Description

stainless Steel Cylinder Wire Mesh Filter/Wedge Wire Fliter Drum/Wire Wrapped Drum Screen

Product Description

1.Wedge Wire Screen Filter Specificate Table:

Johnson Screen Specification
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot Size 0.10 -- 6.00mm ,also can be customized as your request.
Length/Width can be customized as your request.
Diameter 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.

2. Wedge Wire Screen Filter Feature:

  • Non-clogging surface .
  • Large open area .
  • Low pressure drop .
  • Hydraulic efficiency .
  • High flow rates .
  • Mechanical strength .
  • Abrasion-resistant .
  • Easy cleaning

3. Wedge Wire Screen Filter Application:

  • Separating , filtering
  • Dewatering
  • Classifying
  • Straining , drying .
  • Water intak
  • AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm ThicknessAISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm ThicknessAISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm ThicknessAISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm ThicknessAISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm ThicknessAISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm ThicknessAISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm ThicknessAISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness

AISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm ThicknessAISI Stainless Steel Cylinder 6.0mm Slot Wedge Wire Screen Filter 1mm Thickness
