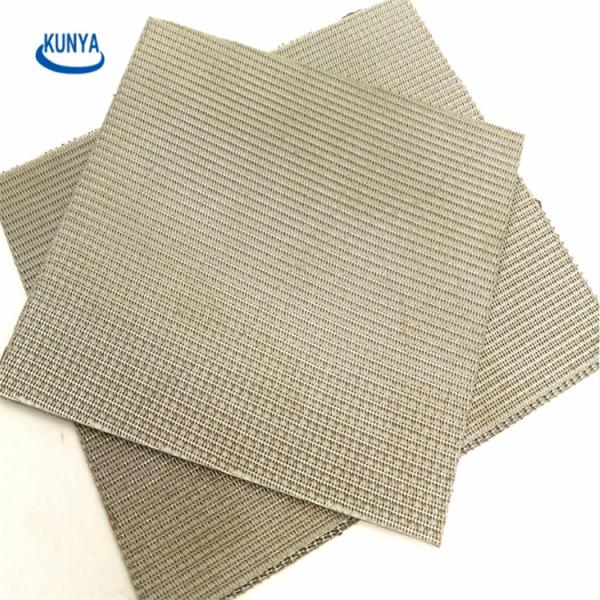

Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Specifications
Brand Name :
KUNYA
Model Number :
KYF-216216
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pieces per month
Delivery Time :
15-25 days
Packaging Details :
wooden case
Product Name :
Plain weave sintered filter panel
Types :
Sintered wire mesh
Weave Style :
Woven Wire Mesh
Processing Service :
Bending, Welding, Cutting, Punching, Filter element
Application :
Filtration, separation
Filter Rating :
1-300um
Size :
1200x1000mm, Special size are available on request
Working Temperature :
<300℃
Description

1micron Sintered Wire Mesh With Excellent Mechanical Properties Stainless Steel Sinter Mesh Panels

Stainless Steel Sinter Mesh Panel Introductions

Sintered wire mesh is the combination of different layer of wire mesh sintered under high temperature inert gas inside the furnace. During the sintering (diffusion bonding) process, indiviual wires and each adjacent layer of the mesh bond to each other.After cooling, the sintered wire mesh is rigid and completely flat readily to be finished.

Sintered wire mesh combines the property of the different layers and obtains more superior characteristics, such as:
- Maintaining steady filter rating even under high working pressure and temperature;
- Notably durable with robust construction;
- Excellent cleanability and dirt holding capacity;
- Ability to be processed by pleating, cuting, welding, punching, bending etc;
- Versatile configuration for various application due to layer material and quantity choice.

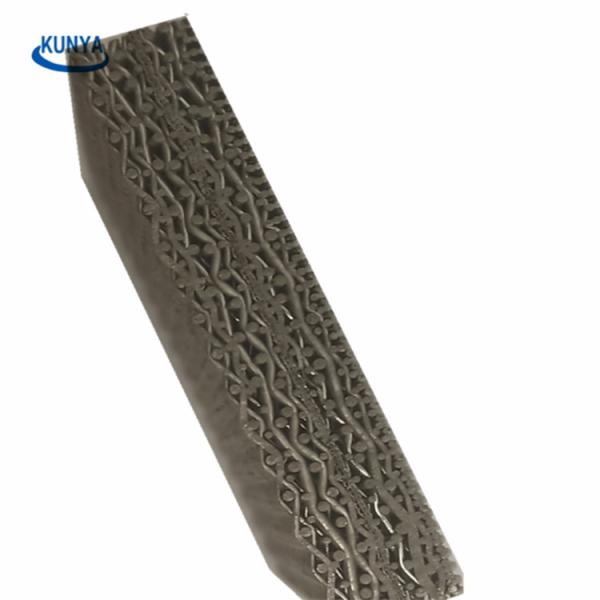

Tyipical 5 layer sintered wire mesh configuration:

Stainless Steel Sinter Mesh Panel Specifications

Nominal Filter
Rating		 Structure Protective Layer+Control
Layer + Dispersion Layer+Reinforce
Layer+Reinforce Layer		 Thickness(mm) Air
Perm
eabilit		 Bubble
Pressure
(mm		 Weight
(kg/m)		 Porosity(%)
1 100+ 400×2800+100+12×64+64x12 1.7 1.81 360-600 5-layer sintered wiremesh(8.4) 6-layer sintered wire mesh (14.4) 0.4
2 100+325×2300+100+12×64+64x12 1.7 2.35 300-590
5 100+200×1400+100+12×64+64x12 1.7 2.42 260-550
10 100+165×1400+100+12×64+64x12 1.7 3 220-500
15 100+165×1200+100+12×64+64x12 1.7 3.41 200-480
20 100+165×800+100+12×64+64×12 1.7 4.5 170-450
25 100+165×600+100+12×64+64×12 1.7 6.12 150-410
30 100+450+100+12×64+64×12 1.7 6.7 120-390
40 100+325+100+12×64+64×12 1.7 6.86 100-350
50 100+ 250+100+12×64+64×12 1.7 8.41 90-300
75 100+200+100+12×64+64×12 1.7 8.7 80-250
100 100+150+100+12×64+64×12 1.7 9.1 70-190
150 50+100+50+30+30+100+50 2 25 50~150
200 40+80+40+20+40+80+40 2 26 50~150
Note:The 6-layer sintered wire mesh is to add one layer of 12 mesh to the 5-layer sintered wire mesh. lts
thickness is 3.5mm.And it has the higher anti-pressure ability

Stainless Steel Sinter Mesh Panel Advantages
* High strength and durability since high temperature sintering;
* Anti-corrosion, and heat resistance up to 480℃;
* Steady filter rating from the 1micron to 100 micron;
* Filter mesh not easy to deform because of two protective layers;
* Can used for uniform filtration in high pressure or high viscosity environment;
* Suits for cutting, bending, punching, stretching, and welding.

Stainless Steel Sinter Mesh Panel Types

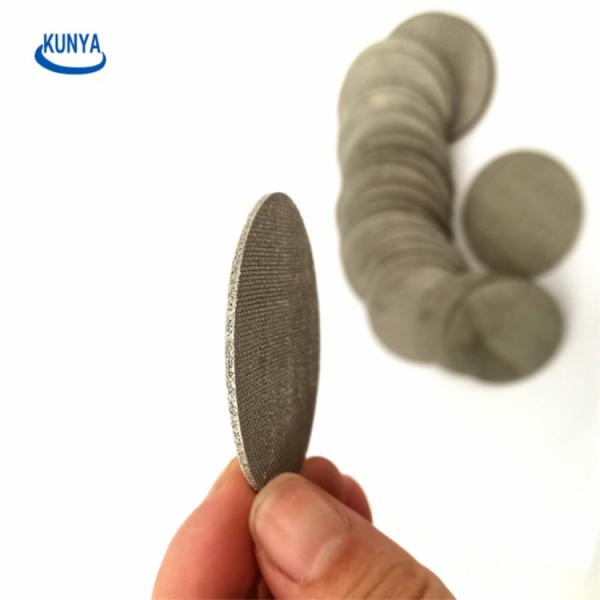

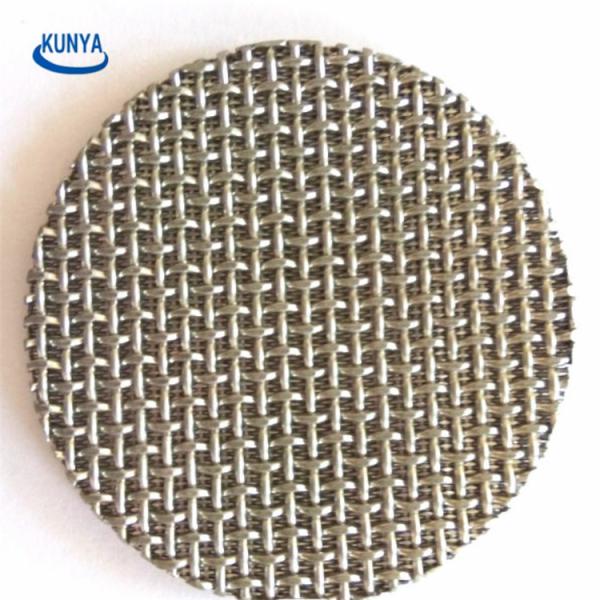

Main products we provided, 5-Layer / 7-Layer Sintered Wire Mesh, Dutch Woven Sintered Wire Mesh, Perforated Metal Sintered Wire Mesh, Plain Sintered Square Woven Wire Mesh, Sintered Filter Elements, Sintered Mesh Filter Cartridges, Sintered Wire Mesh Filter Disc, Sintered Wire Mesh Laminates, Sintered Wire Mesh filter tube.
Stainless Steel Sinter Mesh Panel Applications

Widely used in polymer filtration, petrochemical, electronic high temperature gas dust removal, oil filtration in the refining process,

viscose filtration, pre filtration of ultrafiltration device, vacuum pump protection filter, membrane support, catalyst carrier, automobile airbag,

fuel filter of aircraft ship , hydraulic filter system

Stainless Steel 1 Micron Sintered Wire Mesh Filter PanelsStainless Steel 1 Micron Sintered Wire Mesh Filter PanelsStainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels

Sintered Wire Mesh Filter Features

*High dirt holding capacity, high filtering accuracy, slow pressure rising, long replacement cycle

*High porosity and excellent permeability which results in low pressure drop and large flow

*High temperature resistance, corrosion resistance of acid, alkali, and organic solvent proof

*Reinforcing type, thickening type, add-protection mesh type and other types are available

Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Stainless Steel 1 Micron Sintered Wire Mesh Filter PanelsStainless Steel 1 Micron Sintered Wire Mesh Filter PanelsStainless Steel 1 Micron Sintered Wire Mesh Filter PanelsStainless Steel 1 Micron Sintered Wire Mesh Filter PanelsStainless Steel 1 Micron Sintered Wire Mesh Filter Panels
Stainless Steel 1 Micron Sintered Wire Mesh Filter Panels
