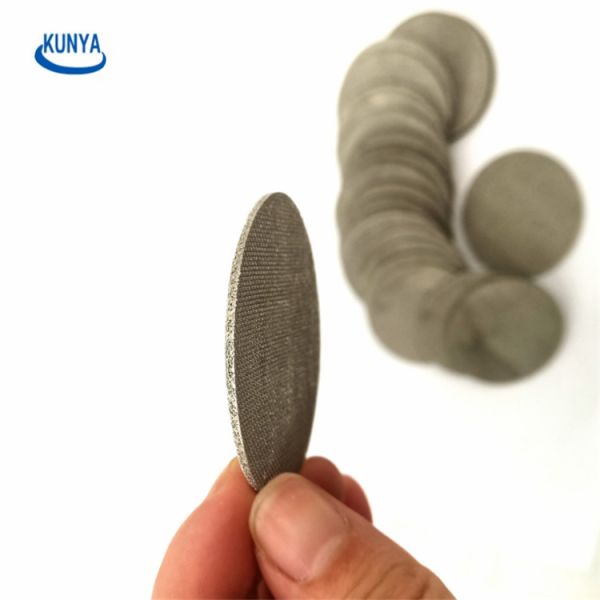

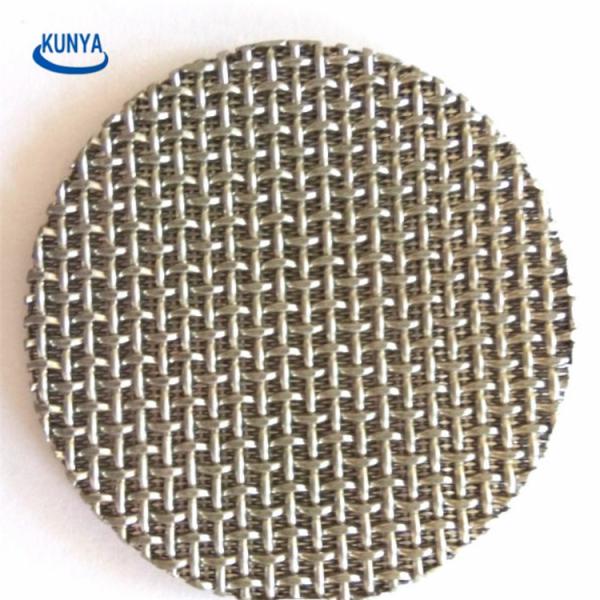

304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
Specifications
Brand Name :
KUNYA
Model Number :
KYF-216178
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pieces per month
Delivery Time :
15-25 days
Packaging Details :
wooden case
Product Name :
Sintered Wire Mesh Filter
Types :
Weave Wire Mesh
Layer :
one layer or multi-layer
Thickness :
1.7mm-8mm
Application :
Making filters
Filter Rating :
1-300um
Size :
1200x1000mm, Special size are available on request
Working Temperature :
<300℃
Description

304 316l Ss Stainless Steel Sintered Metal Wire Mesh Disc Air Liquid Solid Filtration Use

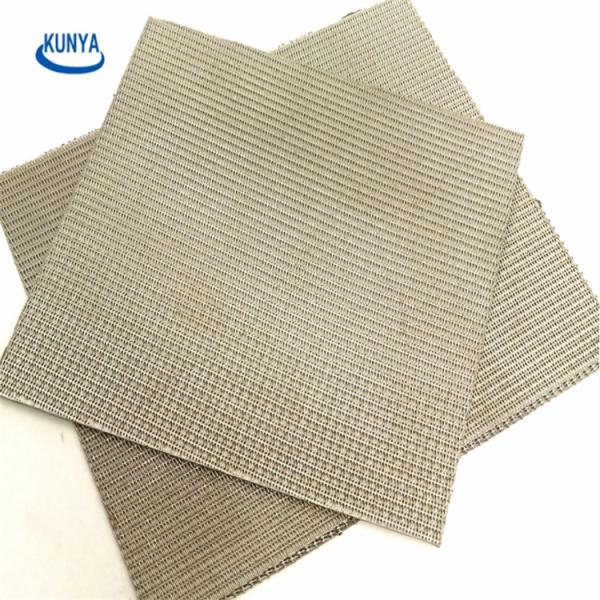

Sintered Metal Wire Mesh Introductions

sintered metal mesh, is a new type of filtration material,made of layers of stainless steel wire mesh with special laminated, through vacuum sintering and has a high strength and rigidity .The layers of mesh crisscross each other, form a uniform and ideal filter structure, it has excellent filtration precision, filtration resistance, mechanical strength, wear resistance, heat resistance, cold resistance and processability, demands and filtration precision uniform pressure strength of filter are ideal, is widely used in petrochemical, nuclear power, synthetic fibre, film, food, pharmaceutical, aerospace industry and environment protection, etc.

Material Stainless steel 304 316 / FeCrAl / nickel / monel / hastelloy
Size 500×500mm 1000×500mm 1000×600mm 1000×1000mm 1200×1000mm 1500×1200mm
Thickness 0.5-12 mm
standard thickness 1.7 mm
Operating temperature ≤ 1200 centigrade degree
Filter rating 1-300um / 5-60um
Combination standard 5 layer / as your requirement
Feature large capacity of pollutants, high filtration precision, slow pressure rise, long replacement period
high porosity and excellent permeability, low pressure loss, large flow
corrosion-resistant, high temperature: acid, alkali, organic solvents, drugs and other corrosion
easy processing, molding, welding
Application stainless steel sintered felt has excellent filtration performance, is the ideal high temperature, corrosion resistance, high precision filter material. Widely used in polymer polymer filtration, petrochemical, electronic high temperature gas dust, oil refining process filtration, viscose filtration, ultrafiltration filter, vacuum pump protection filter, filter support, catalyst carrier, car airbags, Aircraft ships and other fuel filtration, hydraulic system filtration.

Sintered Metal Wire Mesh Specifications

Nominal Filter
Rating		 Structure Protective Layer+Control
Layer + Dispersion Layer+Reinforce
Layer+Reinforce Layer		 Thickness(mm) Air
Perm
eabilit		 Bubble
Pressure
(mm		 Weight
(kg/m)		 Porosity(%)
1 100+ 400×2800+100+12×64+64x12 1.7 1.81 360-600 5-layer sintered wiremesh(8.4) 6-layer sintered wire mesh (14.4) 0.4
2 100+325×2300+100+12×64+64x12 1.7 2.35 300-590
5 100+200×1400+100+12×64+64x12 1.7 2.42 260-550
10 100+165×1400+100+12×64+64x12 1.7 3 220-500
15 100+165×1200+100+12×64+64x12 1.7 3.41 200-480
20 100+165×800+100+12×64+64×12 1.7 4.5 170-450
25 100+165×600+100+12×64+64×12 1.7 6.12 150-410
30 100+450+100+12×64+64×12 1.7 6.7 120-390
40 100+325+100+12×64+64×12 1.7 6.86 100-350
50 100+ 250+100+12×64+64×12 1.7 8.41 90-300
75 100+200+100+12×64+64×12 1.7 8.7 80-250
100 100+150+100+12×64+64×12 1.7 9.1 70-190
150 50+100+50+30+30+100+50 2 25 50~150
200 40+80+40+20+40+80+40 2 26 50~150
Note:The 6-layer sintered wire mesh is to add one layer of 12 mesh to the 5-layer sintered wire mesh. lts
thickness is 3.5mm.And it has the higher anti-pressure ability

Sintered Metal Wire Mesh Advantages
* High strength and durability since high temperature sintering;
* Anti-corrosion, and heat resistance up to 480℃;
* Steady filter rating from the 1micron to 100 micron;
* Filter mesh not easy to deform because of two protective layers;
* Can used for uniform filtration in high pressure or high viscosity environment;
* Suits for cutting, bending, punching, stretching, and welding.

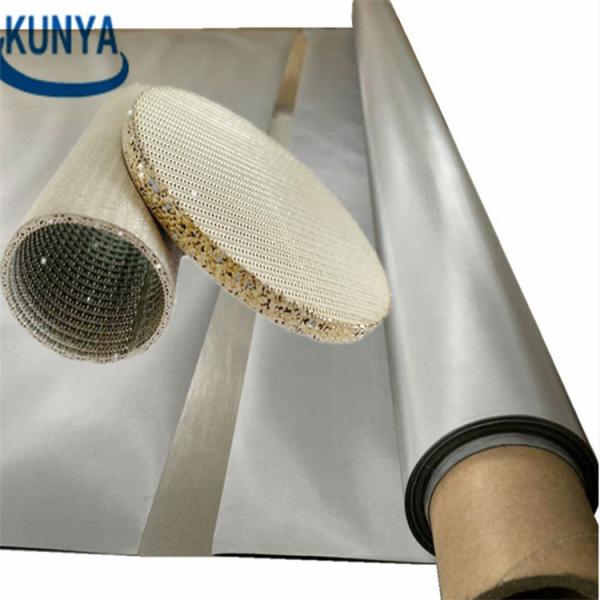

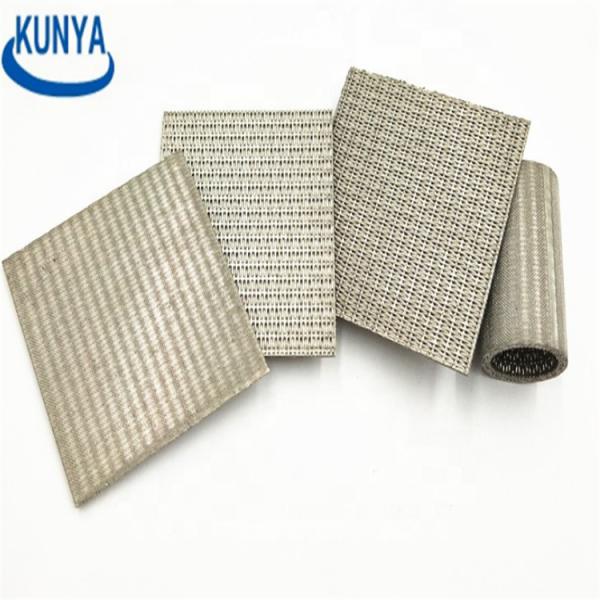

Sintered Metal Wire Mesh Types

Main products we provided, 5-Layer / 7-Layer Sintered Wire Mesh, Dutch Woven Sintered Wire Mesh, Perforated Metal Sintered Wire Mesh, Plain Sintered Square Woven Wire Mesh, Sintered Filter Elements, Sintered Mesh Filter Cartridges, Sintered Wire Mesh Filter Disc, Sintered Wire Mesh Laminates, Sintered Wire Mesh filter tube.
Sintered Metal Wire Mesh Applications

Widely used in polymer filtration, petrochemical, electronic high temperature gas dust removal, oil filtration in the refining process,

viscose filtration, pre filtration of ultrafiltration device, vacuum pump protection filter, membrane support, catalyst carrier, automobile airbag,

fuel filter of aircraft ship , hydraulic filter system.

304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use

304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use

Sintered Wire Mesh Filter Features

*High dirt holding capacity, high filtering accuracy, slow pressure rising, long replacement cycle

*High porosity and excellent permeability which results in low pressure drop and large flow

*High temperature resistance, corrosion resistance of acid, alkali, and organic solvent proof

*Reinforcing type, thickening type, add-protection mesh type and other types are available

304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
304 316l Sintered Stainless Steel Filter Disc Air Liquid Solid Filtration Use
