High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe
High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe
High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe
High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe
High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe
High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe
High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe
High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe
Specifications
Brand Name :
KUNYA
Model Number :
KYF12253
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
USD$1.95-USD$35.65
Payment Terms :
T/T, Western Union
Supply Ability :
165200 Pieces per month
Delivery Time :
25 days
Packaging Details :
wooden case
Product name :
Sintered Powder Porous Metal Filter
Filter rating :
0.2um - 200um
Shape :
customized
Thickness :
1 - 5 mm
Color :
stainless steel, bronze
Application :
Chemical Industry
Working temperture :
-200℃- 600℃
Material :
Stainless steel, Titanium, Bronze
Advantage :
long life span
Length :
5 - 1000 mm
Description

High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe

Powder Porous Metal Filter Introductions

Sintered metal powder filter elements, also called sintered metal porous filters, adopt stainless steel 304, 304L, 316, 316L powder as raw materials and then produced through sizing, molding and sintering processes. Because of stainless steel material, so the sintered metal powder filter elements are also known as sintered stainless steel powder filter element.

Powder Porous Metal Filter can be made into tube type and plate type. Because of the good permeability, filter fitness and high stock utilization, they are widely used in medical industry, chemical industry, metallurgical industry and field of gas purification.

Powder Porous Metal Filter Features

Applications for sintered stainless steel powder filter element:

· Dust, bacteria and oil fog removal of gas and steam.

· Noise reduction, gas buffer.

· The recycle of catalysts.

· Decarburization filtration.

· Viscous liquid filtration.

· Strong polar solvent filtration.

· Retention of particles from off-gas of fluidized beds.

· The filtration and separation of pharmaceutical, beverage, food, metallurgy, petroleum and other fields.
Features:

· High filtration efficiency.

· High mechanical strength.

· High permeability and porosity.

· Anti-corrosion and anti-pressure.

· Even distribution of pores catalysis recycling accurate filtering.

· Can be used at high and low temperature.

· Easy to clean and can be used for many times.

· Long service life.
Specifications:

· Item: sintered stainless steel powder filter element.

· Material: stainless steel powder.

· Thickness of wall: 1.0 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, etc.

· Length: 10", 20", 30", 40".

· Working Temperature: -200 °C to 1000 °C.
Powder Porous Metal Filter Uses
Material
Pure titanium/316L powder
Filter Rating
0.5um-50um
Porosity
30-45%
Penetrability
3-800M³/M²hKPa
Working pressure
2.0MPa
Operating temperature
300℃
Shape
Disc,sheet,tube,round bar,cap
Specific surface area
10-40cm²/cm³

Powder Porous Metal Filter Types

Name
Filter rating 5-70um sintered powder porosity tube metal filter
Production
Diameter (Width)
Thickness
Customized

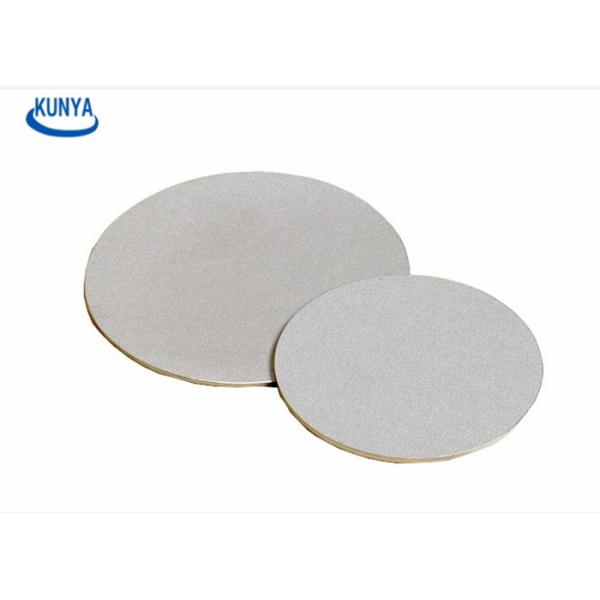

Sintered porous round discs
φ5-φ400mm
φ5-φ400mm
1-20mm
Yes
Sintered porous sheets
5-600mm
5-400mm
1-20mm
Yes

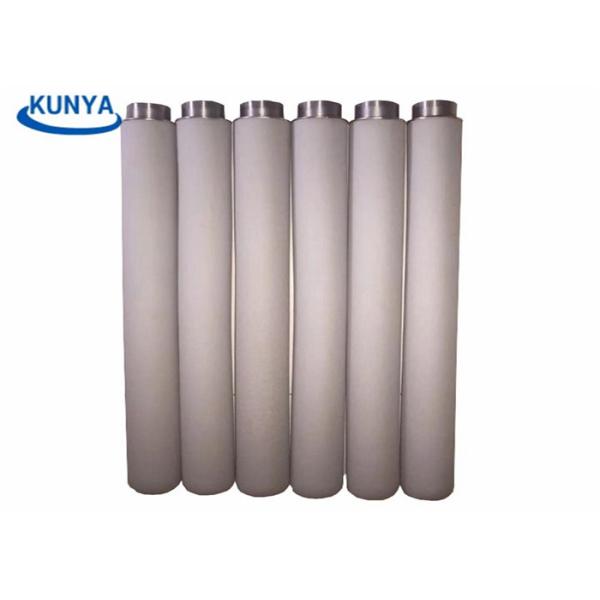

Sintered porous tubes
100-1200mm
φ20-φ200mm
1-10mm
Yes
Sintered porous cartridge
100-1200mm
φ20-φ200mm
1-10mm
Yes

High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe

High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe

High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe

High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe

High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe

High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe

High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter PipeHigh Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter PipeHigh Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe

High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe
