Specifications
Brand Name :
KUNYA
Model Number :
KYF-211192
Place of Origin :
CHINA
MOQ :
1 piece
Price :
USD$1-USD$65 per piece
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pieces per month
Delivery Time :
15-25 days
Packaging Details :
wooden case
Product Name :
Pleated Filter
Type :
Filter Elements
Length :
1.2 m
Thickness :
0.3 / 0.68 mm
Filter Rating :
1 um - 300um
Material :
Stainless Steel Woven Mesh
Sizes :
Customized
Uses :
For Filters
Shape :
pleated cartridge
Features :
corrosion resistance/acid and alkali resistance/steady filtering
Application :
industrial
Core Components :
Filter Elements
Description

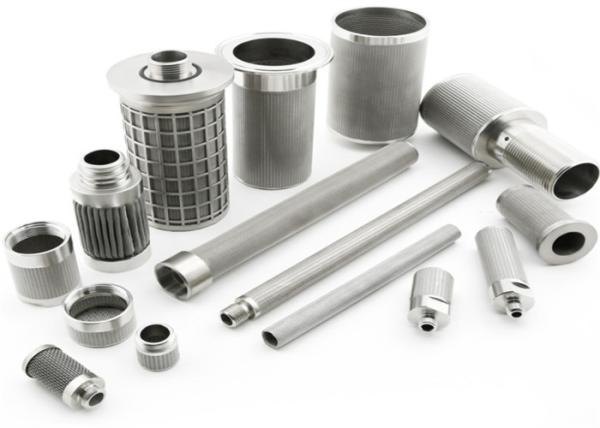

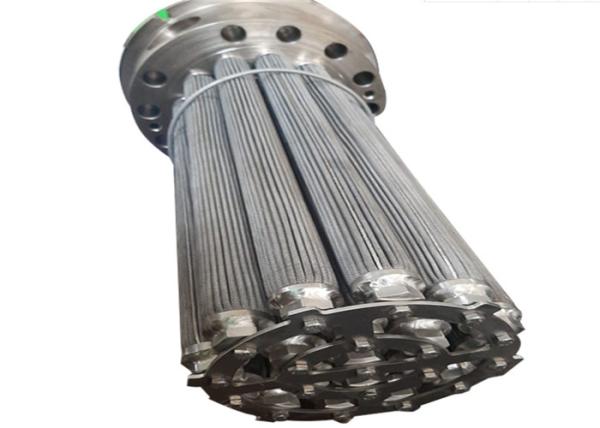

Stainless Steels 304l, 316l Nickel Titanium Sinter Metal Ultrafine Filter Tube

Due to the smaller aspect ratio, Shinaki’s ultrafine filter originals can be assembled in the same size filter, making it ideal for pilot plants.
The sintered metal ultrafine filter is formed by sintering a metal powder, pressed by cold isostatic pressing, and then formed by high-temperature vacuum sintering. Due to the smaller aspect ratio, more Ultrafine Filter originals can be assembled in the same size filter, making it ideal for pilot plants.

Sinter Filter Tube Features
– High strength, good mechanical properties
– High temperature and pressure resistance
– Corrosion resistance
– High permeability
– Cleanable
– Uniform pore distribution
– Smooth outer surface
– No unloading or shedding
– Defined permeability and particle retention

Sinter Filter Tube Specifications
Dimensions: Nominal or Customized

Materials of Sinter Filter Tube Construction
Stainless steels (304L, 316L)
Nickel
Titanium
Monel
Inconel
Hastelloy B, C and X
Special materials – Contact
Shinkai

Sinter Filter Tube Application
Catalyst Filtration
Support grid for catalyst
Mother liquor recovery in PTA process
Filtration in food and beverage industry

Sinter Filter Tube Features

1).high flow, high precision

2).high porosity, permeability, pressure drop very low

3). excellent mechanical strength, resistance to high pressure up to 200Kg

4).easy to clean, backpulsing

5).corrosion resistance, high temperature resistance

6) .good processing performance, folding, welding, adhesive

7).design flexibility

Pleated Filter Informations

Product Type Material Micron Out Diameter Length adapter O-rings Filter Media
Pleated Type SS304

1,3,5,

10,15,

20,25,

30,40

,50,100

etc

 30mm 5" Thread Silicon SS wire mesh
SS304L 50mm 10" DOE Buna-N Sintered Fiber
SS316 60mm 20" 226 Viton Sintered mesh
SS316L 65mm 30" 222 EPDM
Other 70mm 40" SOE

Note: 1. the above options are freely combined .

2.It also can be customized according to your requirements.
