Cylindrical Shaped SS Pleated Filter Element Chemical Corrosion Resistance
Cylindrical Shaped SS Pleated Filter Element Chemical Corrosion Resistance
Specifications
Brand Name :
JUMAO
Model Number :
JM-PFE2582
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 pcs
Delivery Time :
8-45 days
Packaging Details :
Wooden Box
Media :
SS 316,SS 316L ,etc.
Filter Rating :
2-1000 um
Application :
Gas Filtration * Oil Filtration
Size :
Customized
Shape :
Cylindrical
Height :
As your request
Description

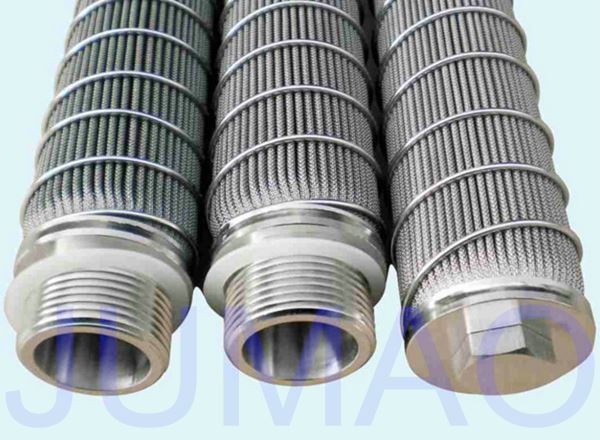

Cylindrical Shaped SS Pleated Filter Element Chemical Corrosion Resistance

Stainless steel pleated filter elements are mainly made of stainless steel fiber sintered felt and stainless steel woven mesh by folding process. Stainless steel fiber sintered felt can be made into multi-layer structure with coarse to fine pore diameter, with high porosity and high dirt holding capacity. The stainless steel woven mesh is made of stainless steel wire of different diameters, and the stainless steel pleated filter elements have the characteristics of good strength, not easy to fall off, easy to clean, high temperature resistance and economical use.

Description of stainless steel pleated filter elements

Feature

 Resistant high temperature and pressure
Resistant strong acid and alkali
Small resistance in filtration process
Cartridges can resist to strong acid, alkaline

Specification

 Filtration accuracy: 1-100 um
Length: 10-40 inch
Porosity: 65%-85%

Operating parameters

 PH: 1 ~14
Max.temperature: 200℃
Max.differential: 0.60Mpa

Typical water flow rate

(10 '')

Typical Applications

 Steam filtration
Decarbonization of high viscosity liquid filtration

Removing impuriteis in Petrochemical industry

impurities Filtering
Strong polar solvent filtration
Highly corrosive liquid and gas purification
Liquid or gas in high temperature and pressure
Material sus304/304L/316/316L
Diameter 35mm,60 mm etc.
Filtration Rating(micron) 3,5,7,10,15,20,25,30,40,60 um

Advantages of stainless steel pleated filter elements :
1.Small resistance, low using differential pressure;
2.After folding shape, big filter area, carrying large amount;
3.High temperature resistance, corrosion resistance,suitable for high viscous liquid filtration;
4.Regeneration performance is good, can be repeated use.


Popular Specifications of stainless steel pleated filter elements:

Highest working temperature 500 ℃ or less
Filtration accuracy 2-200 Um
Working temperature 0.1-30 mpa
Filter specifications 5 - 40 inches (according to customer's requirement)
The rated flow 80-200 l/min
Work pressure 1.5-1.5 pa
Filter area (m2) 0.01 - 0.20
The interface form 222, 226, 215, M36, M28, m2-m24, M22, M20 thread interface, etc
