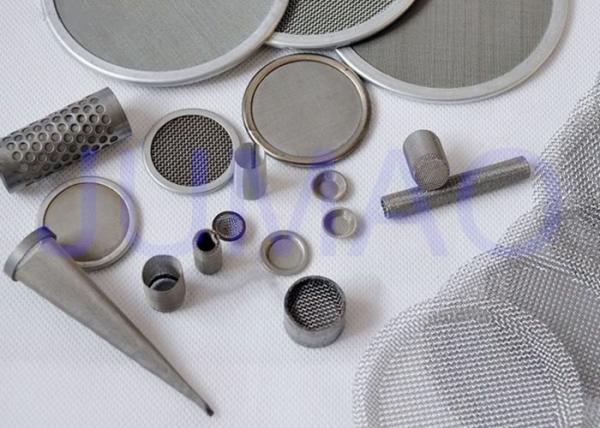

Oil Stainless Steel Sintered Filter Elements 1 - 100 Micron With 5-Ply Layers
Oil Stainless Steel Sintered Filter Elements 1 - 100 Micron With 5-Ply Layers
Specifications
Brand Name :
JUMAO
Model Number :
JUMAO-SFE1039
Certification :
ISO/ CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sqm / month
Delivery Time :
15-90days
Packaging Details :
Wooden Cases
Material :
Metal
Application :
Food Industry
Shape :
Canister/Tube/ Disc,etc.
Feature :
Good Strength
Character :
Temperature & Corrosion Resistant
Service :
Customized
Description

1 - 100 Micron Oil Sintered Filter Elements Made By 5 - Ply Layers

Stainless steel sintered metal mesh filter are several multilayer woven or perforated stainless steel wire mesh overlapped together, and then sintered in the vacuum sintering furnace. We can roll the sintered filer into tube shape and welding the seam forming sintered tube filer. Due to the stainless steel material, the sintered metal mesh tube filters has excellent properties of resistance corrosion and resistance high-temperature. It is a common use industrial filtration tube for liquid and gas filtration, used in petroleum, polyester, pharmacy, chemical fiber, food and beverage, and water treatment.

Product Range:oil filter,oil sintered filter cartridge/sintered filter element, sealed products used in the industrial hydraulic system and lubrication system.

Simple instruction of stainless steel sintered filter elements:

Item Specification
Maximum working temperature 500 DegC
filtration accuracy 0.2um, 0.45um, 1um-200um
working pressure 0.1-30MPa
Filter length 5-40 inches (which can be produced separately according to user requirements)
Adaptor 222,226,215, M36, M28, M24, M22, M20 threaded interface can be customized according to customer needs sealed interface.

Features of sintered filter elements:

  • Can make the system oil keep clean quickly.
  • Can prolong the working life of oil.
  • Reducing the bearing wear.
  • Corrosion resistance,high strength.
  • High temperature resistance,good permeability.
  • high quality glass fiber,stainless steel
  • high filtration precision
  • pollutant carrying capacity large
  • fast filtration speed
  • good structure stability
  • Long Service Life
  • multi-layered filtration
  • stainless steel end cover with screw thread

Packaging & Shipping for sintered filter elements:

Shipping port: Qingdao port,Shanghai port,Shenzhen port,Guangzhou port,Ningbo port,Tianjin port.
Delivery time: received payment within 2-5working days
Package details:

1. paper packing or plastic packing

2. carton packing
3. wooden packing
or acrroding to customer requirements.

Shipment: By sea to your nearest port
By air to your nearest airport
By express (DHL, UPS, FEDEX, TNT, EMS) to your door
