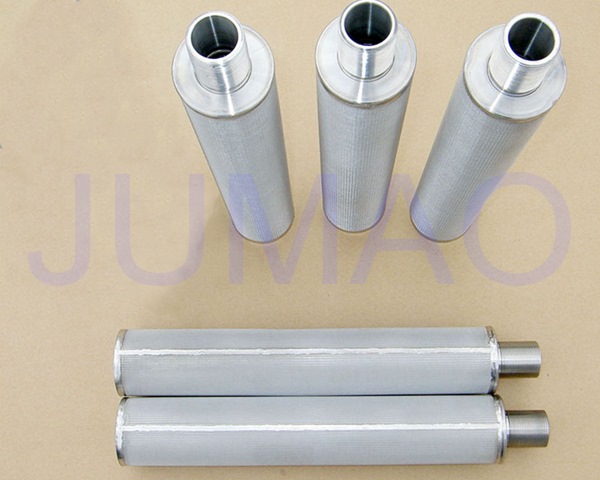

Sintered Oil Filter Elements , Stainless Steel Filter Media Multiple Layer
Sintered Oil Filter Elements , Stainless Steel Filter Media Multiple Layer
Specifications
Brand Name :
JUMAO
Model Number :
JUMAO-SFE1030
Certification :
ISO/ CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sqm / month
Delivery Time :
15-90days
Packaging Details :
Wooden Cases
Material :
Stainless Steel
Application :
Oil Industry
Structure :
Sintered Multi Layer Tube
Feature :
Multi Layered
Character :
Temperature & Corrosion Resistant
Service :
Customized
Description

Stainless Steel Oil Filter Elements Sintered Multiple Layer Filter Media

PROPERTIES AND ADVANTAGES OF SINTERED FILTER ELEMENTS

  • Defined finest aperture size and regular pore distribution

  • Extremely robust, resistant to mechanical and thermal loading (up to 600oC dependent upon alloy), long service life, therefore reduced downtime

  • High flow rates, selectable flow resistance

  • Optimum backwashing capability, advanced reliability in terms of backwashing pressure

  • Reduced loading of the filter medium in pulsation

  • Consistent product quality, advanced levels of corrosion resistance with the use of noble metals such as stainless steel, Hastelloy, Inconel etc.

  • Wide range of combinations up to 1000 layers possible

  • Disk sizes up to 1200 x 1200mm possible without welding

Application of sintered filter elements:

1.High polymer industry: synthetic
2.Chemical industry: petrochemical, oil paint refining industries etc
3.Pharmaceutical and food industry: refining of medicine and food
4.Mechanical and vessel industries: flow rate control of natural gas
5.Others: used in high temperature, high viscosity and high temperature fields

Metallic filters feature low pressure drop and back-wash/pulse cleaning capabilities. Any standard arrangement of end connections and seal configurations can be supplied. Custom connections are available upon request. Optimization of these points have a tremendous impact on capital and operating costs in any process. JUMAO’s fundamental understanding of filtration concepts, technologies, quality control and manufacturing as well as the end users basic filtration needs will make that optimization possible.

Filter Rating of sintered filter elements

PMF PART NUMBER

TYPE

AIR FLOW
SCFM/FT² @ 2" W.C.

NOMINAL THICKNESS

+/- .003"

Lo-Flo Media

F - P M F - 316L - SP - LF - 05

SP - LF - 5

5.0

0.054"

F - P M F - 316L - SP - LF - 10

SP - LF - 10

10.0

0.058"

F - P M F - 316L - SP - LF - 25

SP - LF - 25

25.0

0.061"

Hi-Flo Media

F - P M F - 316L - SP - HF - 50

SP - HF - 50

50.0

0.041"

F - P M F - 316L - SP - HF -100

SP - HF - 100

100.0

0.044"

F - P M F - 316L - SP - HF -200

SP - HF - 200

200.0

0.050"
