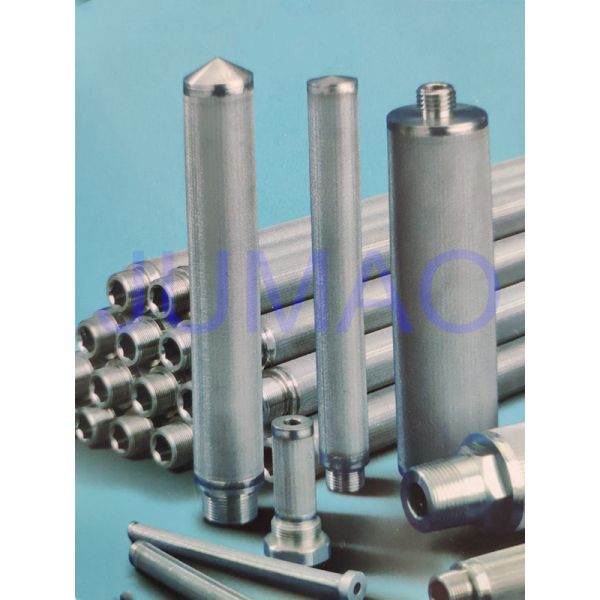

316L Stainless Steel Sintered Filter Elements 40mm Diameter , Tube Shaped
316L Stainless Steel Sintered Filter Elements 40mm Diameter , Tube Shaped
Specifications
Brand Name :
JUMAO
Model Number :
JUMAO-SFE1036
Certification :
ISO/ CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sqm / month
Delivery Time :
15-90days
Packaging Details :
Wooden Cases
Material :
316
Application :
Food Industry
Shape :
Tube
Feature :
Good Fineess
Character :
Temperature & Corrosion Resistant
Service :
Customized
Description

40mm Diameter 316L Steel Sintered Filter Elements Applied In Food Industry

Consisting of a single layer of 316 woven wire mesh, these stainless steel sintered filter elements are ideal for applications where a low cost stainless steel filter alternative is required. Due to the method of construction, single layer filter elements do not require seals.

Application of sintered filter elements
Sintered filter elements/cartridge is widely used for liquid, gas, solid filtration, gas sample collection, sound attenuation in many industries such as aerospace, petroleum, food, metallurgy, etc.

· Used for gas distribution in the fluidized bed.

· Used for washing and drying in pharmaceutical industry.

· Used in water treatment and filtration of gas in the field of food and beverage.

· Used for fine filtration of hydraulic oil or lubricating oil in machinery industry.

· Polymer filtration in chemical industry.

Fast Introduction of Sintered Filter Elements:

Thickness: Normally 1mm or more, thinnest plate we have ever made is 0.67mm based on Titanium material

Filter rating: from 0.1 to 200 micron

Diameter: 13, 30, 47, 50, 60, 79, 80,105….We can make various kinds of discs acc. to customer requirement in case of needed.

What we offer for sintered filter elements?

  • Full traceability

  • Short or Long runs

  • Discs with an ID hole ( donuts)

  • Wire disc manufacturing using high speed stamping machines

  • Very accurate disc diameters down to ( +/- .002 inch)

Technical Information of sintered filter elements

5-Layer Sintered Mesh

Nominal Micron Filter Rating

Thickness (Inches)

Air Flow (cfm/in2)

Weight (lbs/ft2)

Porosity

5LA-1

1

0.067

0.41

1.72

37%

5LA-2

2

0.067

0.54

1.72

37%

5LA-5

5

0.067

0.55

1.72

37%

5LA-10

10

0.067

0.68

1.72

37%

5LA-15

15

0.067

0.78

1.72

37%

5LA-20

20

0.067

1.03

1.72

37%

5LA-25

25

0.067

1.39

1.72

37%

5LA-30

30

0.067

1.48

1.72

37%

5LA-40

40

0.067

1.56

1.72

37%

5LA-50

50

0.067

1.92

1.72

37%

5LA-75

75

0.067

1.98

1.72

37%

5LA-100

100

0.067

2.07

1.72

37%
