Stainless Steel Sintered Filter Disc 5-3000mm Diameter For Pharmacy Industry
Stainless Steel Sintered Filter Disc 5-3000mm Diameter For Pharmacy Industry
Stainless Steel Sintered Filter Disc 5-3000mm Diameter For Pharmacy Industry
Stainless Steel Sintered Filter Disc 5-3000mm Diameter For Pharmacy Industry
Specifications
Brand Name :
JUMAO
Model Number :
JM-SFD9647
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 PCS-1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500-10000 pcs as different size
Delivery Time :
8-40days
Packaging Details :
Wooden Boxes
Material :
SS304, SS316, SS316L,brass,monel,duplex
Mesh count :
2-200mesh
Package :
Wooden Boxes
Working Temperature :
-40 - 600°C
Shape :
Filter Disc
Wire diameter :
0.016-2.5mm
Description

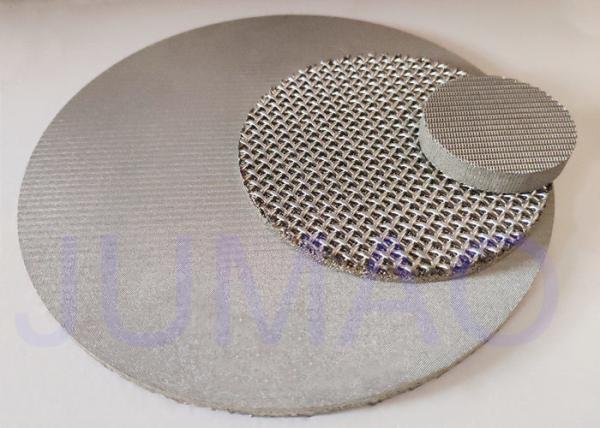

Diameter 5-3000mm Stainless Steel Sintered Filter Mesh Disc In Pharmacy Industry

Sintered Filter Disc is a kind of sintered wire mesh which sintered together by multilayer plain weave square wire mesh.because of the square hole mesh opening rate is high ,so the production of sintered mesh has the characteristics of high permeability,low resistance,high liquidity.

Sintered filter discs are manufactured using special close tolerance tooling to assure uniformity
Never a tooling of setup charge for standard or reinforced discs
Sintered filter discs are supplies deburred, ultrasonically cleaned and bulk packaged in sealed plastic bags
Standard diameters: .093″ thru 1.500″, other sizes available
Other micron ratings and closer tolerances available.

These layers of sintered filter discs generally consist of 316L stainless steel wire mesh , but special alloys such as Hastelloy, Monel, Inconel, Alloy 20 etc. can be incorporated as well.

Our standard size is a 2’x4′ or 4’x4′ sheet, but different size discs, tubes, larger sheets and cones can be fabricated.

This type of sintered wire mesh for sintered filter discs laminate has uses in many industries including pharmaceuticals, chemical processing, food and beverage, and transportation. Applications include fluidized beds, liquid and gas filtration, pharmaceutical powder processing, and a variety of others including some that have yet to be developed and put into use.


WIRE FILTER

BRONZE FILTER

INOX FILTER

PLASTIC FILTER

COMPOSITION

inox 304/316

Copper 89% Tin 11%

Inox AISI 316L

PP/PE

POROSITY

30 up to 80%

35 up to 45%

25 up to 40%

35 up to 45%

FILTERING DEGREE

10-150 micron

5-150 micron

2-100 micron

0.1-80 micron

DENSITY

from 2 up to 5

from 4.5 to 5.5

from 5.5 up to 6.5

from 6.0 up to 6.5

LENGTH RANGE

4mm-150mm

2mm - 250mm

2mm - 250mm

2mm - 250mm

TRACTION RESISTANCE

3 - 15kg/mm2

3 - 6kg/mm2

3-9kg/mm2

/

DILATATION COEFFICIENT

/

17x10-6

16x10-6

/

MAX TEMPERATURE

800ºC

200ºC

800ºC

120ºC
