Specifications
Brand Name :
Huitong
Model Number :
HT-MP Series
Place of Origin :
Yiyang,China
MOQ :
1m2
Payment Terms :
T/T, Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability :
1000m2 per month
Delivery Time :
Depends on quantity
Packaging Details :
Paper carton
Certification :
ROHS
Price :
Negotiable
Diamter :
3μm
Type :
HT-MP3
weight :
975g/m2
thckness :
0.37mm
porosity :
67%
bubble pressure :
12500Pa
Air Permiability :
10L/dm2.min
Description

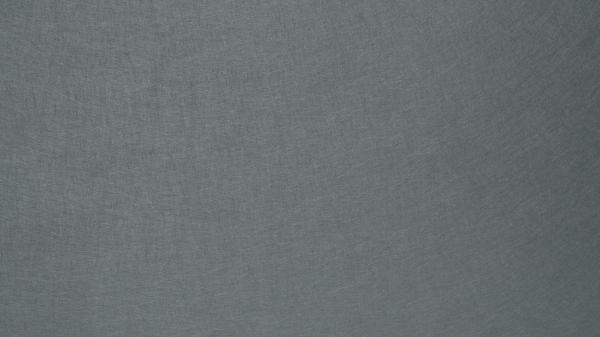

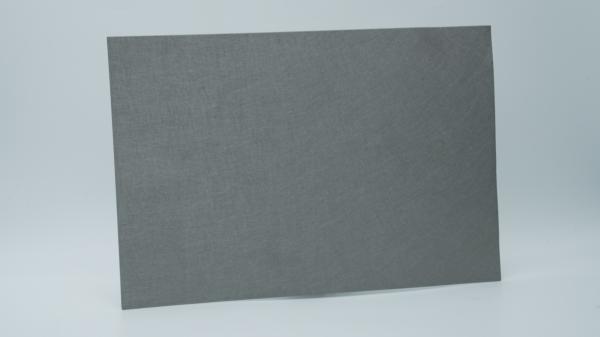

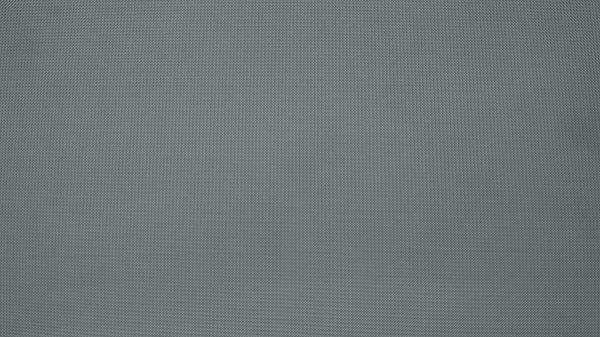

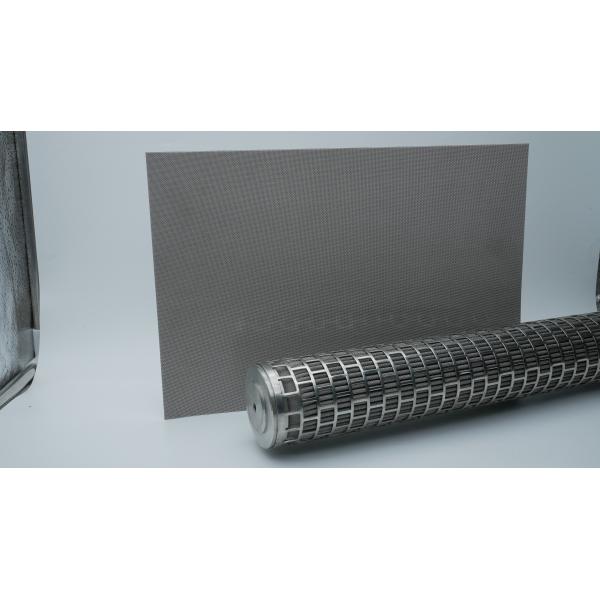

3 Micron Stainless Steel Non-woven Sintered Metal Fiber Felt Filter Material For Filtration

【Description】
The stainless felt is formed by steel fibers with uniform diameter and processed by air-laid and then vacuum sintered, so that the felt possess excellent strength.
The muti-layer structure of the filter material increases the dirt holding capacity; the uniform network structure and the pore size provide the filter material excellent porosity.
* High-pressure resistance, high-temperature resistance, corrosion resistance;
* Repeatable cleaning and regeneration
* Less pressure loss and higher flow rate;
Material available: Stainless Steel, Inconel, Hastelloy
【Application】
Filtration for chemical fiber, film, viscose and other industries;
Using for high-temperature flue gas dust precipitator;
Petroleum and petrochemical, fuel, hydraulic oil filtration ,etc.
【Parameters】
Efficiency (μm) Thickness(mm) Porosity (%) Bubble Point (Pa) Permeablity(L/dm².min)
3 0.37 67 13000 13
5 0.43 80 7600 35
7 0.36 74 5050 60
10 0.34 78 3700 85
15 0.38 80 2470 170
20 0.51 82 1850 265
25 0.62 79 1480 325
30 0.62 79 1235 450
40 0.63 76 900 620
60 0.57 83 600 1350
86 1.00 84 480 1470
80 1.00 85 450 1510
90 1.20 88 410 1740
100 1.30 89 360 2000

The Three Dimensional Structure Stainless Steel Fiber Felt With High Porosity,High Filtration Efficiency
