Reach Approved 10000f Filament Conductive Masterbatch For Signal Wire
Reach Approved 10000f Filament Conductive Masterbatch For Signal Wire
Specifications
Brand Name :
huitong
Model Number :
HT-CH60-T12
Certification :
ROHS，Reach
Place of Origin :
Yiyang,China
MOQ :
10kg
Payment Terms :
T/T, L/C
Supply Ability :
10tons per months
Delivery Time :
depends on quantity
Packaging Details :
paper carton
Price :
Negotiable
Material :
PFA 40%
Properties :
Conductive material
application :
medical brackets
Color :
Black
Cutting Length :
5mm
Description

Product Name: Conductive Plastic Agglomerates

Description:

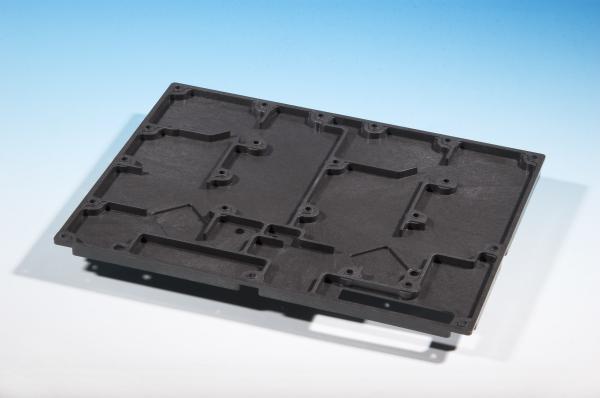

Huitong Conductive pellet is a stainless steel filler material used in plastic compounds to provide electrically conductive properties. It is frequently used to replace metal dye-cast in the automotive industry in order to reduce weight while still providing excellent shielding effectiveness.

It can be used as a masterbatch and has been designed for easy dispersion into the polymer matrix for injection molding (dry blend) and compounding.

Features:

* High shielding effectiveness at low load levels
* Lightweight metal replacements
* Compatible with any color additive
* Low impact on mechanical properties

Range Of Application: Plastic products such as PVC, PP, PA, PC, TPU, PE and ABS are available. It is easy to color and recyclable.

ENGINEERING AND PRODUCT SUPPORT
Our experienced engineers are available to help with optimal material selection and manufacturing strategies for each project. This includes support to ensure properly matched EMI gaskets, product design strategies, tooling, and other needs.

Technical Parameter:

Fiber Diameter(m) 12
Fiber Filaments (f) 5000~10000
Agglomerate length(mm) 1～10 (its length should be consistent for same specification)
Agglomerate Diameter (mm) 2
Agglomerate External Appearance the surface is smooth

Packing:

No Packaging Size Limitations

Dry blends (that use multiple pellet mixtures) have packaging limitations – they are sold only in smaller bags or containers, and carry the risk of the heavier pellets settling during transportation.

When settling occurs, it results in inconsistency in shielding and mechanical performance. Large volume programs can save significant labor hours by using single pellet products such as PREMIER.
