Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
Specifications
Brand Name :
Lier filter
Certification :
CE GB
Place of Origin :
China xinxiang
MOQ :
0~100
Price :
10$~100$
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability :
1000
Delivery Time :
15~30days
Packaging Details :
wooden box
Material :
Stainless steel
Type :
Single bag filters/Multi-bag filters
Core Components :
Pressure vessel
Applicable Industries :
Manufacturing Plant, Food
Uses :
dust
Filter Rating :
34%-45%
Description

Industrial Filter Element Is An Advanced And Efficient Automatic Filter Device
Introduction
Industrial filter, automatic sewage filter core adopts high-strength wedge-shaped filter screen, and automatically cleans the filter core through differential pressure control and timing control. When the impurities in the filter accumulate on the surface of the filter element, the pressure difference between the inlet and the outlet increases to the set value, and the backwashing mechanism is driven. When the mouth of the backwash suction cup and the inlet of the filter element are directly opposite, the drain valve is opened, and the system is depressurized and drained, and a negative pressure area with a relative pressure lower than the water pressure outside the filter element appears on the inside of the suction cup and the filter element, forcing part of the net circulating water to flow from the outside of the filter element. Flow into the inner side of the filter element, and the impurity particles adsorbed on the inner wall of the filter element flow into the pan along with the water and are discharged from the drain valve.
parameter

TypeModelDimension(mm)ConnectionBagFlow rate(m3/h)
DiameterHeightSizeQ'ty(pc)
Single Bag FiltersBJD12205502''Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP)#1One20
BJD2220950#240
BJD4130650#412
Muti-Bag FiltersBJD2-240015503'', 4", 5" Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP)#2Two80
BJD2-35001550#2Three120
BJD2-45501550#2Four160
BJD2-56001550#2Five200


Certificate
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core

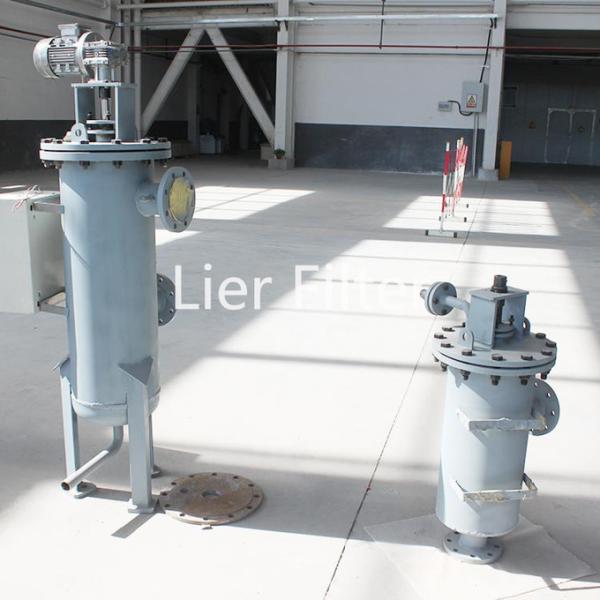

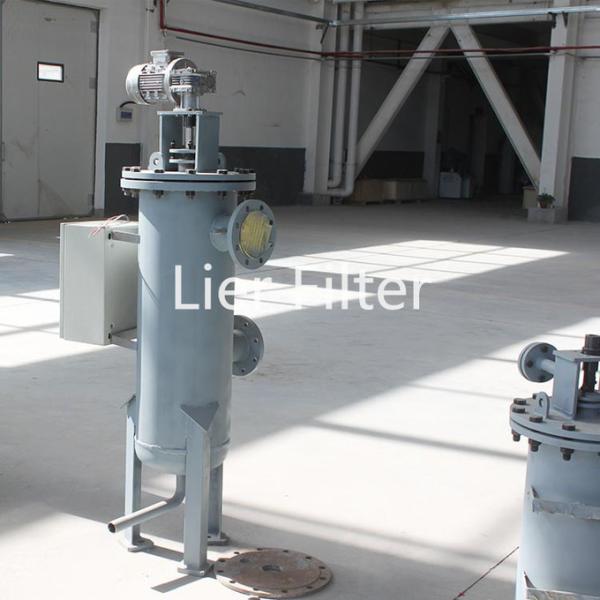

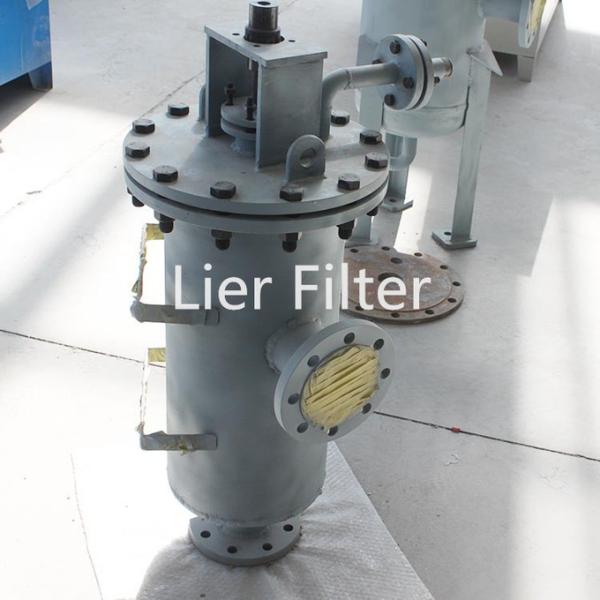

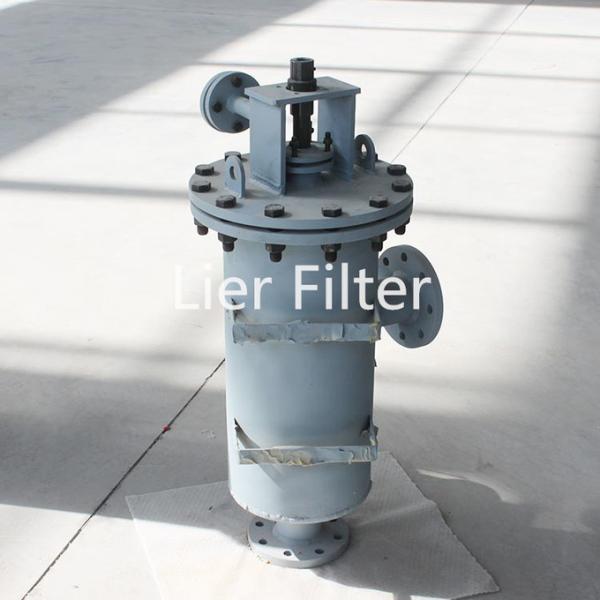

photos
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter CoreDia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core

Our Advantage
Our technical service department serves consumers throughout the working day. If you have any questions about purchasing, you can contact us at any time by email or phone,and we will provide technical guidance services.
Sales continue to grow and are exported overseas;
We are a professional manufacturer of filtration equipment. We have strict quality management system;
Focus on innovation and development;
Use fast transportation to provide the best service
transportation
Dia 550mm 160m3/H Industrial Basket Strainer Automatic Sewage Filter Core
