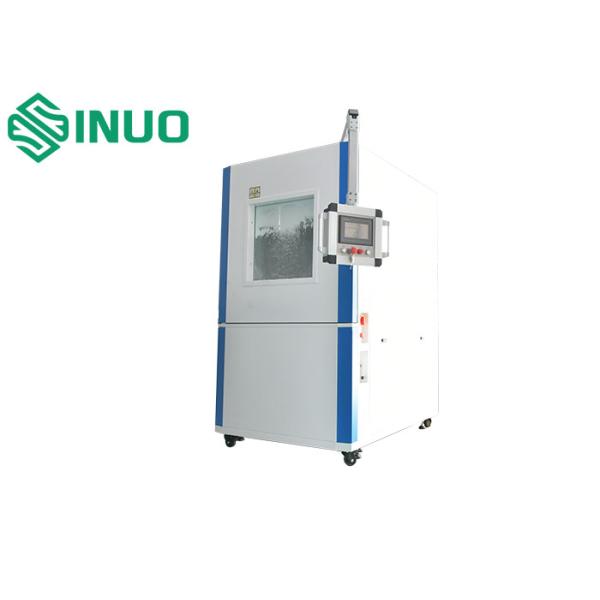

IEC60529 Stainless Steel Sand And Dust Test Chamber
IEC60529 Stainless Steel Sand And Dust Test Chamber
IEC60529 Stainless Steel Sand And Dust Test Chamber
IEC60529 Stainless Steel Sand And Dust Test Chamber
IEC60529 Stainless Steel Sand And Dust Test Chamber
IEC60529 Stainless Steel Sand And Dust Test Chamber
IEC60529 Stainless Steel Sand And Dust Test Chamber
IEC60529 Stainless Steel Sand And Dust Test Chamber
Specifications
Brand Name :
Sinuo
Model Number :
SN441-1000L
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Working size（mm） :
L1000*W1000*H1000
Outer size (mm) :
L1610*W1250*H1950
Test sand (or talc) dosage :
2kg/m³
Vacuum pump :
0~30Kpa
Air pressure :
0.5~1.0Mpa
Timing range :
0~99 hours 59 min
Description

IEC60529 Stainless Steel High Quality Sand And Dust Test Chamber

Product information:

The test device is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.

The test equipment uses intelligent and humanized PLC control system, the inner of the test equipment is made of high quality SUS304 stainless steel, the enclosure is A3 plate electrostatic spraying. And it also has large observation window and manual wiper device. The security protection is good.

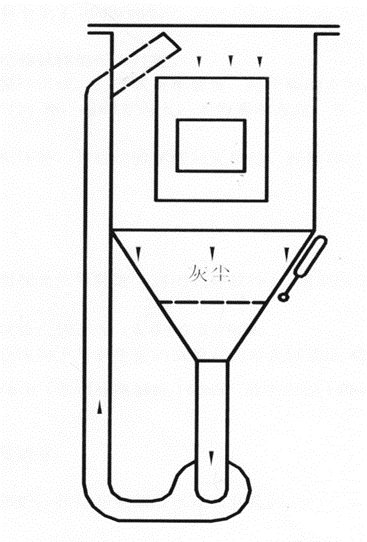

The sand and dust test chamber is designed and manufactured according to IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.

Technical Parameters:

Model

SN4412

Working size(mm)

L1000*W1000*H1000

Outer size (mm)

L1610*W1250*H1950

Main technical parameters

Temperature range

Room temperature

Test dust

dry talc which can go through the sieve of 75μm and the square sieve of wire diameter 50μm.

Test sand (or talc) dosage

2kg/m³

Vacuum pump

0~30Kpa

Air pressure

0.5~1.0Mpa

Sample rack height adjustment range

0~750MM

Timing range

0~99 hours 59 min

Timing accuracy

±1min

Load cycle control

0~99 hours 59 min

Ash blowing cycle control

1s~9999 min

Sand and dust concentration

2～4kg/m3

Air flow speed

≤2m/s

Model

SN4412

Working size(mm)

L1000*W1000*H1000

Outer size (mm)

L1610*W1250*H1950

Main technical parameters

Temperature range

Room temperature

Test dust

dry talc which can go through the sieve of 75μm and the square sieve of wire diameter 50μm.

Test sand (or talc) dosage

2kg/m³

Vacuum pump

0~30Kpa

Air pressure

0.5~1.0Mpa

Sample rack height adjustment range

0~750MM

Timing range

0~99 hours 59 min

Timing accuracy

±1min

Load cycle control

0~99 hours 59 min

Ash blowing cycle control

1s~9999 min

Sand and dust concentration

2～4kg/m3

Air flow speed

≤2m/s

Product main configuration:

Device Name

Dust and Sand Test Chamber

Main configuration

Cabinet

Enclosure material

A3 plate electrostatic spraying

Inner material

SUS304B Stainless steel

Lead hole

The sample can be external power supply through this hole

Observation window

large observation window in the middle of the door

Electrical control system

Controller

PLC Control:

A. blowing dust time (stop, blowing) can be adjusted

B. Cycle: arbitrary adjustable

C. Preset test time: 0.1H-9999.9H arbitrary adjustable

D. Power: On-off- On

E. There are accumulating function and power-off protection function

Vacuum system

Equipped with a vacuum pump, pressure gauge, air filter, pressure regulator, connecting pipe

Security

Protection

Device

Power overload, short-circuit protection

Ground Protection

Voltage Protection

Motor phase loss protection

Alarm beep prompt

Power Supply

Three phase 380V, 50Hz,3KW
