IEC60529:2013 High Quality IPX3~4 Oscillating Tubes Test System

Product information:

IPX3~4 oscillating tubes test system is designed and manufactured according to IEC60529:2013. It is used for testing the IPX3/IPX4 waterproof level of electrical and electronic products.

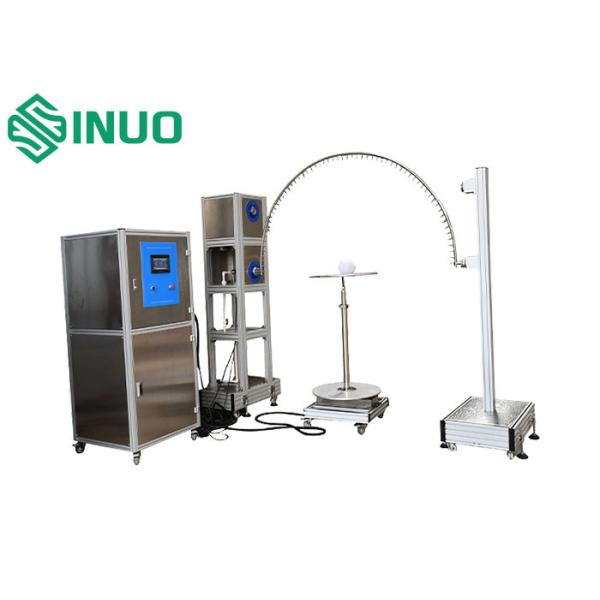

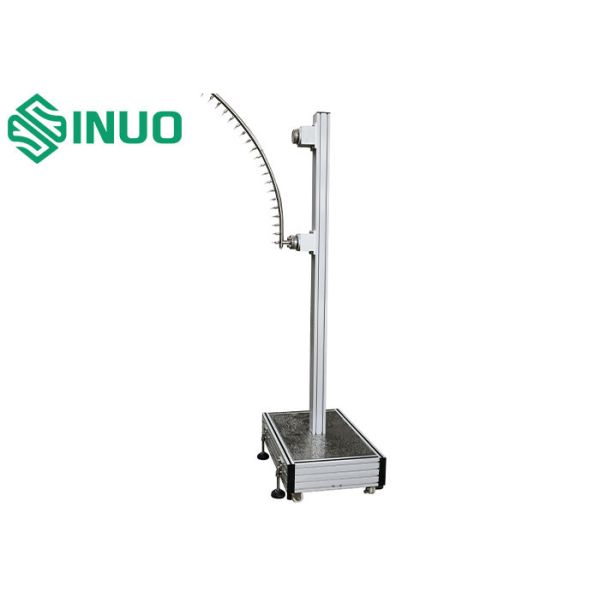

The complete set of IPX3~4 oscillating tubes test system is composed of one set of oscillating tubes swing device, one full set of oscillating tubes of R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm, a turntable, and an intelligent water supply and control cabinet.

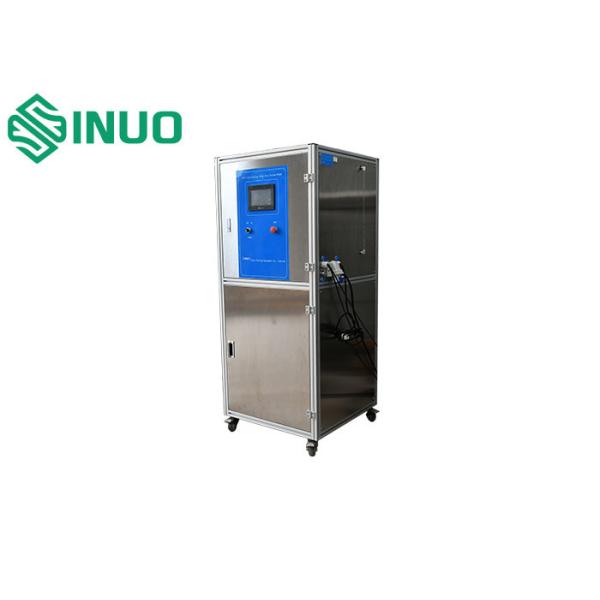

The intelligent water supply and control cabinet is composed of a water supply tank, a water pump, and a control system. The test water supply flow is controlled by a PLC, a frequency converter, and a flow meter.


Technical parameters:

No.

Item

parameters

1

Water supply

Water flow rate＞10L/min±5% clean water without inclusion.
This device is equipped with clean water filtration unit

2

The size of the oscillating tube

Coming with R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel

3

Needle hole

Φ0.4mm

4

Included angle of two holes

IPX3:120°; IPX4:180°

5

Oscillating tube swing angle

Max. ±175° can be preset
(Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)

6

Raining speed

IPX3:4s/time (2×120°);
IPX4:12s/time (2×360°);

7

Water flow

Can be set according to the size of the oscillating and the number of the pin holes (0.07 L/minX per hole)

8

Testing time

1-99999S can be preset

9

Pressure gauge

0~0.25MPa

10

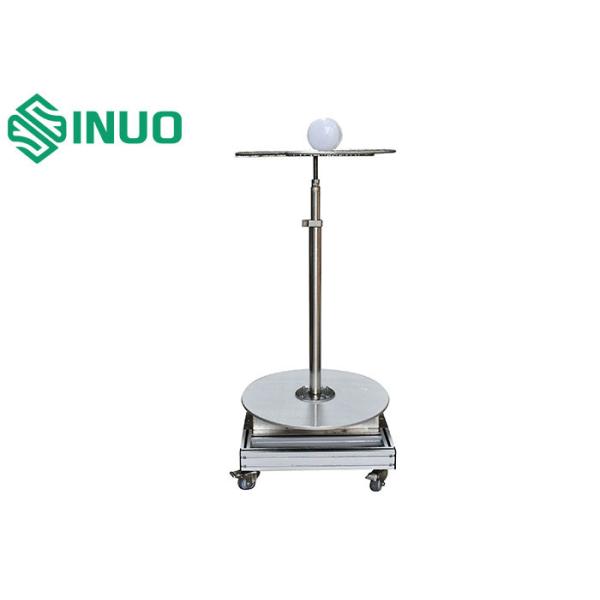

Turntable

Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs

11

Site requirements

Dedicated IP waterproof test room, the ground should be flat with illumination.
10A waterproof leakage switch (or socket) used for equipment. With good function of inflow and drainage.
Ground installation.

12

Electrical control

PLC & touch screen

13

Power supply for this equipment

AC 380V, 50Hz, 4KW

14Power supply for sampleAC220V, 10A
