IEC 60079-0 2017 Vertical Impact Test Device For Explosion-Proof Products
IEC 60079-0 2017 Vertical Impact Test Device For Explosion-Proof Products
IEC 60079-0 2017 Vertical Impact Test Device For Explosion-Proof Products
IEC 60079-0 2017 Vertical Impact Test Device For Explosion-Proof Products
IEC 60079-0 2017 Vertical Impact Test Device For Explosion-Proof Products
IEC 60079-0 2017 Vertical Impact Test Device For Explosion-Proof Products
IEC 60079-0 2017 Vertical Impact Test Device For Explosion-Proof Products
IEC 60079-0 2017 Vertical Impact Test Device For Explosion-Proof Products
Specifications
Brand Name :
Sinuo
Model Number :
SN2206C
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
20 Days
Packaging Details :
Plywood
Applied Standards :
IEC 60079-0：2017
Applied Sample :
Explosion-proof products
Impact Element :
Φ25mm±0.05mm, 1 kg
Impact Energy :
According to height: E=G=mgh
Impact Height :
100-2000mm, adjustable
Release Method :
Electromagnet release
Base Plate :
Steel plate 1000mm×1000mm
Fixture :
Pressing block 2 pcs
Description

IEC 60079-0: 2017 Vertical Impact Test Device For Explosion-Proof Products

Product Information For Vertical Impact Test Device:

Sample and restrictions: Cable entries for explosion-proof products.

Test purpose: It is used to test the impact resistance of the cable entry device of the explosion-proof product and evaluate the impact resistance of the product.

Test principle: According to the test Ehc: vertical drop hammer, the Φ25mm impact element with a weight of 1kg freely falls through the conduit at a certain height, hits the sample in the vertical direction, and through the conversion of gravitational potential energy to kinetic energy, the purpose of impact testing on the sample is achieved.

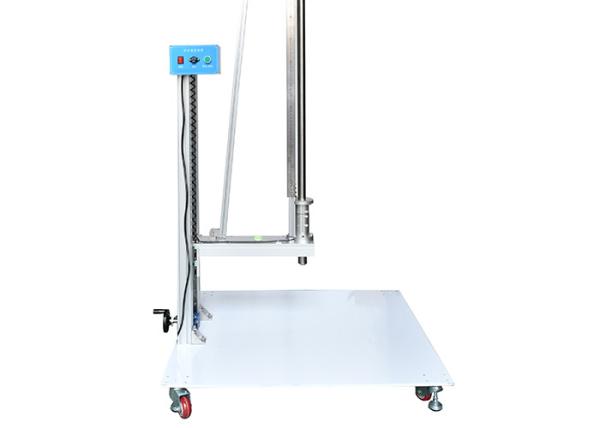

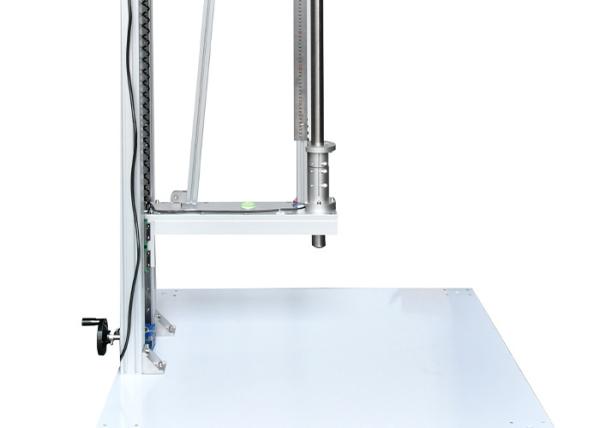

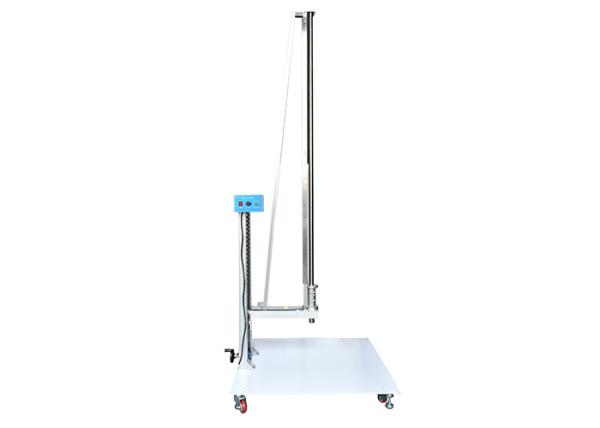

Equipment structure and features: beam-type frame, manually move the hammer head to the release position, the electromagnet releases the impact element, and the drop impact height is fixed through the catheter

Technical Parameters For Vertical Impact Test Device:

Impact energy/J Calculated according to height: E=G=mgh
Impact element

The front end is a hard hemisphere (Φ25mm±0.05mm), 1 kg
Catheter With gap between impact element
Impact height 100-2000mm, manually adjustable
Release method Electromagnet release
Base plate Steel plate 1000mm×1000mm
Fixture Fixture pressing block 2 pcs

IEC 60079-0 2017 Vertical Impact Test Device For Explosion-Proof Products

IEC 60079-0 2017 Vertical Impact Test Device For Explosion-Proof Products
