IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors
IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors
IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors
IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors
IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors
IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors
IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors
IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors
Specifications
Brand Name :
Sinuo
Model Number :
SN1401
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 days
Packaging Details :
Plywood
Test stations :
2 independent stations
Control method :
PLC intelligent control
Drive mode :
Servo motor drive
Speed :
0-360°/s(1.5m/s)
Angle :
0-130°
Force :
0-999999 times
Load voltage :
0-250V
Clamping method :
Pneumatic
Description

IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors

Product Information For Washing Machine Door Endurance Testing Equipment:

Standard: Complies with clause 18.101 of IEC60335-2-7:2016.

Uses: It is used to test the durability of the interlock device of the washing machine door or lid, and the force test when the interlock device operates to verify the reliability of the interlock device. It is also used to assist the repeated opening and closing of the door or lid of the washing machine other tests.

Test samples: electric tumble dryer, electric washing machine (including impeller and tumbler).

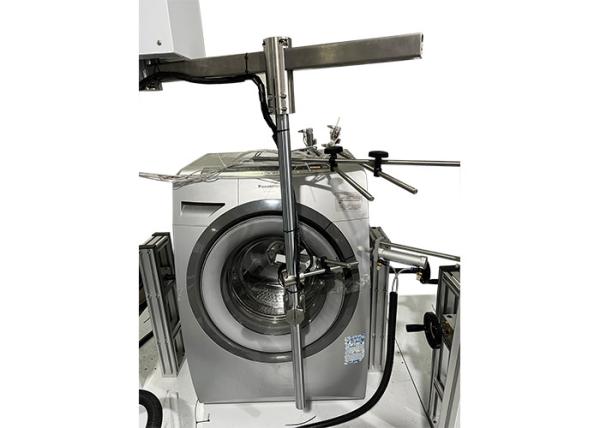

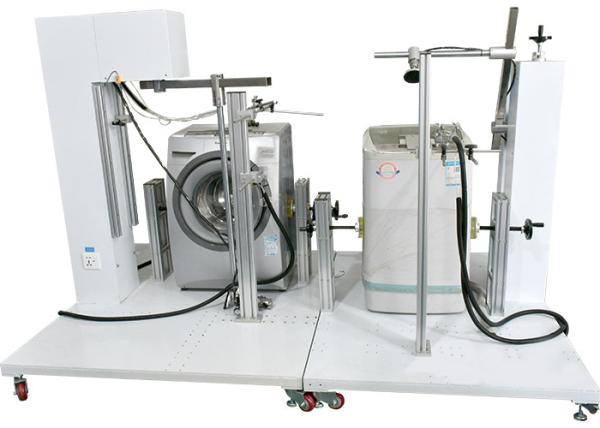

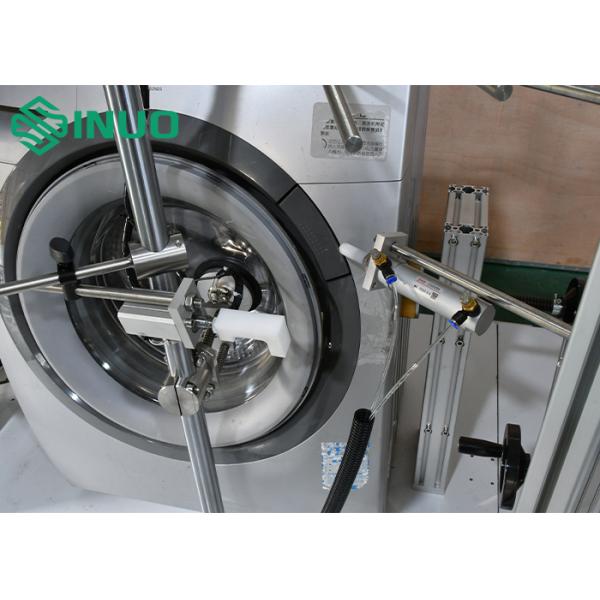

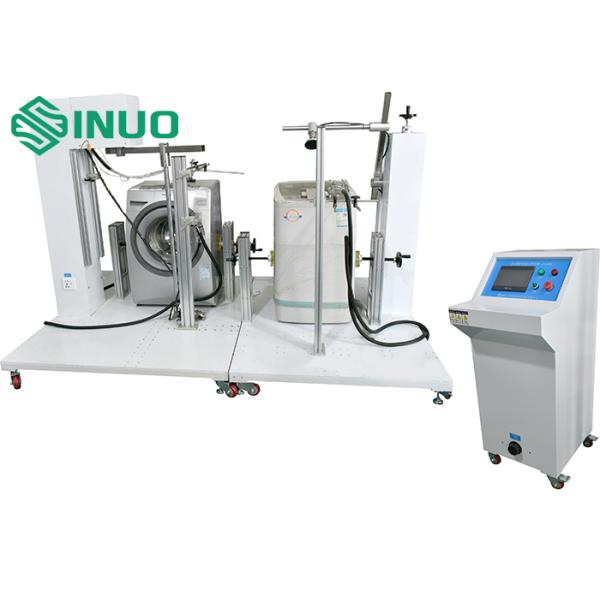

Structure: The equipment consists of electrical control cabinet (including load voltage regulating device), rack and manipulator. There are two test stations, one is a drum washing machine with a door, and the other is a washing machine with a lid top, and the two workstations can conduct tests independently.

Equipment size: about: (W*D*H) 2500 * 1200 * 1500 (mm)

Equipment weight: 280kg

Technical Parameters For Washing Machine Door Endurance Testing Equipment:

Power supply AC220V/ 60 Hz, power 3KW (can match customer power supply requirements)

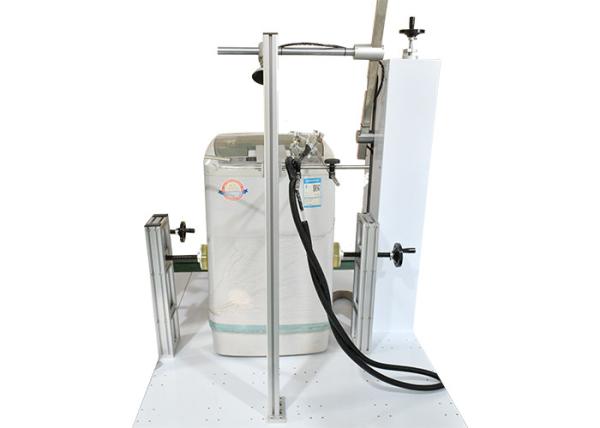

Test station 2 independent workstations, one for front-load washing machine with door and another for top-load washing machine with lid
Control method PLC intelligent integrated control, 7-inch touch interface operation
Drive mode Servo motor drive
Sample clamping method Vacuum Suction Cup, Pneumatic
Door/cover opening or closing speed 0-360°/s(1.5m/s), can be preset
Door/cover opening or closing angle 0-130°, can be preset
Test time 0-999999 times, can be preset
Door/cover opening or closing force 0-200N, can be preset (the opening force value is only used for the pull test when the interlock device starts to lock the door)
Load voltage 0-250V, adjustable
Auxiliary action mechanism Washing machine start button pressing cylinder (can be customized)
Test content

Endurance test of front-loading washing machine door interlock (IEC 60335-2-7 Clause 18.101)

Endurance test for top interlock of washing machine lid (IEC 60335-2-7 clause 18.101)
Safety protection
Power Leakage protection, overload and short circuit protection
Motor Overload, short circuit protection
